Demonstration Case
14 • Crestron Demonstration Case: C2N-DEMO Lighting Case
Chandelier, Bath Vanity, Bath Downlights, Breakfast Chandelier, Dining Room
Lights, Hall 1 Lights, Hall 2 Lights, Front Porch]
When this button is pressed, it turns all loads to a preset level over a defined period.
If it is past sunset, the front porch light illuminates as well.

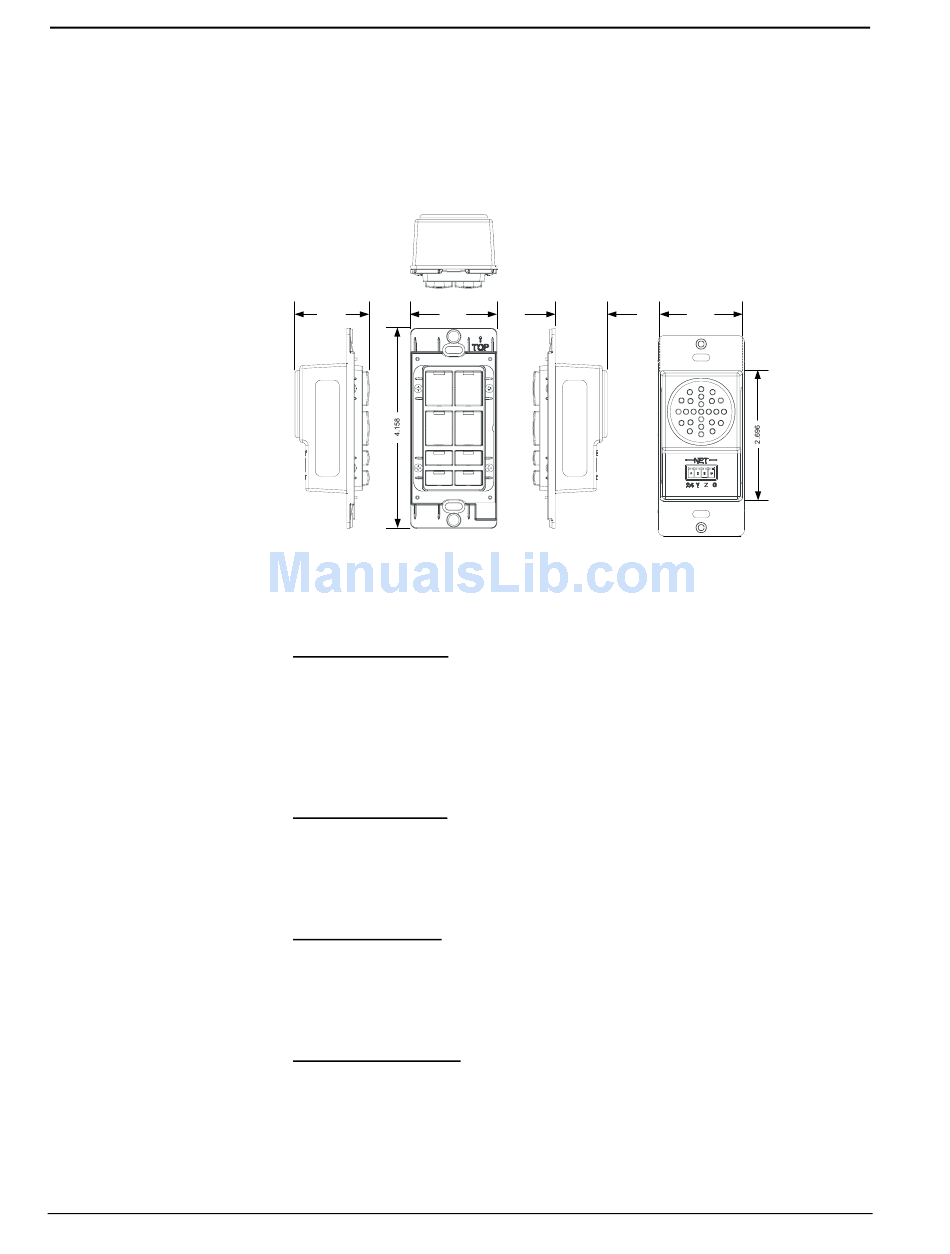

C2N-DB8 (Entry)
1.532 1.788
HOME AWAY
PATH
PORCH
MUSIC VOL +
SRC VOL -
This interface was programmed as the primary control point for the entry. The entire
virtual house can be monitored from the web page project associated with this
system.
Button 1 (HOME)
[BM = Single Press, FB = On when ALL lights are at PRESET LEVEL, Loads
= Family Front Downlights, Family Rear Downlights, Family Lamp, Entry
Chandelier, Kitchen Downlights, Kitchen Pendants, Breakfast Chandelier,
Master Bed Lights, Master Bath Lights, Hall 1 Lights, Hall 2 Lights]
When this button is pressed, it turns all loads to a preset level over a defined period.
Button 2 (AWAY)
[BM = Single Press, FB = On when ALL lights are at PRESET LEVEL, Loads
= ALL LOADS]
When this button is pressed, it turns all loads off over a defined period.
Button 3 (PATH)
[BM = Toggle / Learnable, FB = Toggle, Loads = Hall 1 Lights, Hall 2 Lights,
Kitchen Downlights, Kitchen Pendants, Entry Chandelier]
On press 1, this button turns the loads to a preset level and then off again on press 2.
Button 4 (PORCH)
[BM = Toggle + Dim, FB = Toggle, Loads = Porch Downlights]
On press 1, this button turns the load to a preset level and then off again on press 2.
