Button 5 (MUSIC)
This button toggles the audio system in the common areas of the virtual home on and
off. The feedback LED illuminates when the audio system is active.
Button 6 (VOL +)
This button increases the volume level of the virtual audio system. The feedback
LED illuminates only while the button is pressed.
Button 7 (SRC)
This button cycles through the various virtual audio sources. The feedback LED
illuminates only while the button is pressed. Audio WAV files are triggered with the
selection of each new source. This demonstrates how even a simple interface such a
keypad can give detailed feedback information.
Button 8 (VOL -)
This button decreases the volume level of the virtual audio system. The feedback
LED illuminates only while the button is pressed.

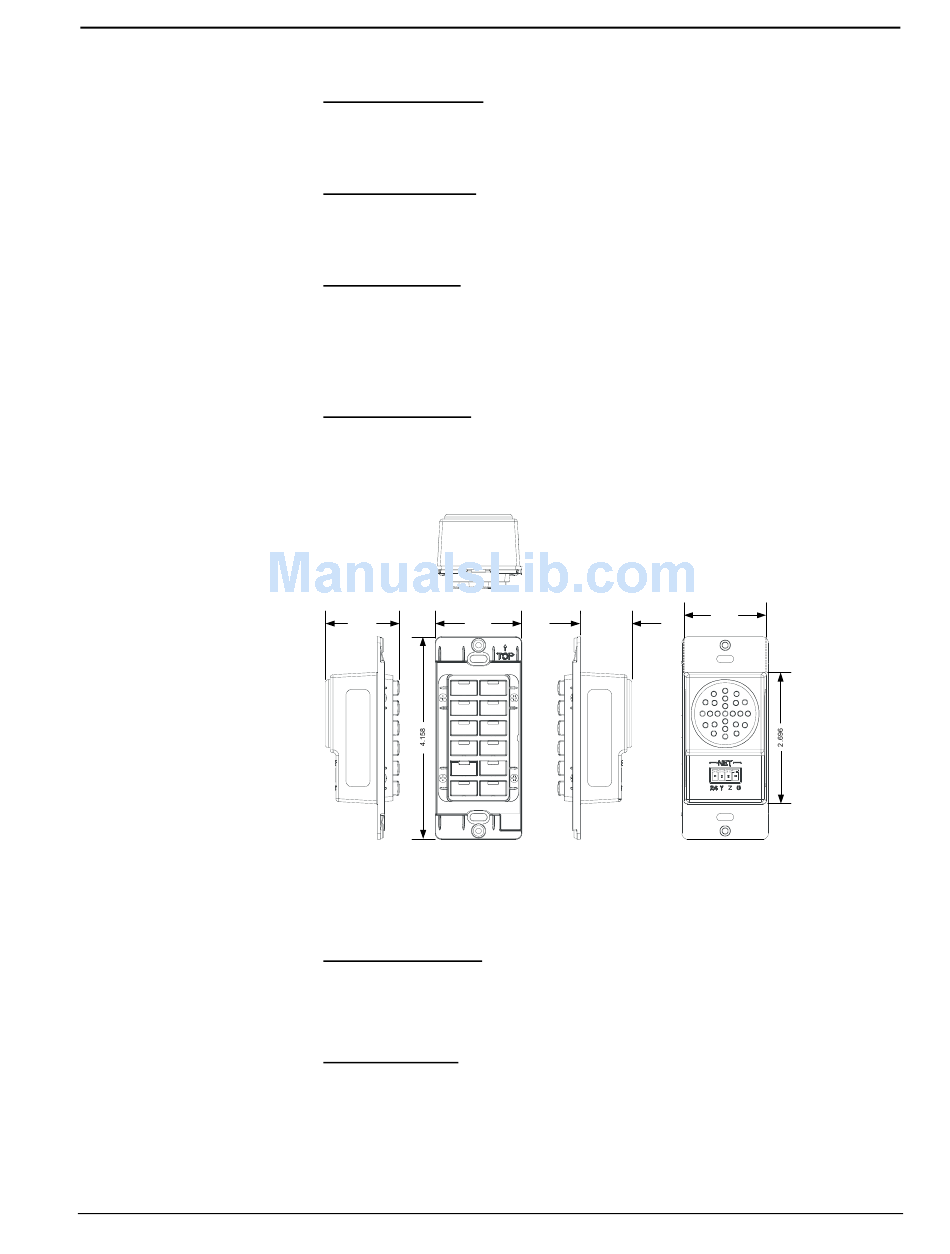

C2N-DB12 (Entry)
1.788
1.532
DOWN FAN
LAMP RAISE
PATH LOWER
XM VOL +
MP3 VOL -
CD OFF
This interface was programmed as the primary control point for the entry. The entire
virtual house can be monitored from the web page project associated with this
system.
Button 1 (DOWN)
[BM = Toggle + Dim, FB = Toggle, Loads = Downlights]
On press 1, this button turns the load to a preset level and then off again on press 2.
Button 2 (FAN)
This button turns on the fan and selects various speeds. The first press sets the fan to
speed 4, the second press to speed 3, then to speed 2, speed 1, and finally back to the
off state. The feedback LED illuminates whenever the fan is on.
