LDC450B Large Diameter Cleaver
3.
Select the Blade Service tool function in the Handset Controller. This function will move the Cleave Blade
forward to the cleave position.

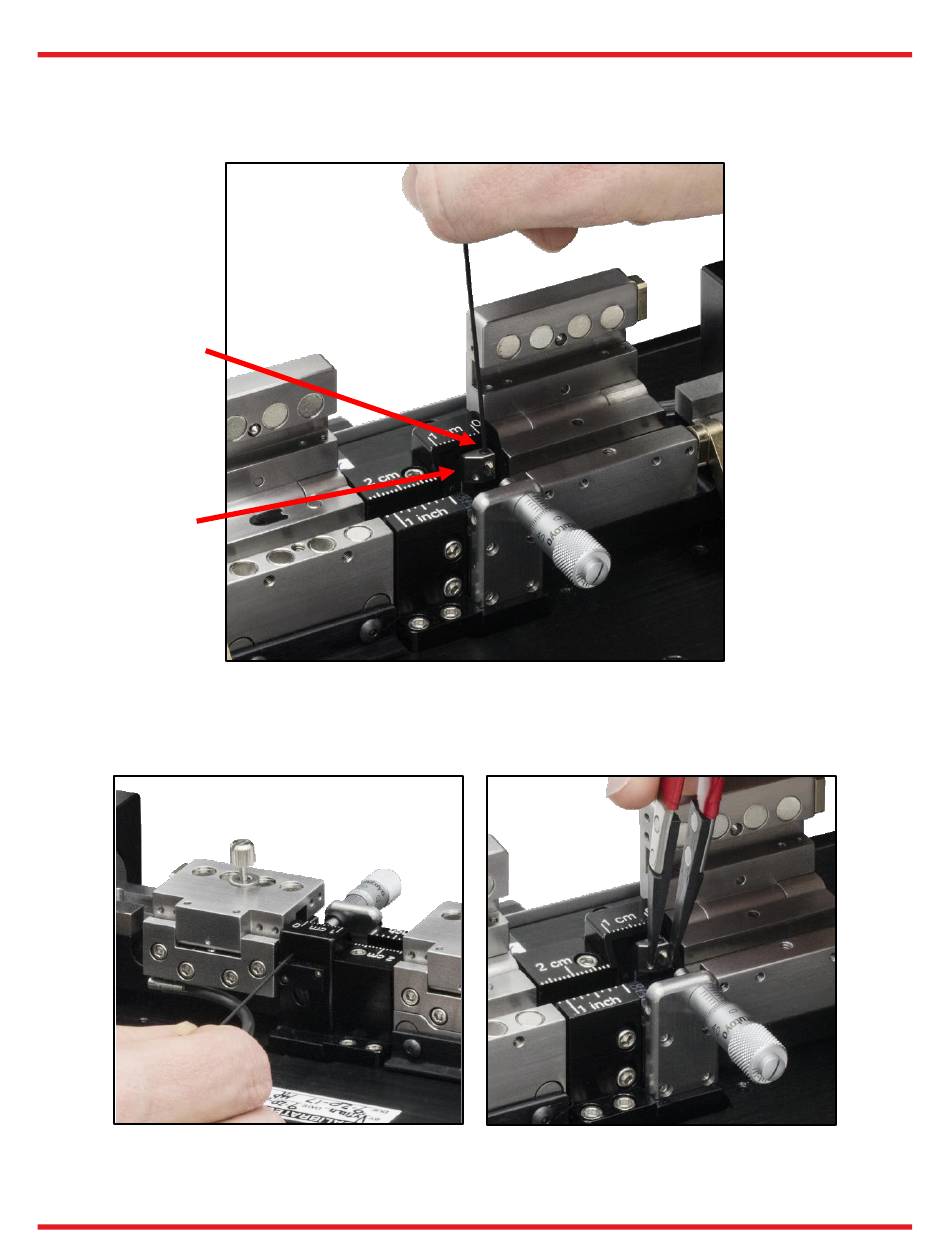

Loosen the set screw in the top of the Cleave Arm one full turn counter-clockwise, using the 0.035" hex key
4.
provided.
Set Screw
Cleave Arm
Insert the 0.035" hex key through the access hole in the back of the Cleave Blade Housing and start pushing
5.
the Cleave Blade forwards. Remove the Cleave Blade with tweezers.
Rev A, July 28, 2020
Figure 42
Set Screw and Cleave Arm
Figure 43
Replacing the Cleave Blade
Chapter 8: Maintenance
Page 41
