Maintenance
Chapter 8
These cleavers are designed to provide trouble-free operation in a production environment provided that planned
maintenance is performed as described below.
Planned Maintenance Schedule
•
Inspect and clean the Fiber Holding Blocks every shift.
•
Inspect and clean the Cleave Blade every day.
•
Reposition the Cleave Blade as needed (roughly every month).
•
Replace Cleave Blade as needed (roughly every six months).
•
Return the unit to Vytran for recalibration as needed (roughly once a year).
8.1.

Inspecting the Fiber Holding Blocks

The Fiber Holding Blocks (FHB's) should be inspected daily for debris and/or damage that may prevent the lids
from closing properly and the fiber from being fully clamped. It is particularly important to make sure that the bottom
insert V-groove surfaces and the top insert clamping surfaces are free of debris and oils. This will help to ensure
that the fiber will not break or slip during tensioning. Remove debris using a nylon brush as shown below. Brush
from the inside to the outside of the unit as shown (away from the Cleave Blade) so as to avoid getting debris inside
the cleave assembly.
To remove oils from the inserts, use a cotton-tipped swab wetted with acetone or alcohol.
Figure 37
4
Maintenance operation can be performed by the operator.
5
Maintenance operation can only be performed by trained maintenance personnel.
6
Recalibration can only be performed by a Vytran-certified technician.
Rev A, July 28, 2020

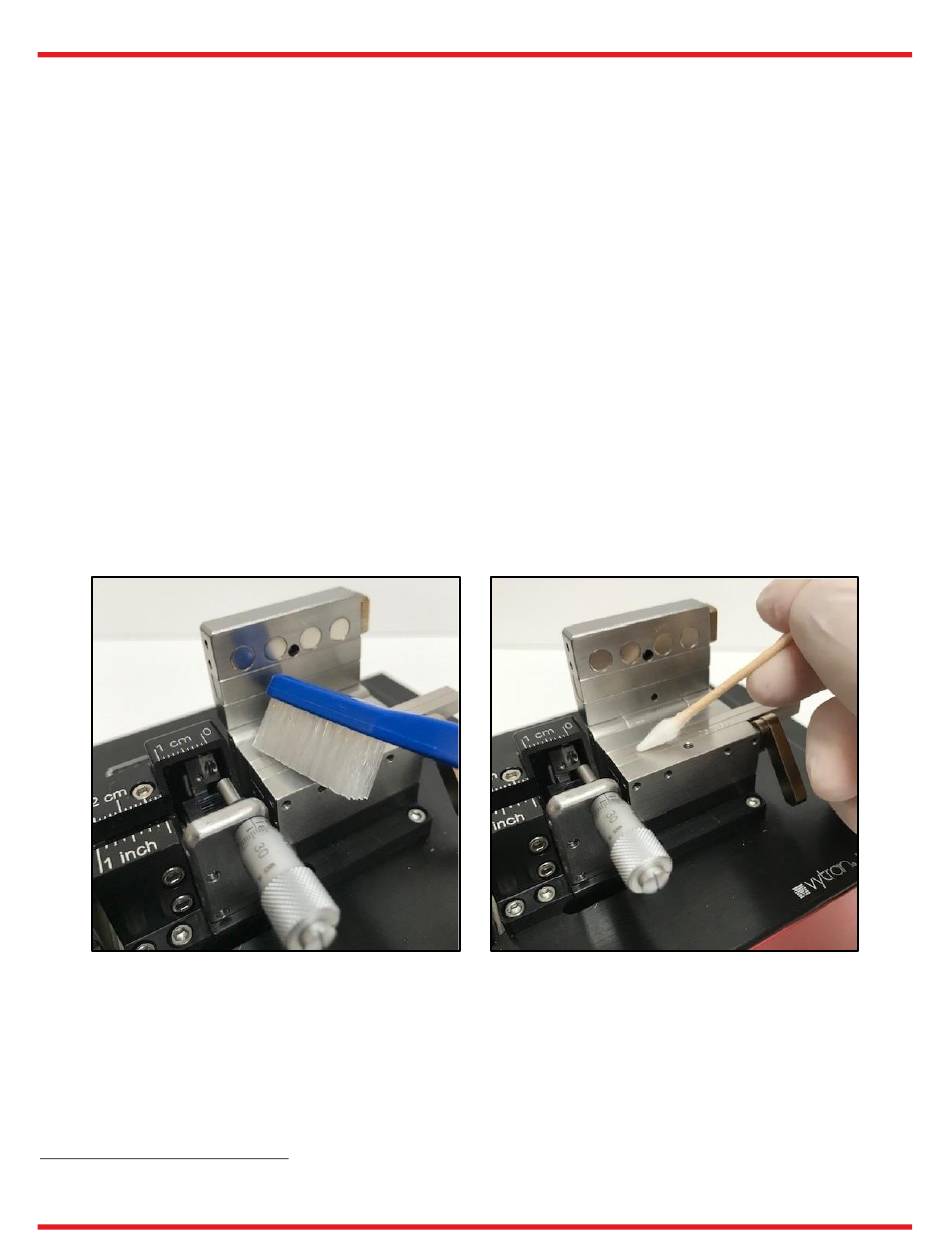

Removing Debris from the Fiber Holding Blocks and Oils from the Inserts
