LDC450B Large Diameter Cleaver Chapter 7: Using the Handset to Control the LDC450B

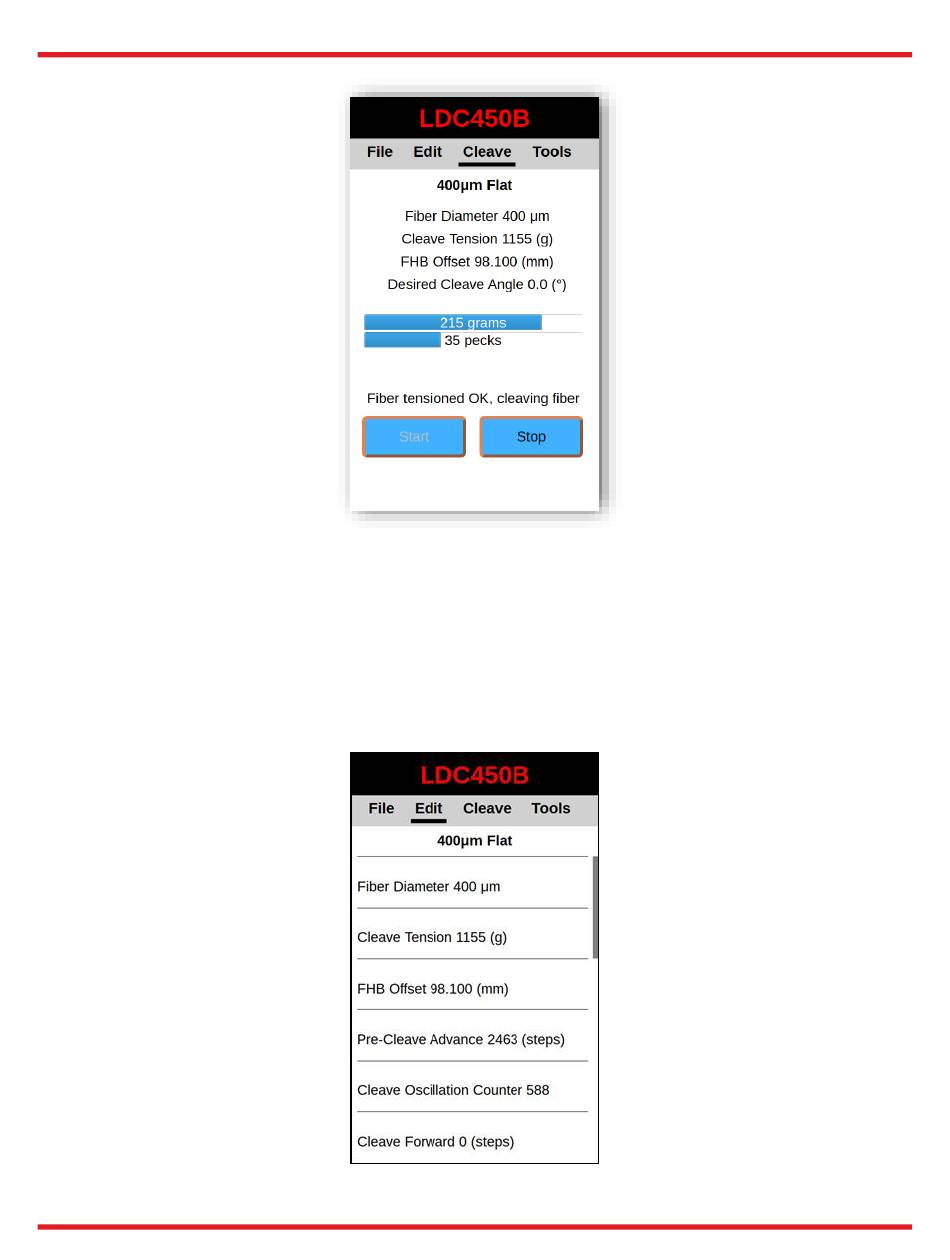

Figure 22 Cleave Screen showing Cleave Status
7.3.

Edit

Swiping right or pressing on Edit will show the Edit Screen. The Edit Screen gives access to all the parameters that
control the Cleave Process. The LDC450B is designed to provide easy operation when performing simple cleaves
but still support customized processing for more complicated cleaves involving specialty fibers. A complete list of
modifiable parameters is listed below. The majority of users will only need to enter the Fiber Diameter (cladding),
Cleave Tension, and Pre-Cleave Advance while leaving the rest of the parameters set to their default values.
Figure 23 Edit Screen
Rev A, July 28, 2020 Page 25
