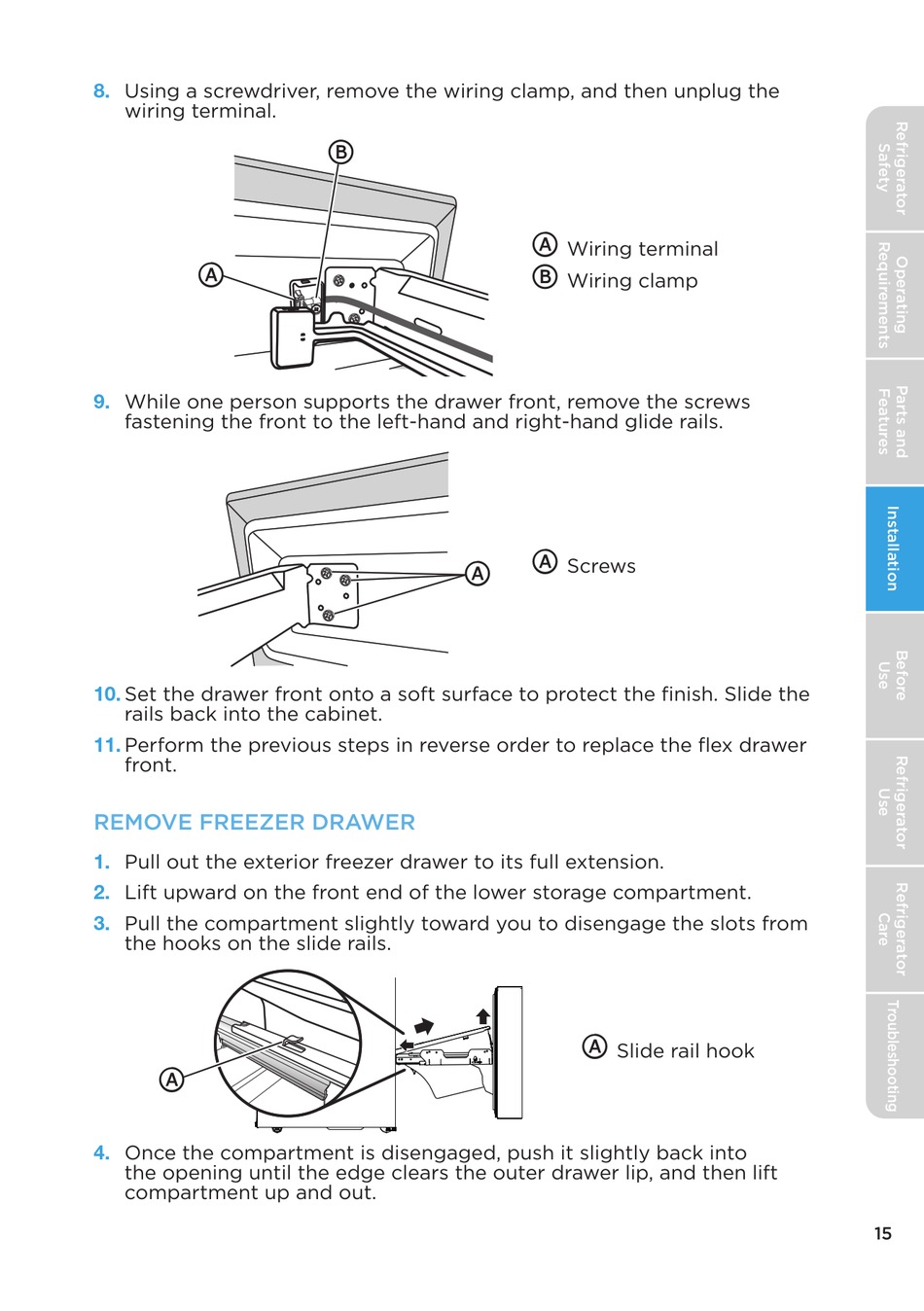

Midea MRQ22D7AST User Manual page 15

8.
Using a screwdriver, remove the wiring clamp, and then unplug the
wiring terminal.
a
9.
While one person supports the drawer front, remove the screws
fastening the front to the left-hand and right-hand glide rails.
10.
Set the drawer front onto a soft surface to protect the finish. Slide the
rails back into the cabinet.
11.
Perform the previous steps in reverse order to replace the flex drawer
front.
REMOVE FREEZER DRAWER
1.
Pull out the exterior freezer drawer to its full extension.
2.
Lift upward on the front end of the lower storage compartment.
3.
Pull the compartment slightly toward you to disengage the slots from
the hooks on the slide rails.
a
4.
Once the compartment is disengaged, push it slightly back into
the opening until the edge clears the outer drawer lip, and then lift
compartment up and out.
b
a
a
Wiring terminal
b
Wiring clamp
a
Screws
a
Slide rail hook
15
