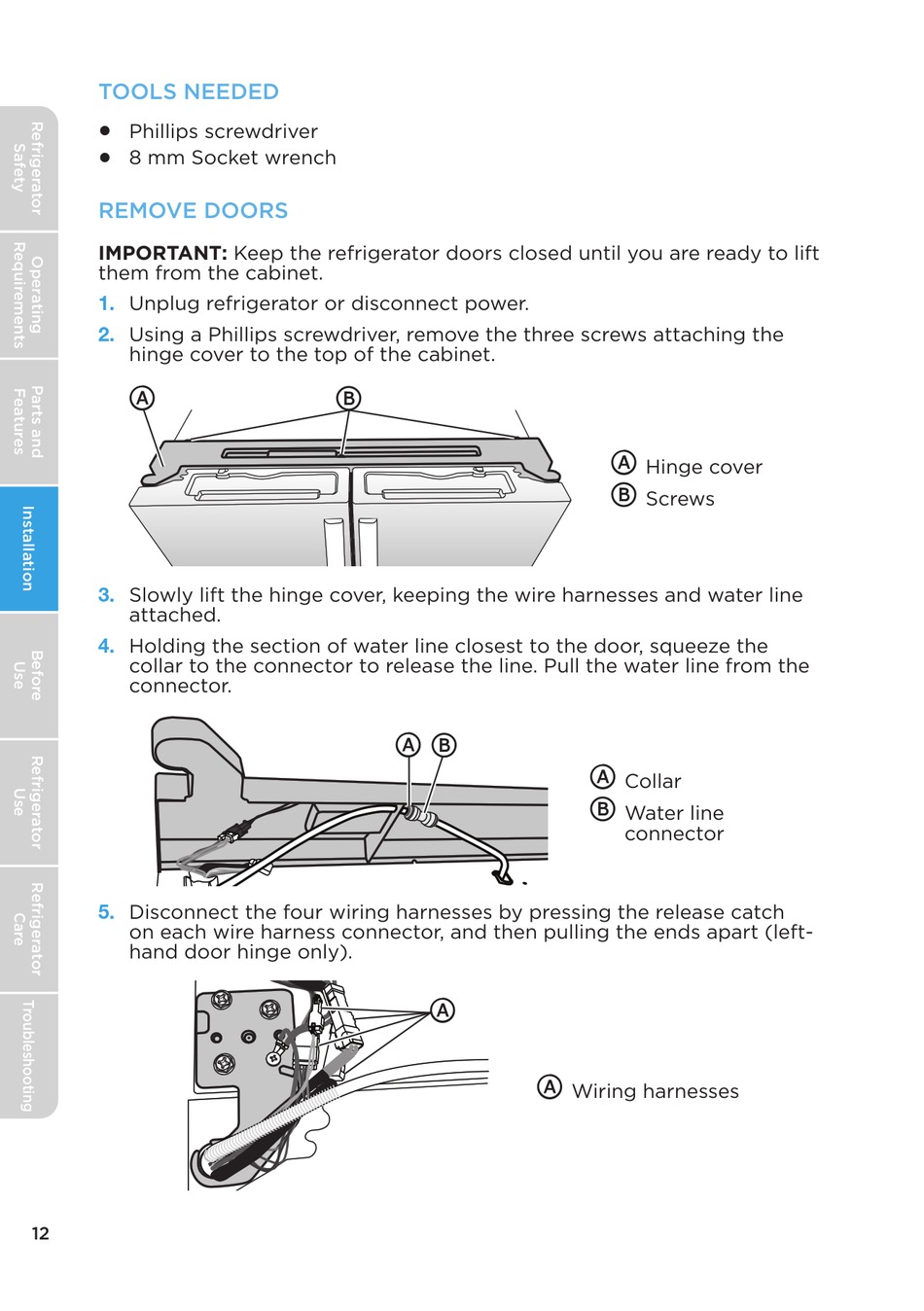

Midea MRQ22D7AST User Manual page 12

TOOLS NEEDED
•
Phillips screwdriver
•
8 mm Socket wrench
REMOVE DOORS
IMPORTANT: Keep the refrigerator doors closed until you are ready to lift
them from the cabinet.
1.
Unplug refrigerator or disconnect power.
2.
Using a Phillips screwdriver, remove the three screws attaching the
hinge cover to the top of the cabinet.
a
3.
Slowly lift the hinge cover, keeping the wire harnesses and water line
attached.
4.
Holding the section of water line closest to the door, squeeze the
collar to the connector to release the line. Pull the water line from the
connector.
5.
Disconnect the four wiring harnesses by pressing the release catch
on each wire harness connector, and then pulling the ends apart (left-
hand door hinge only).
12
b
a b
a
a
Hinge cover
b
Screws
a
Collar
b
Water line
connector
a
Wiring harnesses
