3
Connect female Quadlock connector of harness RLC-POR03-2 to the male Quadlock
connector of the head unit.
3.2.

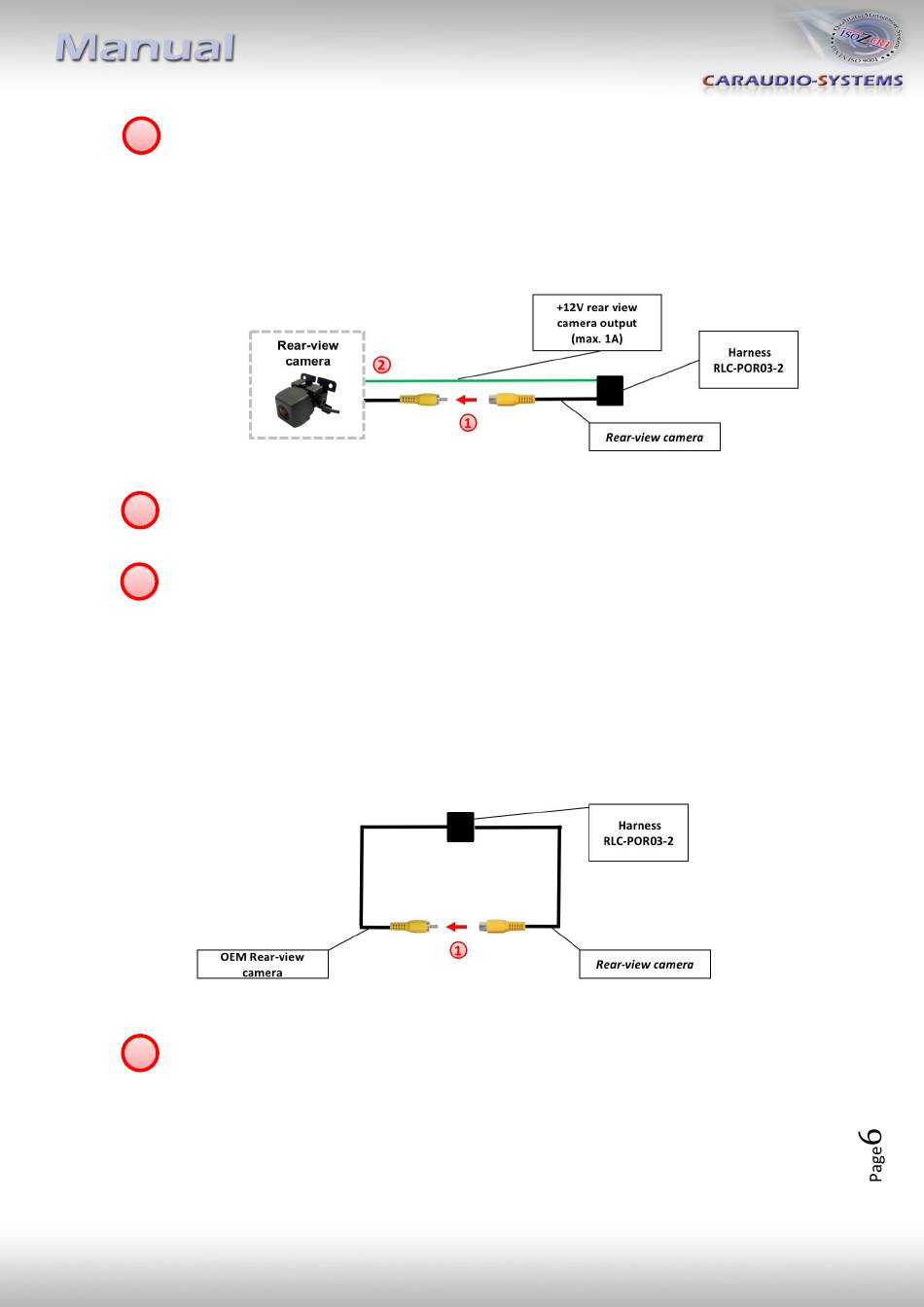

Connections to after market rear-view camera

1
Connect the video RCA of the rear-view camera to the female RCA connector with the
label „Rear-view camera" of RLC-POR03-2 harness.
Connect the green cable of harness RLC-POR03 to the camera power supply (+12V
2
max 1A). The green cable is high when reverse gear is engaged (if ignition is off, too).
The power will be deactivated from a speed of 20 km/h.
Note: Only compatible with NTSC-cameras.
3.3.

Connections to OEM rear-view camera

1
Connect the male RCA plug to the female RCA connector with the label „Rear-view
camera" from RLC-POR03-2 harness.
Version 17.03.2021 RL-PCM3-2-TF
