3.2.3. Configurable trigger outputs

+12V switching
outputs
1
Power Out 1 (max. 1A)
Power Out 2 (max. 1A)
1

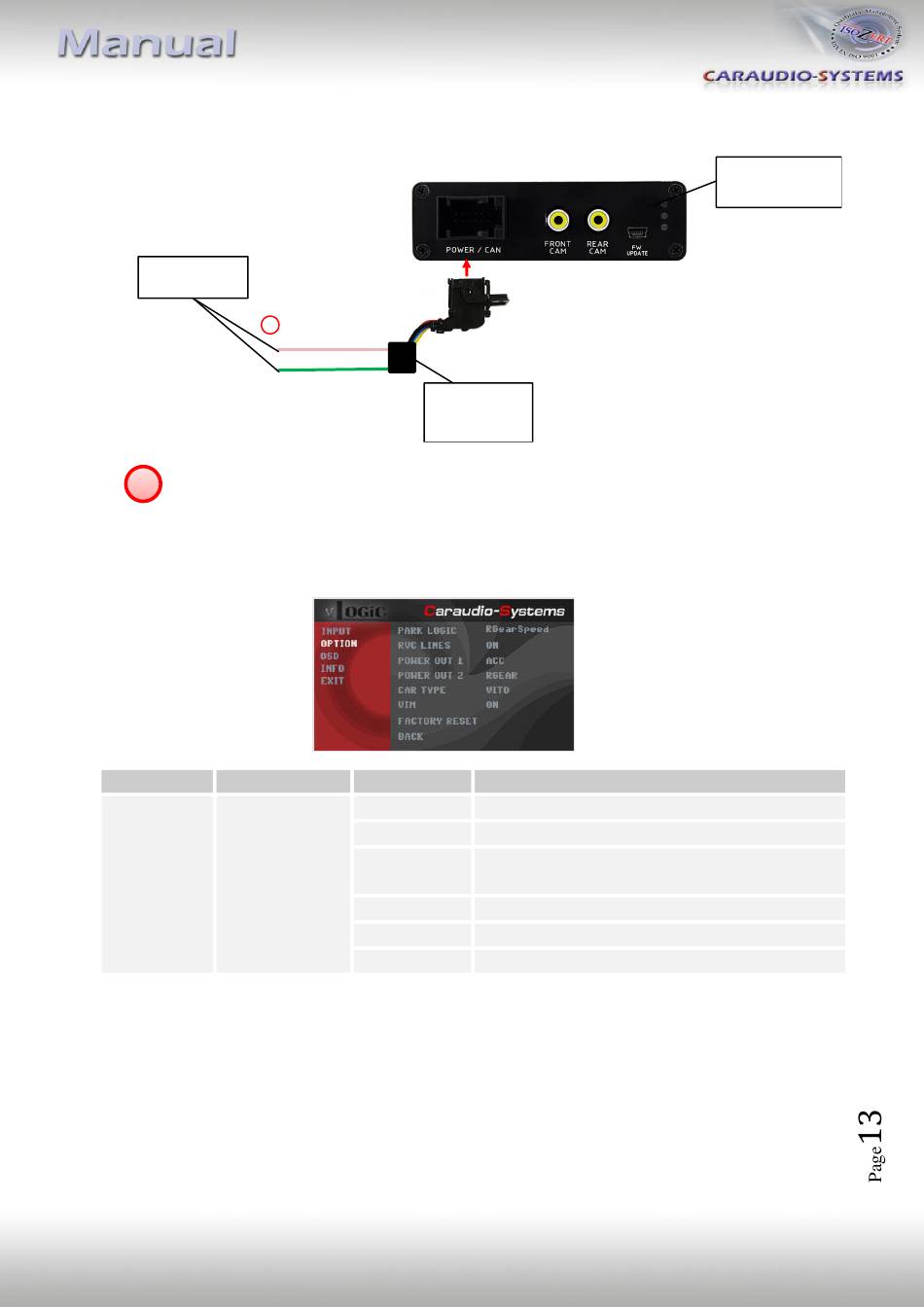

You can configure the both +12V trigger outputs separately. The pink wire is POWER
OUT 1 and the green wire is POWER OUT 2.
Note: You can configure the both trigger outputs in the OSD-menu OPTION separately
(Operation of the OSD: see chapter "OSD-Operation").
OSD-menu Menu item
POWER OUT1
(pink)
OPTION
POWER OUT2
(green)
Version 18.11.2016
V5C-UNI01
harness
Setting Explication
CAN +12V when the interface is on (red LED on)
ACC +12V when ignition is on
+12V when the rear-view camera input is
CAM
activated
RGEAR +12V when reverse gear is engaged
AVS +12V when interface video-source is active
OFF Trigger output deactivated
Interface-box
V5C-M613
FRONT
V5-NTG46
