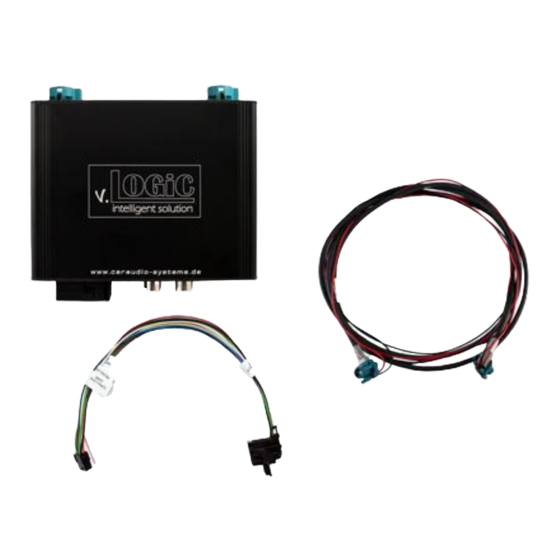

- Page 1 Intelligent Solution Interface V5-NBT compatible with the F-series BMW with navigation system or radio and 6.5”, 7”, 8.8” or 10.25” monitor with 4+2pin HSD2 LVDS connector Version 21.12.2016 V5-NBT...
- Page 2 Picture-in-picture mode combining after-market rear-view and front camera picture(s) with factory parking sensor graphics Interactive lane lines Compatible with all factory video accessories (e.g. rear-view camera, Top-View, nightvison, DVD-changer, TV-tuner) USB update-port for software-updates by consumer Version 21.12.2016 V5-NBT...
-
Page 3: Table Of Contents
OSD – Operation 4.1.1.1. iDrive High 4.1.1.2. iDrive Low 4.1.2. iDrive selection 4.1.3. OSD – Additional setting options 4.2. Video-in-motion function 4.3. Selecting the interface as current video source 5. Specifications 6. Connections (interface-box) 7. Technical support Version 21.12.2016 V5-NBT... - Page 4 To receive a free update, the interface must be sent in at own cost. Labor cost for and other expenses involved with the software-updates will not be refunded. Version 21.12.2016 V5-NBT...
-
Page 5: Prior To Installation
Check compatibility of vehicle and accessories Requirements Navigation F-series with navigation system or radio with 6.5”, 7”, 8.8“ or 10.25“ monitor with 4+2pin HSD2 LVDS connector Note ”PDC – picture in picture” and “interactive lane lines” function is not simultaneously usable Version 21.12.2016 V5-NBT... -
Page 6: Setting The Dip Switches Of The Interface-Box V5C-M637
No function 10.25“ monitor (ver.2) No function After each change of the dip switch settings you have to execute a power reset of the interface-box! 1.3. LED‘s of the interface-box V5C-M637 Valid input source CAN ok Power Version 21.12.2016 V5-NBT... -
Page 7: Connection Schema
2. Connection schema Quadlock male on rear site of the NBT unit Interface-box V5C-M637 FRONT +12V Quadlock female vehicle harness Masse CAN (2) Rear-view camera CAN (1) V5C-UNI01 harness Front camera +12V switching outputs Rear gear signal input (+12V) Version 21.12.2016 V5-NBT... - Page 8 Back of factory monitor LVDS cable CAB-HSD2-RR148 Interface-box V5C-M637 FRONT 4+2Pin HSD2 LVDS female vehicle harness Version 21.12.2016 V5-NBT...
-
Page 9: Installation
Head Unit Interface-box V5C-M637 FRONT +12V Quadlock female vehicle harness Ground CAN-HI (2) CAN-HI (1) CAN-LOW (2) CAN-LOW (1) V5C-UNI01 harness Cut off the 8 pin Molex connector from V5C-UNI01 harness (is not needed). Version 21.12.2016 V5-NBT... - Page 10 CAN HIGH Pin 11 - to the head-unit side ● Blue CAN LOW Pin 9 - to the head-unit side ● Green +12V power output ● Pink +12V power output Quadlock ● White Rear gear signal input (+12V) Version 21.12.2016 V5-NBT...
-
Page 11: Lvds Connection
4+2pin HSD2 LVDS connector (LVDS-IN) on the front of the interface-box V5C-M637. Connect the second female 4+2pin HSD2 LVDS connector of the LVDS cable CAB-HSD2-RR148 to the male 4+2pin HSD2 LVDS connector of the factory monitor. Version 21.12.2016 V5-NBT... -
Page 12: After-Market Front Camera
The pink wire of harness V5C-UNI01 can be used for +12V electric power supply (max. 1A) of the after-market front camera. Configure in the OSD- menu “OPTION”, menu item “POWER OUT 2” the designated electric power supply (see chapter “Configurable switching outputs”). Version 21.12.2016 V5-NBT... -
Page 13: Settings For Connecting An After-Market Front Camera
(e.g. radio). After deactivation you can’t enable the parking process again until the vehicle is diving faster than 20km/h, the ignition is switched off and on or the PDC will be disabled and enabled again, if existing. Version 21.12.2016 V5-NBT... -
Page 14: After-Market Rear-View Camera
The green wire of harness V5C-UNI01 can be used for +12V electric power supply (max. 1A) of the after-market rear-view camera. Configure in the OSD-menu “OPTION”, menu item “POWER OUT 2” the designated electric power supply (see chapter “Configurable switching outputs”). Version 21.12.2016 V5-NBT... -
Page 15: Settings For Connecting An After-Market Rear-View Camera
The interface turns off, if PDC or reverse gear INPUT is enabled and it displays factory rear-view camera and/or PDC-display For vehicles with PDC button. Enabled while OPTION PARK LOGIC parking process and up to 20 km/h or together with PDC if existing Version 21.12.2016 V5-NBT... -
Page 16: Configurable Trigger Outputs
+12V when ignition is on +12V when the rear-view camera input is POWER OUT1 activated (pink) OPTION POWER OUT2 RGEAR +12V when reverse gear is engaged (green) +12V when interface video-source is active (for external audio switch) Trigger putput deactivated Version 21.12.2016 V5-NBT... -
Page 17: Interactive Lane Lines
You can change the picture settings in the OSD-menu IMAGE (activation only from interface video level possible). ◦ Brightness ◦ Contrast ◦ Saturation ◦ Hue ◦ Sharpness Note: The picture settings will be retained for each AV-source separately. Version 21.12.2016 V5-NBT... -
Page 18: Operation
You can change the b asic configurations of the interface in the OSD (on screen display). 4.1.1. OSD – Operation You can control the OSD by iDrive. 4.1.1.1. iDrive High Options Options Back Long press = enter OSD Short press= leave OSD Options Version 21.12.2016 V5-NBT... -
Page 19: Idrive Low
OSD menu „OPTION“ – „IDRIVE“ is for setting the right iDrive control knob. OSD-menu Menu item Setting Explication Vehicles with iDrive Low control knob OPTION IDRIVE Vehicles with iDrive High control knob HIGH iDrive High iDrive Low Version 21.12.2016 V5-NBT... -
Page 20: Osd - Additional Setting Options
Resetting to factory settings 4.2. Video-in-motion function It is possible to activate and deactivate the video-in-motion in the OSD menu “OPTION” (Operation of the OSD: see chapter “OSD-Operation”). OSD-menu Menu item Setting Explication Video-in-motion activated OPTION Video-in-motion deactivated Version 21.12.2016 V5-NBT... -
Page 21: Selecting The Interface As Current Video Source
If all inputs are enabled the order is: … Inputs which are not enabled are skipped. The exiting of the video interface level is achieved by short press of BACK / RADIO / MENU / TEL / NAV button. Version 21.12.2016 V5-NBT... -
Page 22: Specifications
Front camera Female input update-connector Mini USB 7. Technical Support Caraudio-Systems Vertriebs GmbH manufacturer/distribution In den Fuchslöchern 3 D-67240 Bobenheim-Roxheim email support@caraudio-systems.de Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ® of their corresponding legal owners.
