Caraudio-Systems L3-LR17 Manual

Video-inserter for one rear-view camera and two additional video inputs compatible with land rover and jaguar vehicles with incontrol touch pro duo infotainment and 10.2 inch monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

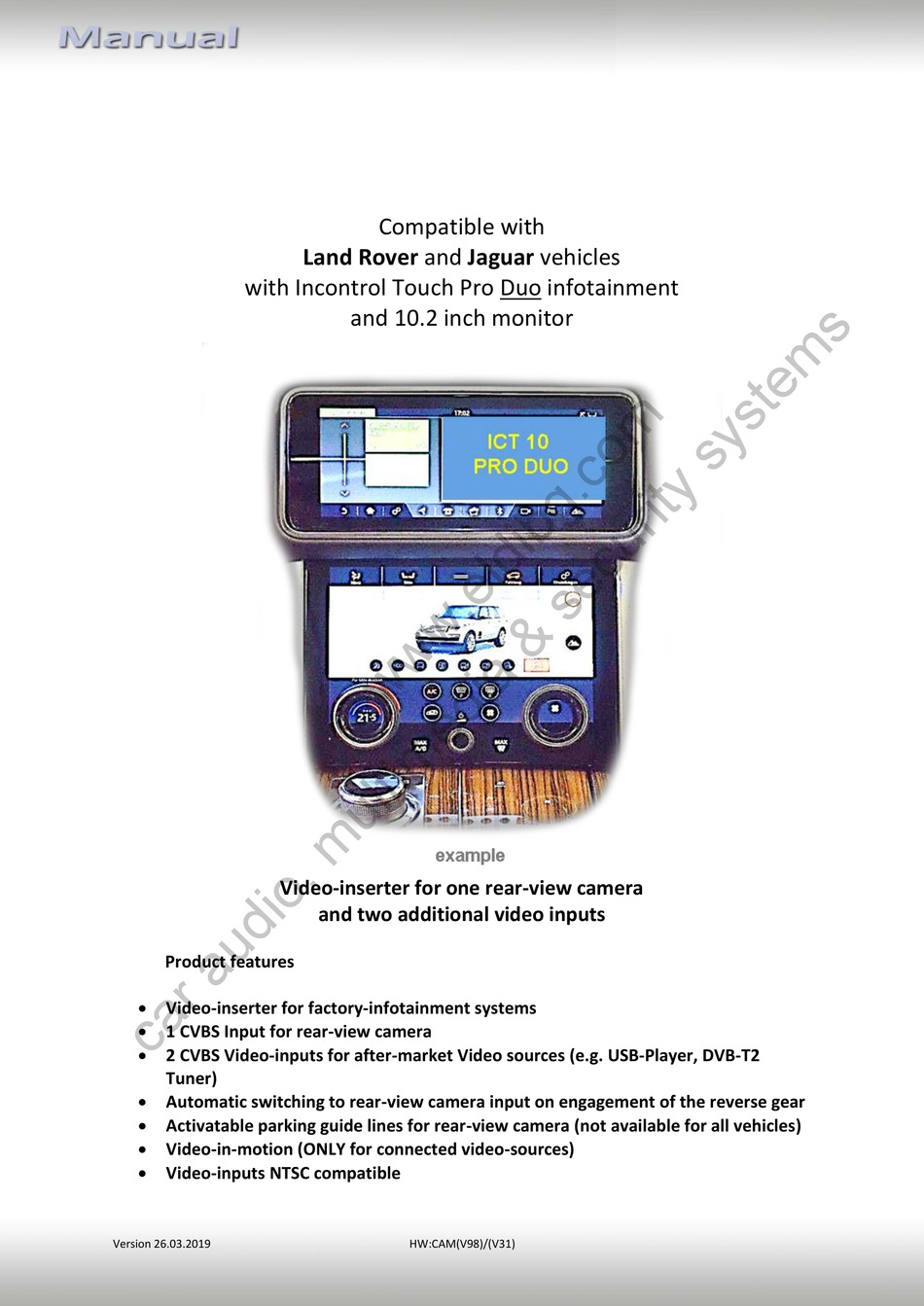

Compatible with
Land Rover and Jaguar vehicles
with Incontrol Touch Pro Duo infotainment
and 10.2 inch monitor
Video-inserter for one rear-view camera
and two additional video inputs
Product features
 Video-inserter for factory-infotainment systems
 1 CVBS Input for rear-view camera
 2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T2
Tuner)
 Automatic switching to rear-view camera input on engagement of the reverse gear
 Activatable parking guide lines for rear-view camera (not available for all vehicles)
 Video-in-motion (ONLY for connected video-sources)
 Video-inputs NTSC compatible
Version 26.03.2019
HW:CAM(V98)/(V31)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L3-LR17 and is the answer not in the manual?

Questions and answers

Related Manuals for Caraudio-Systems L3-LR17

Summary of Contents for Caraudio-Systems L3-LR17

  • Page 1 Compatible with Land Rover and Jaguar vehicles with Incontrol Touch Pro Duo infotainment and 10.2 inch monitor Video-inserter for one rear-view camera and two additional video inputs Product features  Video-inserter for factory-infotainment systems  1 CVBS Input for rear-view camera ...

  • Page 2: Table Of Contents

    Contents 1. Prior to installation 1.1. Delivery contents 1.2. Checking the compatibility of vehicle and accessories 1.3. Boxes and connectors – video interface 1.4. Settings of the 8 Dip switches (black) 1.4.1. Enabling the interface’s video inputs (dip 2-3) 1.4.2. Rear-view camera setting (dip 5) 1.4.3.

  • Page 3: Prior To Installation

    Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product. Apart from using this product in an unmoved vehicle, it should only be used to display fixed menus or rear-view- camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).

  • Page 4: Checking The Compatibility Of Vehicle And Accessories

    1.2. Checking the compatibility of vehicle and accessories Requirements Brand Compatible vehicles Compatible systems Range Rover since model year 2018 Range Rover Sport since model year 2018 Range Rover Velar since model year 2017 Land Rover Incontrol Touch Pro Duo Range Rover Evoque since 04/2019 with 10.2 inch 24:9 monitor (glossy) Discovery 5...

  • Page 5: Boxes And Connectors - Video Interface

    1.3. Boxes and connectors – video interface The video-interface converts the video signals of connected after-market sources in a factory monitor compatible picture signal which is inserted in the factory monitor, by using separate trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface.

  • Page 6: Enabling The Interface's Video Inputs (Dip 2-3)

    1.4.1.1. Enabling the interface’s video inputs (dip 2-3) Only by dip switches enabled video inputs can be accessed by switching through the interface’s video sources. It is recommended to enable only the required inputs. Disabled inputs will be skipped while switching through the video interfaces inputs. 1.4.1.2.

  • Page 7: Settings Of The 4 Dip Switches (Can Function - Red)

    1.5. Settings of the 4 Dip switches (CAN functions – red) All 4 dip-switches of the video interface have no function for normal use and have to be set to OFF. Dip position “down” is ON and position up is OFF. Navigation / system Dip 1 Dip 2...

  • Page 8: Monitor Removal - Example Land Rover

    2.2. Moitor removal – example Land Rover Version 26.03.2019 HW:CAM(V98)/(V31)
  • Page 9 Version 26.03.2019 HW:CAM(V98)/(V31)

  • Page 10: Connection Schema

    2.3. Connection schema Version 26.03.2019 HW:CAM(V98)/(V31)
  • Page 11 2.4. Connection – factory monitor Disconnect the female 4pin HSD connector of the vehicle harness from the rear-side of the HU IN factory monitor and connect it to the male 4pin HSD connector of the video interface. Connect the not-angled female 4pin HSD connector of the enclosed picture signal cable to TO LCD the video interfaces’...

  • Page 12: Analog Power Supply For The Video Interface

    Note: The colours of the HSD+2 connectors at monitor and head unit may vary. The picture signal cable’s connecting direction doesn’t have an impact on the system’s function, for that the angled and not-angled HSD+2 connectors are allowed to be interchanged, depending on the HSD+2 connectors mounting space at the monitor.

  • Page 13: Connection - Video-Sources

    2.6. Connection - video sources It is possible to connect an after-market rear-view camera and two more AV sources to the video-interface. Before a final installation of the video sources, we recommend a test-run to ensure the compatibility of vehicle and interface. Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility.

  • Page 14: Audio Insertion

    2.6.1. Audio-insertion This interface is only able to insert video signals into the factory infotainment. If an AV- source is connected, the audio insertion has to be done by the factory audio AUX input or an FM-modulator. The inserted video-signal can be activated simultaneously to each audio- mode of the factory infotainment.

  • Page 15: Case 2Interface Does Not Receive The Reverse Gear Signal

    2.6.2.2. Case 2: Interface does not receive the reverse gear signal If the video interface does not deliver +12V on the green wire of the 12pin cable when reverse gear is engaged (not all vehicles are compatible), an external switching signal from the reverse gear light is required.

  • Page 16: Connection - Video-Interface And External Keypad

    2.7. Connection - video-interface and external keypad Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 26.03.2019 HW:CAM(V98)/(V31)

  • Page 17: Picture Settings

    2.8. Picture settings The picture settings are adjustable by the 3 push-buttons on the video-interface. Press the MENU button to open the OSD settings menu or to switch to the next menu item. Press UP and DOWN to change the selected value. The buttons are placed inside in the housing to avoid accidental changes during or after the installation.

  • Page 18: Interface Operation

    3. Interface operation 3.1. By factory touch screen To switch the interface’s activated video sources, the factory touch screen can be used. Make a long touch of the left top corner of the factory touch screen to switch the video- source.

  • Page 19: Specifications

    4. Specifications BATT/ACC range 7V - 25V Stand-by power drain Power 360mA @12V Video input 0.7V - 1V Video input formats NTSC Temperature range -40°C to +85°C Dimensions video-box 119 x 24 x 104 mm (W x H x D) Version 26.03.2019 HW:CAM(V98)/(V31)

  • Page 20: Faq - Trouble Shooting-Interface Functions

    FAQ – Trouble shooting Interface functions For any troubles which may occur, check the following table for a solution before requesting support from your vendor. Symptom Reason Possible solution Not all connectors have been reconnected to factory head- Connect missing connectors. unit or monitor after installation.

  • Page 21: Technical Support

    Symptom Reason Possible solution Camera input picture Use relay or electronics to "clean" reverse gear lamp black. Camera power taken directly power. Alternatively, if CAN-bus box is compatible Camera input picture from reverse gear lamp. with the vehicle, camera power can be taken from green wire of 6pin to 8pin cable.
