3.2.2. After-market rear-view camera
3.2.2.1.

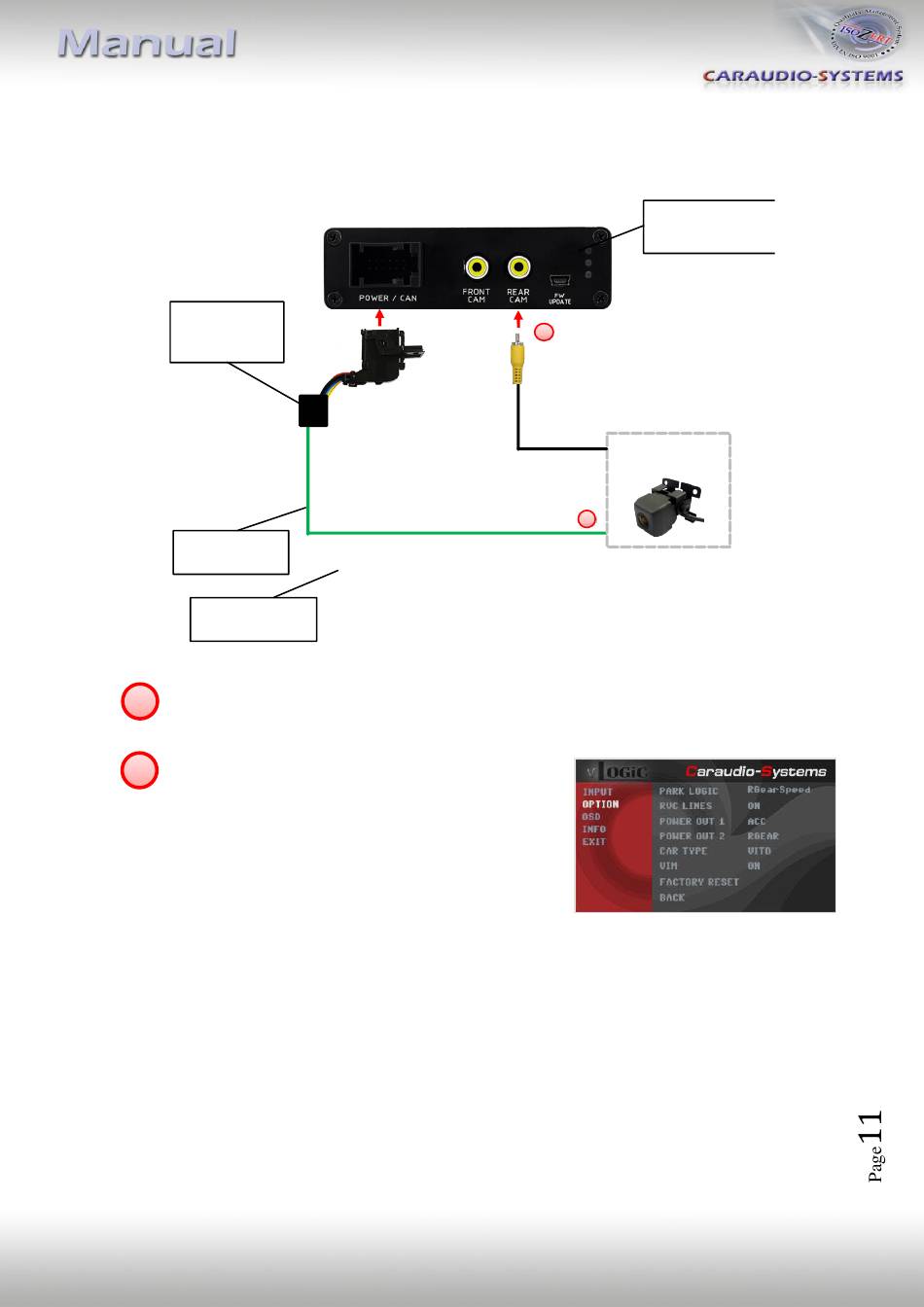

Connection to the after-market rear-view camera

V5C-UNI01
harness
+12V camera
power
Rear gear signal
input (+12V)
1
Connect the video RCA of the after-market rear-view camera to the female RCA
connector "REAR CAM" of the interface box V5C-M613.
2 - The green wire of harness V5C-UNI01 can be used
for +12V electric power supply (max. 1A) of the
after-market rear-view camera. Configure in the
OSD-menu "OPTION", menu item "POWER OUT 2"
the designated electric power supply (see chapter
"Configurable switching outputs").
Version 18.11.2016
1
Power Out 2 (max. 1A)
Interface-box
V5C-M613
FRONT

Rear-view camera

2
V5-NTG46
