Summary of Contents for Caraudio-Systems V5-CIC-E

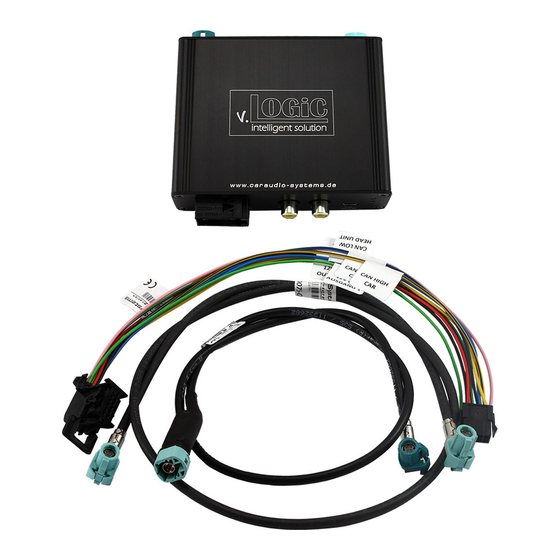

- Page 1 Intelligent Solution Interface V5-CIC-E compatible with the E-series BMW and Mini with navigation system or radio and 6.5” or 8.8” monitor with 4pin HSD LVDS connector Version 01.12.2015 V5-CIC-E...
- Page 2 Picture-in-picture mode combining after-market rear-view and front camera picture(s) with factory parking sensor graphics Compatible with all factory video accessories (e.g. rear-view camera, Top-View, nightvison, DVD-changer, TV-tuner) USB update-port for software-updates by consumer Version 01.12.2015 V5-CIC-E...
-
Page 3: Table Of Contents
4.1.1. OSD – Operation 4.1.1.1. 8-button iDrive 4.1.1.2. 2-button iDrive in Mini 4.1.2. OSD – Additional setting options 4.2. Video-in-motion function 4.3. Selecting the interface as current video source 5. Specifications 6. Connections (interface-box) 7. Technical support Version 01.12.2015 V5-CIC-E... - Page 4 To receive a free update, the interface must be sent in at own cost. Labor cost for and other expenses involved with the software-updates will not be refunded. Version 01.12.2015 V5-CIC-E...
-
Page 5: Prior To Installation
LVDS cable HW_____ SW_____ CAB-HSD-MR-060-OZ LVDS cable CAB-HSD-DD075-O V5C-UNI01 harness 1.1. Check compatibility of vehicle and accessories Requirements Navigation E-series and Mini with navigation system or radio with 6.5” or 8.8“ monitor (E-series) with 4pin HSD LVDS connector Version 01.12.2015 V5-CIC-E... -
Page 6: Setting The Dip Switches Of The Interface-Box V5C-M636
No function CIC-E (E-series), 8.8“ monitor No function After each change of the dip switch settings you have to execute a power reset of the interface-box! 1.3. LED‘s of the interface-box V5C-M636 Valid input source CAN ok Power Version 01.12.2015 V5-CIC-E... -
Page 7: Connection Schema
Back of CAB-HSD-MR-060-OZ head unit 4-Pin HSD LVDS female vehicle harness Interface-box V5C-M636 FRONT +12V Quadlock female vehicle harness Masse CAN (2) Rear-view camera CAN (1) V5C-UNI01 harness Front camera +12V switching outputs Rear gear signal input (+12V) Version 01.12.2015 V5-CIC-E... -
Page 8: Installation
Head Unit Interface-box V5C-M631 FRONT +12V Quadlock female vehicle harness Ground CAN-HI (2) CAN-HI (1) CAN-LOW (2) CAN-LOW (1) V5C-UNI01 harness Cut off the 8 pin Molex connector from V5C-UNI01 harness (is not needed). Version 01.12.2015 V5-CIC-E... - Page 9 CAN HIGH Pin 11 - to the head-unit side ● Blue CAN LOW Pin 9 - to the head-unit side ● Green +12V power output ● Pink +12V power output Quadlock ● White Rear gear signal input (+12V) Version 01.12.2015 V5-CIC-E...
-
Page 10: Lvds Connection
4pin HSD LVDS connector (LVDS-OUT) on the rear of the interface-box V5C-M636. Connect the female 4pin HSD LVDS connector of the LVDS cable CAB-HSD-DD075-O to the pink male 4pin HSD LVDS connector on the rear of the head unit. Version 01.12.2015 V5-CIC-E... -
Page 11: After-Market Front Camera
The pink wire of harness V5C-UNI01 can be used for +12V electric power supply (max. 1A) of the after-market front camera. Configure in the OSD- menu “MISC”, menu item “POWER OUT 2” the designated electric power supply (see chapter “Configurable switching outputs”). Version 01.12.2015 V5-CIC-E... -
Page 12: Settings For Connecting An After-Market Front Camera
(e.g. radio). After deactivation you can’t enable the parking process again until the vehicle is diving faster than 20km/h, the ignition is switched off and on or the PDC will be disabled and enabled again, if existing. Version 01.12.2015 V5-CIC-E... -
Page 13: After-Market Rear-View Camera
On some vehicles the reverse light signal doesn’t exist on the CAN-bus. Connect the white wire of harness TV-BMW01 to reverse light signal (+12V of reverse light) if the system doesn’t switch to the rear-view camera automatically after the described OSD-setup (see next chapter). Version 01.12.2015 V5-CIC-E... -
Page 14: Settings For Connecting An After-Market Rear-View Camera
(e.g. radio). After deactivation you can’t enable the parking process again until the vehicle is diving faster than 20km/h, the ignition is switched off and on or the PDC will be disabled and enabled again, if existing. Version 01.12.2015 V5-CIC-E... -
Page 15: Configurable Trigger Outputs
+12V when the interface is on (red LED on) Ignition +12V when ignition is on +12V when the rear-view camera input is POWER OUT1 RearCam activated (pink) MISC POWER OUT2 (green) Reverse Gear +12V when reverse gear is engaged Trigger putput deactivated Version 01.12.2015 V5-CIC-E... -
Page 16: Picture Settings
You can change the picture settings in the OSD-menu IMAGE (Operation of the OSD: see chapter “OSD-Operation”). ◦ Brightness ◦ Contrast ◦ Saturation ◦ Hue ◦ Sharpness Note: The picture settings will be retained for each AV-source separately. Version 01.12.2015 V5-CIC-E... -
Page 17: Operation
4. Operation 4.1. OSD – On-screen display You can change the basic configurations of the interface in the OSD (on screen display). 4.1.1. OSD – Operation You can control the OSD by iDrive. 4.1.1.1. 8-button iDrive Version 01.12.2015 V5-CIC-E... -
Page 18: 2-Button Idrive In Mini
(Operation of the OSD: see chapter “OSD-Operation”): OSD-menu Menu item Setting Explication H POSITION 0-xxx Horizontal position of the OSD V POSITION 0-xxx Vertical position of the OSD VERSION X.XX.XX Displays the current SW-version MISC FACTORY RESET Resetting to factory settings Version 01.12.2015 V5-CIC-E... -
Page 19: Video-In-Motion Function
Setting Explication Video-in-motion activated MISC Video-in-motion deactivated For the V5-CIC-E-PNP the video-in-motion function is permanently active without disturbing the navigation performance. 4.3. Selecting the interface as current AV-source Long press CD-button respectively long press Menu-button to choose the interface as current video source. -
Page 20: Specifications
Front camera Female input update-connector Mini USB 7. Technical Support Caraudio-Systems Vertriebs GmbH manufacturer/distribution In den Fuchslöchern 3 D-67240 Bobenheim-Roxheim email support@caraudio-systems.de Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ® of their corresponding legal owners.
