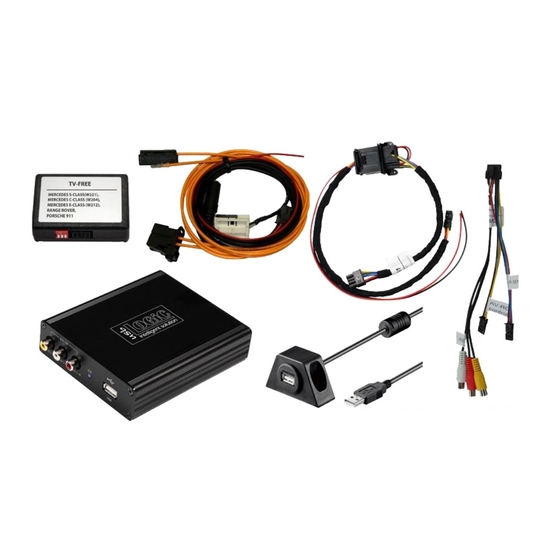

usbLOGiC USB-AV-Player USB-NTG1 compatible with Mercedes Benz Comand APS NTG1 navigation systems Product features • USB-port for media up to 2 TB (2000GB) • supports FAT32 and NTFS formatted media • multi partition capable • compatible with MP3, AVI, VOB, MOV, RMVB, JPG and many more •...
Contents 1. Prior to Installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 1.3. Setting the dip switches of the CAN-box TV-400/500 1.4. Setting the dip switches of the USB-box USBC-M510 1.4.1. Automatic switching to rear-view camera 1.4.2. Deactivating usbLOGiC AV input 2.
Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product. This product should only be used while standing or to display fixed menus or rear-view-camera video when the vehicle is moving, for example the MP3 menu for DVD upgrades.
1.2. Check compatibility of vehicle and accessories Requirements Vehicle CLS-Coupe (W219) from 10/2004 til approx. 04/2008, E-class (W211) til approx. 04/2008, SLK-class (R171) from 03/2004 til approx. 04/2008 Navigation Comand APS NTG1 with green Fakra connector on rear-side From approx week 6 of 2004 it was left out on vehicles which were delivered w/o factory TV-tuner or factory RVC.
1.4. Setting the dip switches of the USB-box USBC-M510 The default dip switch settings of the USB-box need to be changes ONLY if an after-market rear-view camera shall be connected or if the AV of the usbLOGiC shall be deactivated. The dip switches are located inside the USB-box.
3. Installation Switch off ignition and disconnect the vehicle’s battery! If according to factory rules disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a resistor lead.
Page 8
With the included optical bridge, connect the removed vehicle harness’ optical output lead to the optical output lead of the C2C-MBN2 (see arrows on MOST®- connector. Plug male MOST®-connector of C2C-MBN2 into female MOST®-socket of USB-box USBC-M510. Connect the red (black) wire of the C2C-MBN2 to pin 1 (pin 2) of the black MOST®- connector’s analogue wires.
3.2. Connecting the CAN-box Locate the Audio Gateway. Remove the black MOST®-connector which contains the optical leads and analogue wires from the Audio-Gateway. Remove 4pin insert of the vehicle harness from the black MOST®-connector and plug in instead the 4pin insert of harness TV-NTG1. Reconnect the black MOST®-connector.
3.3. USB and optional IR-remote control set Connect USB-connector of USB-installation socket USBC-EXT to USB-socket of USB- box USBC-M510 and install the USBC-EXT socket in a well accessible location, e.g. the glove-box. Make sure there is enough space to load USB-media. Installation socket for the connection of USB-media.
3.4.1. AV-source The usbLOGiC has the possibility to connect and remotely control by navigation buttons a pre-programmed device. The device list in the device control table (appendix A) shows the pre-programmed remote channels and the related IR-remote cables STA-xxx which must be ordered separately for the control of the device.
3.4.3. After-market rear-view camera Connect the video RCA of the after-market rear-view camera to the the female RCA connector R-CAM IN of USB-box USBC-M510. Connect the green wire of C2C-MBN2 to the camera power supply (+12V max. 1A) The green wire is high (+12V) when reverse gear is engaged. Note: Automatic switching to after-market rear-view camera works only from usbLOGiC mode.
4. Operation 4.1. Activation of the video-in-motion function TV-400 The video-in-motion function is activated permanently without disturbing the navigation performance. Note: The loose white and green cable are not required and must be isolated. TV-500 The video-in-motion can be activated and deactivated by Dip 1 or alternatively by the included loose green cable in connection with a switch (not included in delivery).
4.4. Assigning device control for connected AV-source After selecting the usbLOGiC as current AV source, push “2”-button long. When released, a message “RC2” appears. Now push button “ ”-button followed by the device-related IR- code as described in device control table (appendix A). Push OK to confirm the assignment. Note: If the AV-input is deactivated (see chapter “Deactivating usbLOGiC AV input”), it is not necessary, nor possible to assign device controls.
Weight 312g Measurements (box only) B x H x T 135 x 30 x 105 mm 6. Connections (USB-box) 7. Technical Support Caraudio-Systems Vertriebs GmbH manufacturer/distribution In den Fuchslöchern 3 D-67240 Bobenheim-Roxheim email support@caraudio-systems.de Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ®...
