2.5.

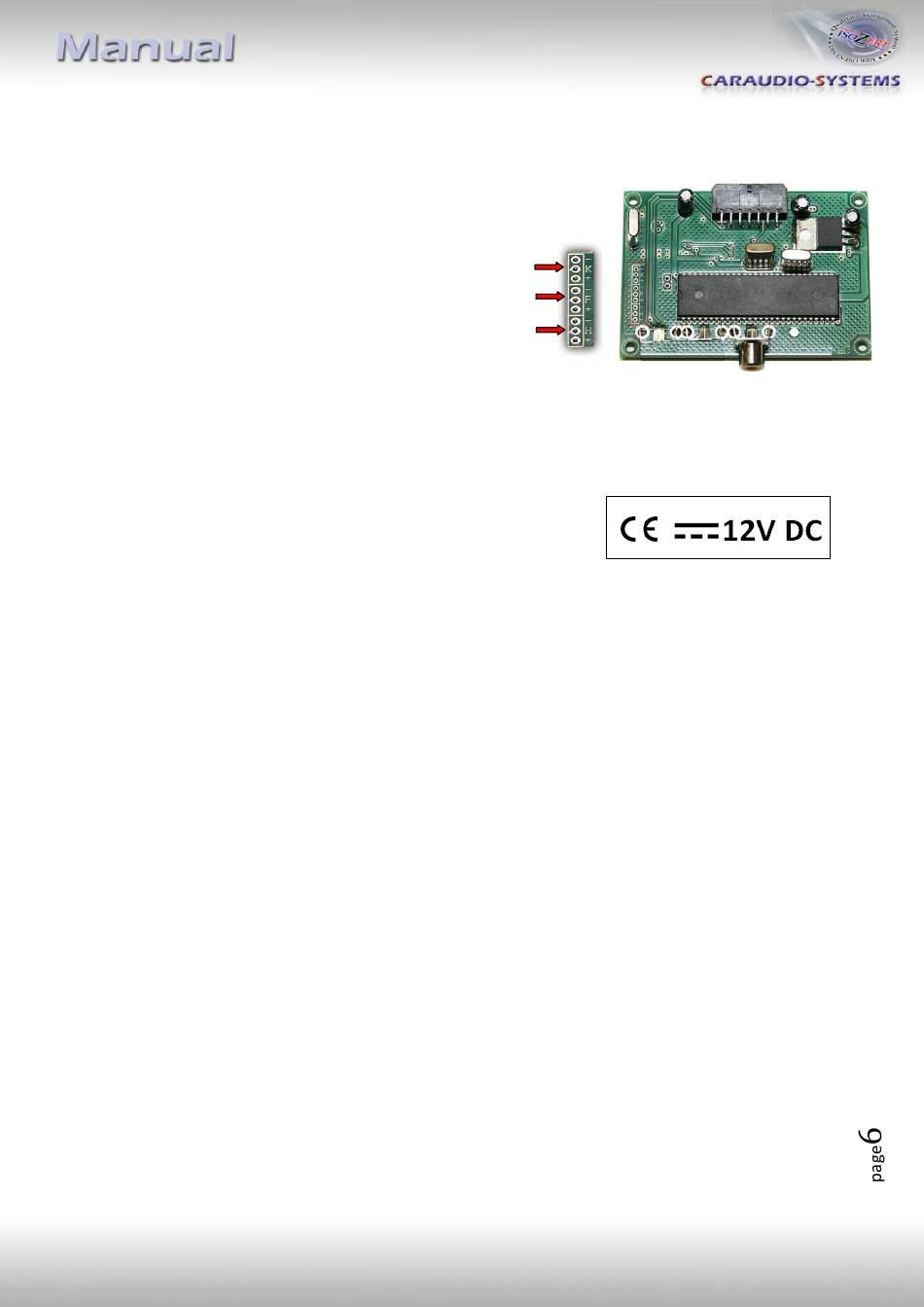

Picture settings for the interface
The picture settings can be changed on the interface.
For this purpose, the casing must be opened. There
are contact eyes on the PCB which are marked with
"K" for contrast, "F" for colour and "H" for brightness.
Both over and under these contact eyes there are
further contacts, marked with "-" and "+". To change
the respective picture value, the corresponding
middle contact eye and the contact eye with "-" or
"+" must be bridged briefly.
.
3. Specifications
Operation voltage
Max. current consumption
Temperature range
Weight
Dimensions (box only) B x H x T
4. Technical Support
Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered
trademarks ® of their corresponding legal owners.
Version 21.05.2010
10,5 - 14,8 V
ca. 200 mA
-30°C to +80°C
76g
105 x 30 x 78 mm
Caraudio-Systems Vertriebs GmbH
manufacturer/distribution
In den Fuchslöchern 3
D-67240 Bobenheim-Roxheim
email support@caraudio-systems.de
ZL-MFD1
