2.3.

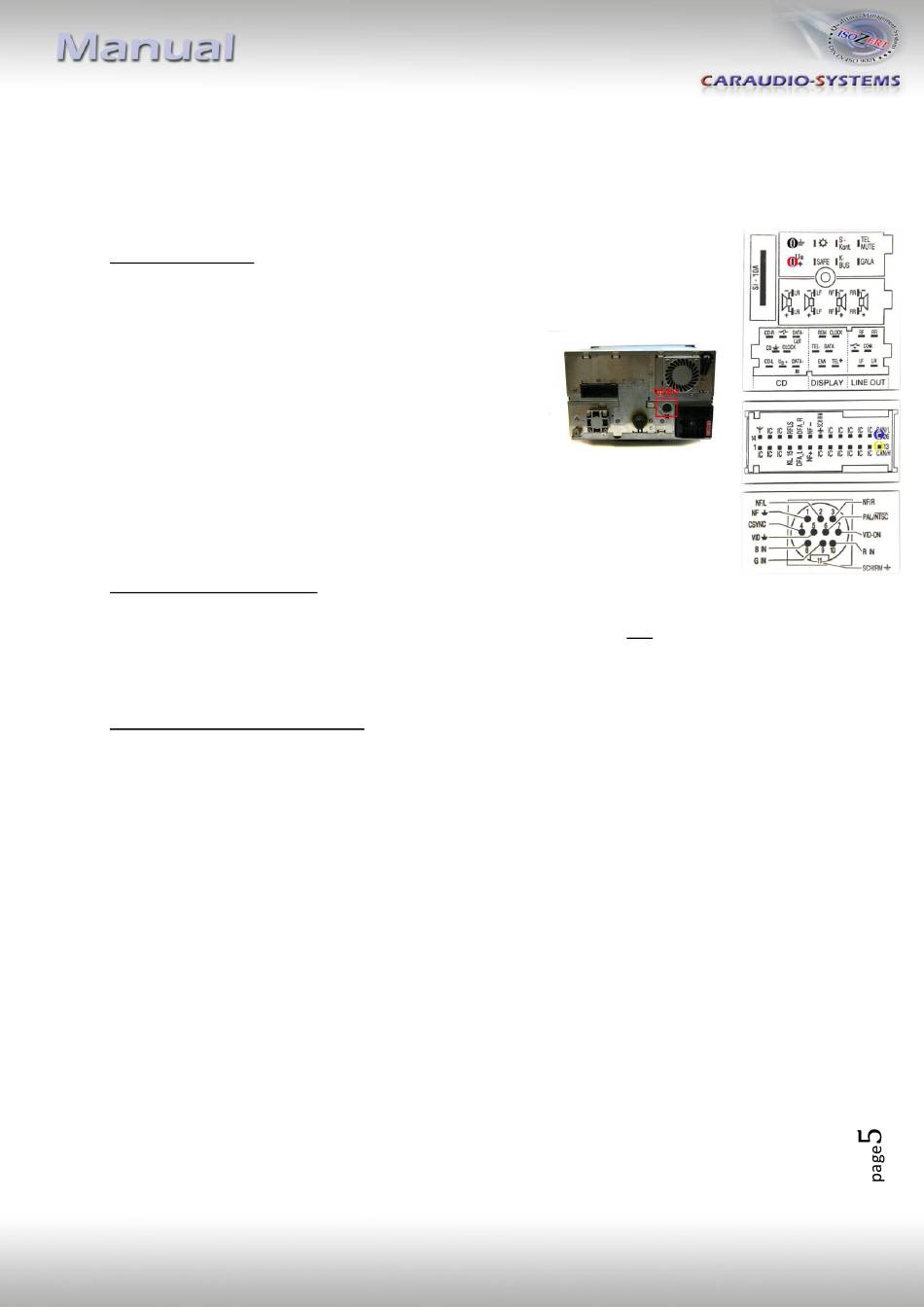

Connecting the interface to the navigation unit
• Connect Video-out of the AV-source to the interface box
• Connect Audio-out of the AV-source to the cable harness
Cinch-connections:
YELLOW
=
VIDEO-input (FBAS-signal)
RED
=
AUDIO-input right-hand side
BLACK =
AUDIO-input left-hand side
•Connect round 10pin-connector of the cable harness to
the round 10pin-female connector on the backside of the
navigation
• Red wire
of the cable harness connect to +12V ACC
• Black wire of the cable harness connect to ground
• Green wire
of the cable harness +12V= VIDEO ON
if connecting an AV-source:
Audi Navi Plus (all)
VW MFD 1 (older versions)
VW MFD 1 (newer versions)
if connecting a rear-view-camera:
VW MFD1 (newer version)
2.4.
Activation of the interface as a current AV-source
MFD1
Press AUDIO and select „AV" (possibly switch the AV-source to "A+V" before)
Navi Plus
Press RADIO/CD/TV and select „AV" (possibly switch the AV-source to "A+V"
before)
Version 21.05.2010
Connect the
green wire
Connect the
green
wire, if TV is not selectable
NOT connect the
green wire
Connect the
green wire
light signal) by using a relay
to reverse light (+12V of reverse
ZL-MFD1
