located on the bottom right corner of the window (see Figure 5), to see what is shown in Figure 6.

Change the features and capture settings by consulting the detailed instructions in the

Application

Note, VisualAnalog Converter Evaluation Tool Version 1.0 User Manual. After the

changes are made to the capture settings, click the Collapse Display button.

Evaluation And Test

After the ADC data capture board setup is complete, set up the SPI controller software using the

following procedure:

Open the SPI controller software by going to the Start menu or by double-clicking the

SPIController software desktop icon. If prompted for a configuration file, select the appropriate

one. If not, check the title bar of the window to determine which configuration is loaded. If

necessary, choose Cfg Open from the File menu and select the appropriate file based on your

part type. Note that the CHIP ID(1) box should be filled to indicate whether the correct SPI

controller configuration file is loaded (see Figure 7).

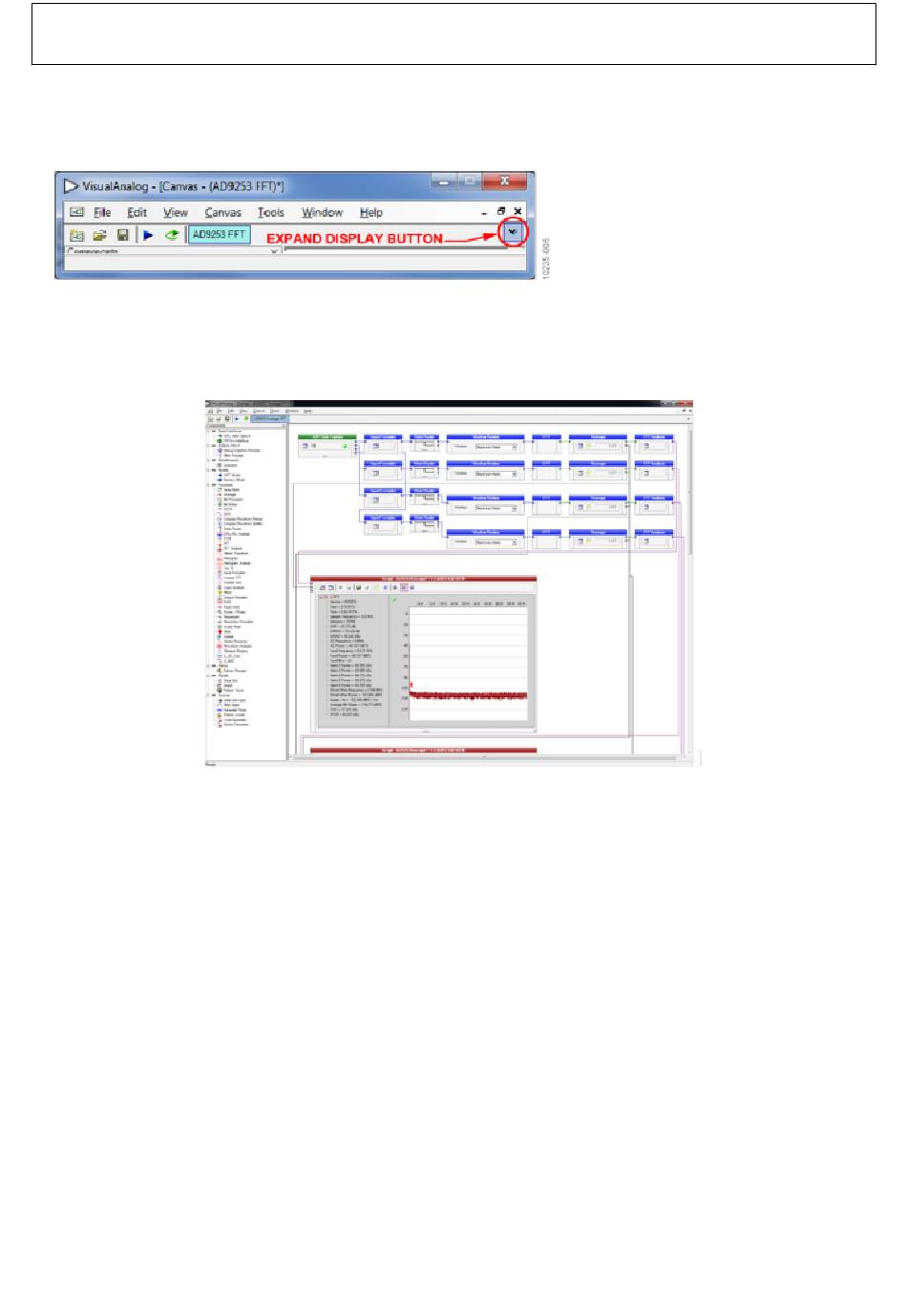

Figure 5. VisualAnalog Window Toolbar, Collapsed Display

Figure 6. VisualAnalog, Main Window Expanded Display

Rev 13 May 2013 17:57 | Page 9
