2. Click the New DUT button in the SPIController window (see Figure 8)
Button
3. In the ADCBase 0 tab of the SPIController window, find the CLOCK DIVIDE(B) box (see Figure
9). If using the clock divider, use the drop-down box to select the correct clock divide ratio, if
necessary. For additional information, refer to the data sheet, the
Speed ADC SPI Control Software, and the AN-877 Application
Rev 13 May 2013 17:57 | Page 10

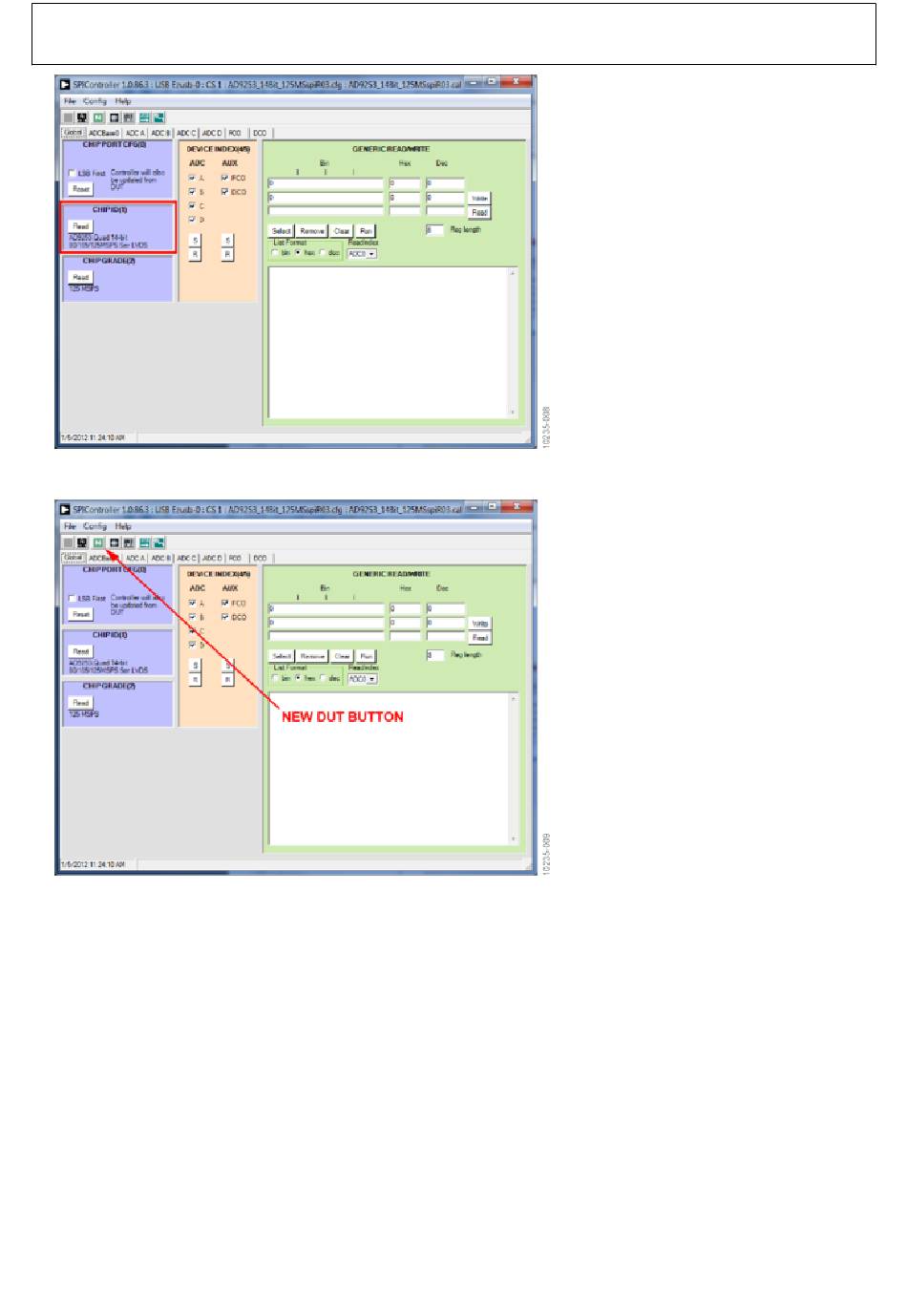

Figure 7. SPI Controller, CHIP ID(1)
Figure 8. SPI Controller, New DUT
AN-878 Application
Note, Interfacing to High Speed ADCs
Note, High
