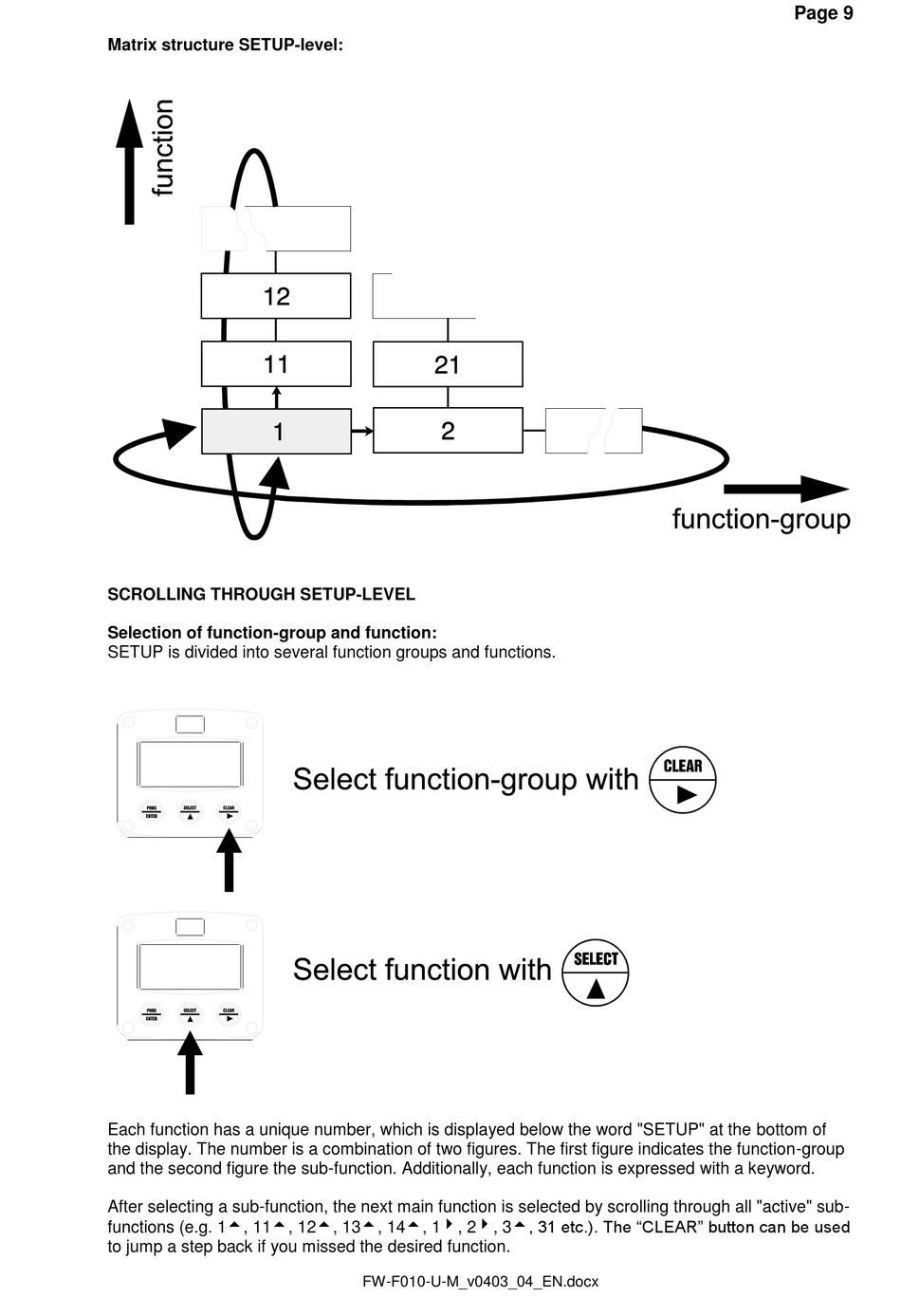

Matrix structure SETUP-level:

SCROLLING THROUGH SETUP-LEVEL

Selection of function-group and function:

SETUP is divided into several function groups and functions.

Each function has a unique number, which is displayed below the word "SETUP" at the bottom of

the display. The number is a combination of two figures. The first figure indicates the function-group

and the second figure the sub-function. Additionally, each function is expressed with a keyword.

After selecting a sub-function, the next main function is selected by scrolling through all "active" sub-

functions (e.g. 1, 11, 12, 13, 14, 1, 2, 3, 31 etc.). The "CLEAR" button can be used

to jump a step back if you missed the desired function.

FW-F010-U-M_v0403_04_EN.docx
