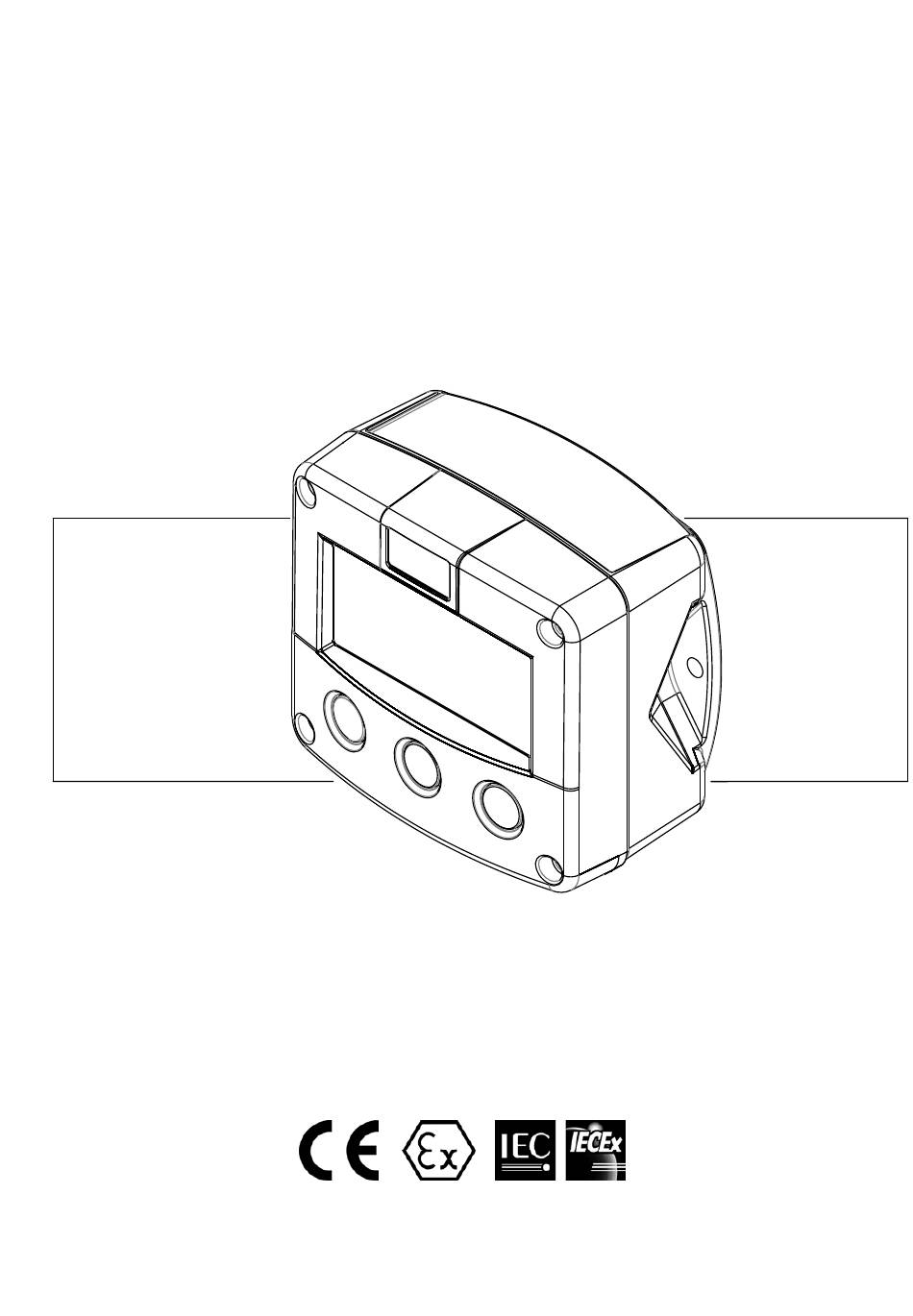

F117-P
TOTALIZER MONITOR
WITH HIGH / LOW TOTALIZER ALARMS
Signal input flowmeter: pulse, Namur and coil
Signal outputs: (0)4-20mA / 0-10V ref. percentage or flowrate
Alarm outputs: two totalizer alarms
Options: Intrinsically Safe, Modbus communication
F-Series - Field mounted indicators for safe and hazardous areas. More info: www.fluidwell.com/fseries

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F Series and is the answer not in the manual?

Questions and answers

Related Manuals for Fluidwell F Series

Summary of Contents for Fluidwell F Series

  • Page 1 WITH HIGH / LOW TOTALIZER ALARMS Signal input flowmeter: pulse, Namur and coil Signal outputs: (0)4-20mA / 0-10V ref. percentage or flowrate Alarm outputs: two totalizer alarms Options: Intrinsically Safe, Modbus communication F-Series - Field mounted indicators for safe and hazardous areas. More info: www.fluidwell.com/fseries...

  • Page 2: Safety Instructions

     Intrinsically Safe applications: follow the instructions as mentioned in Chapter 5 and consult “Fluidwell F1..-..-XI - Documentation for Intrinsic Safety”. DISPOSAL At the end of its life this product should be disposed of according to local regulations regarding waste electronic equipment.

  • Page 3: About The Operation Manual

    Manual HF117PEN_v0501_04 © Copyright 2011 Fluidwell bv - The Netherlands. Information in this manual is subject to change without prior notice. The manufacturer is not responsible for mistakes in this material or for incidental damage caused as a direct or indirect result of the delivery, performance or use of this material.

  • Page 4: Table Of Contents

    Page 4 CONTENTS MANUAL Safety instructions ............................2 Disposal ..............................2 Safety rules and precautionary measures ....................... 2 About the operation manual ..........................3 Contents manual .............................. 4 Introduction ..........................5 1.1. System description of the F117-P ..................5 Operational ..........................7 2.1.

  • Page 5: Introduction

    Page 5 INTRODUCTION 1.1. SYSTEM DESCRIPTION OF THE F117-P Functions and features The totalizer monitor model F117-P is a microprocessor driven instrument designed to monitor the total related to a given preset value and two alarm values for high / low alarm. Further an accumulated total as well as the flowrate can be displayed.
  • Page 6 Page 6 Configuration of the unit The F117-P is designed to be implemented in many types of applications. For that reason, a SETUP-level is available to configure your F117-P according to your specific requirements. SETUP includes several important features, such as K-factors, measurement units, signal selection etc.

  • Page 7: Operational

    Page 7 OPERATIONAL 2.1. GENERAL  The F117-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed.  Take careful notice of the " Safety rules, instructions and precautionary measures " in the front of this manual.

  • Page 8: Operator Information And Functions

    Page 8 2.3. OPERATOR INFORMATION AND FUNCTIONS In general, the F117-P will always function at Operator level. The information displayed is dependant upon the SETUP-settings. All pulses generated by the connected flowmeter are measured by the F117-P in the background, whichever screen refresh rate setting is chosen. After pressing a key, the display will be updated very quickly during a 30 second period, after which it will slow-down again.
  • Page 9 Page 9  Programming the totalizer alarm values Note: This function might not be accessible due to a configuration setting. When the STOP-key is pressed a few times, the two totalizer alarm values are displayed:  low totalizer alarm: 95.0% (365.75L) for example, ...

  • Page 10: Monitoring Process

    Page 10 2.3.2. MONITORING PROCESS  Starting up the monitoring process The totalizer monitoring process can only be started up when "READY” is displayed. This is the main display information of the F117-P. After selecting any other information, it will always return to this main display automatically.

  • Page 11: Configuration

    Page 11 CONFIGURATION 3.1. INTRODUCTION This and the following chapters are exclusively meant for electricians and non-operators. In these, an extensive description of all software settings and hardware connections are provided.  Mounting, electrical installation, start-up and maintenance of the instrument may only be carried out by trained personnel authorized by the operator of the facility.
  • Page 12 Page 12 Matrix structure SETUP-level: SCROLLING THROUGH SETUP-LEVEL Selection of function-group and function: SETUP is divided into several function groups and functions. Each function has a unique number, which is displayed below the word "SETUP" at the bottom of the display. The number is a combination of two figures. The first figure indicates the function-group and the second figure the sub-function.
  • Page 13 Page 13 To change or select a value: To change a value, use  to select the digits and  to increase that value. To select a setting, both  and  can be used. If the new value is invalid, the increase sign or decrease-sign will be displayed while you are programming.

  • Page 14: Overview Functions Setup Level

    Page 14 3.2.2. OVERVIEW FUNCTIONS SETUP LEVEL SETUP FUNCTIONS AND VARIABLES TOTAL UNIT L - m3 - kg - lb - GAL - USGAL - bbl - no unit DECIMALS 0 - 1 - 2 - 3 (Ref: displayed value) K-FACTOR: 0.000010 - 9,999,999 DECIMALS K-FACTOR...

  • Page 15: Explanation Of Setup-Functions

    Page 15 3.2.3. EXPLANATION OF SETUP-FUNCTIONS 1 - TOTAL SETUP - 11 determines the measurement unit for total, preset and MEASUREMENT UNIT accumulated total. The following units can be selected: L - m3 - kg - lb. - GAL - USGAL - bbl - _ (no unit). Alteration of the measurement unit will have consequences for operator and SETUP-level values.

  • Page 16: Flowrate

    Page 16 2 - FLOWRATE The settings for total and flowrate are entirely separate. In this way, different units of measurement can be used for each e.g. cubic meters for total and liters for flowrate. The display update time for flowrate is one second or more. Note: these settings also influence the analog output ref.

  • Page 17: Preset

    Page 17 3 - PRESET The preset value is the totalizer quantity to be monitored. Related to this preset value, the low and high totalizer alarm values are set as well. This function determines if the preset value can be set at both Operator SET PRESET VALUE level and SETUP-level or SETUP-level only.

  • Page 18: Power Management

    Page 18 5 - POWER MANAGEMENT When used with the internal battery option, the user can expect reliable measurement over a long period of time. The F117-P has several smart power management functions to extend the battery life time significantly. Two of these functions can be set: The calculation of the display-information influences the power LCD NEW consumption significantly.

  • Page 19: Flowmeter

    Page 19 7 - FLOWMETER The F117-P is able to handle several types of input signal. The type of SIGNAL A flowmeter pickup / signal is selected with SETUP 71. If two sensors are used, the second input is set with SETUP 72. Note: The selections "active pulse"...

  • Page 20: Analog Output

    Page 20 8 - ANALOG OUTPUT A linear (0)4-20mA or 0-10V output signal is generated according to the percentage or flowrate with a 10 bits resolution. The settings for flowrate (SETUP - 2) directly influence the analog output. The relationship between percentage / rate and analog output is set with the following functions: The analog output can be disabled.

  • Page 21: Communication (Optional)

    Page 21 9 - COMMUNICATION (OPTIONAL) The functions described below deal with hardware that is not part of the standard delivery. Programming of these functions does not have any effect if this hardware has not been installed. Consult Appendix C and the Modbus communication protocol description for a detailed explanation. For external control, the following communication speeds can be selected: BAUDRATE 1200 - 2400 - 4800 - 9600 baud...

  • Page 22: Installation

    Page 22 INSTALLATION 4.1. GENERAL DIRECTIONS  Mounting, electrical installation, start-up and maintenance of this instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. ...

  • Page 23: Dimensions- Enclosure

    Page 23 4.3. DIMENSIONS- ENCLOSURE Aluminum enclosures: 75 mm (2.95") 112 mm (4.40") 130 mm (5.12") 12mm 12mm 30mm 30mm 24mm 24mm M20 x 1,5 6 x M12 36mm 36mm 30mm 30mm M16 x 1,5 M16 x 1,5 1/2"NPT M20 x 1,5 0.12"...
  • Page 24 Page 24 GRP enclosures: 75 mm (2.95") 112 mm (4.40") 130 mm (5.12") HK back box: (flat bottom) 75 mm (2.95") 118 mm (4.65”) 25mm 25mm D=20mm D=20mm 12mm 12mm 30mm 30mm 24mm 24mm D=12mm D=16mm D=16mm D=20mm 36mm 36mm 0.12”...

  • Page 25: Installing The Hardware

    Page 25 4.4. INSTALLING THE HARDWARE 4.4.1. INTRODUCTION Electro static discharge does inflict irreparable damage to electronics! Before installing or  opening the unit, the installer has to discharge himself by touching a well-grounded object.  This unit must be installed in accordance with the EMC guidelines (Electro Magnetic Compatibility).

  • Page 26: Voltage Selection Sensor Supply

    Page 26 4.4.2. VOLTAGE SELECTION SENSOR SUPPLY For Intrinsically Safe applications: read chapter 5. Type PB / PC / PX (AP) - battery powered and output loop-powered applications: Terminal 11 provides a limited supply voltage of 3.2 V DC (coil signals 1.2V) for the signal output of the flowmeter.

  • Page 27: Terminal Connectors

    Page 27 4.4.3. TERMINAL CONNECTORS For Intrinsically Safe applications: read chapter 5. The following terminal connectors are available: HIGH ANALOG INPUT B TOTALIZER TOTALIZER OUTPUT SENSOR SIGNAL ALARM ALARM TYPE AA / AB / INPUT A PULSE INPUT POWER SUPPLY OUTPUT OUTPUT AI / AP / AU...
  • Page 28 Page 28 Terminal 03-04; low alarm output R2: This output is the low totalizer alarm output. Terminal 05-06; high alarm output R1: This output the high totalizer alarm output. Type OA: An active 24V DC signal totalizer alarm output is available with this option. Max.
  • Page 29 Page 29 Type OT: A passive transistor output is available with this option. Max. driving capacity 300mA@50V DC. Terminal 07-08; basic POWER SUPPLY - type PX - output loop powered: Connect an external power supply of 8-30VDC to these terminals or a 4-20mA loop. Do connect the "-"...
  • Page 30 Page 30 Type AB: An active 0-20mA signal proportional to the flowrate or percentage is available with this option. Max. driving capacity 1000 Ohm @ 24VDC. (Requires power supply type PD / PF / PM). Type AF: For the Intrinsically Safe floating 4-20mA signal: please read Chapter 5. Type AI: An isolated 4-20mA signal proportional to the flowrate or percentage is available with this option.
  • Page 31 Page 31 Type AU: A 0-10VDC signal proportional to the flowrate or percentage is available with this option. Max. load 10mA @ 10VDC. (Requires power supply type PD / PF / PM). Terminal 09-11; Flowmeter input: Three basic types of flowmeter signals can be connected to the unit: pulse, active pulse or sine- wave (coil).
  • Page 32 Page 32 Pulse-signal NPN / NPN-LP: The F117-P is suitable for use with flowmeters which have a NPN output signal. For reliable pulse detection, the pulse amplitude has to go below 1.2V. Signal setting NPN-LP employs a low-pass signal noise filter, which limits the maximum input frequency - read par. 3.2.3. Pulse-signal PNP / PNP-LP: The F117-P is suitable for use with flowmeters which have a PNP output signal.
  • Page 33 Page 33 Active signals 8.1V - 12V and 24V: If a sensor gives an active signal, please read par. 3.2.3. The detection levels are 50% of the selected supply voltage; approximately 4V (ACT_8.1) or 6V (ACT_12) or 12V (ACT_24). Active signal selection may well be desired in the case of power supply type PD, PF, PM being supplied for sensor supply.
  • Page 34 Page 34 Terminal 12-14; input B - flowmeter or external START: Exactly as described for the flowmeter A, several flowmeter signal types can be selected for flowmeter input B. Please refer to the descriptions per flowmeter type as describer for flowmeter A. The 9-10-11 do correspond with the terminals 12-13-14.

  • Page 35: Intrinsically Safe Applications

    Please Note  Certificates, safety values and declaration of compliance can be found in the document named: “Fluidwell F1..-..-XI - Documentation for Intrinsic Safety”.  Special conditions for safe use mentioned in both the certificate and the installation instructions must be observed for the connection of power to both input and / or output circuits.

  • Page 36: Terminal Connectors Intrinsically Safe Applications

    Indicated labels on the back cover (below) and on the inside cover (right) show the type labels for intrinsically safe certified units. For details on usage see the separate “Fluidwell F1..-..-IX Documentation for Intrinsic Safety”. Serial number and year of production This information can be looked-up on the display: See setup function (par.
  • Page 37 Page 37 Explanation Intrinsically Safe options: Type AF - Intrinsically Safe floating 4-20mA analog output: A floating 4-20mA signal proportional to the flowrate or percentage is available with this option. When the output is disabled, a 3.5mA signal will be generated. Max.

  • Page 38: Configuration Examples Intrinsically Safe Applications

    Page 38 5.3. CONFIGURATION EXAMPLES INTRINSICALLY SAFE APPLICATIONS Configuration example IIB /IIIC F117-P-AP-CT-OT-(PD)-XI HAZARDOUS AREA SAFE AREA TERMINAL CONNECTORS F100-series Modbus communication type CT: TTL I.S. Certified  Isolator TTL to: = max. 30 V e.g. PC RS232 = max. 250 mA RS422 = max.
  • Page 39 Page 39 Configuration example IIB/IIIC and IIC - F117-P-AP-(CT)-OT-PD-XI HAZARDOUS AREA SAFE AREA TERMINAL CONNECTORS F100-series Modbus communication type CT: TTL Please note: communciation type CT is allowed in IIC applications. I.S. Certified  Isolator TTL to: = max. 30 V e.g.

  • Page 40: Battery Replacement Instructions

    Batteries for use in safe areas have no Ex label. DO NOT EXCHANGE: Using the wrong type of battery can pose a SERIOUS RISK.  For use in hazardous areas Fluidwell recommends FW-LiBAT batteries (manufactured by Fluidwell bv) only. Battery replacement procedure Depending on the production batch, one of two visualized Intrinsically Safe certified battery types may have been installed in the unit.

  • Page 41: Maintenance

    Page 41 MAINTENANCE 6.1. GENERAL DIRECTIONS  Mounting, electrical installation, start-up and maintenance of the instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. ...

  • Page 42: Appendix A: Technical Specification

    Page 42 APPENDIX A: TECHNICAL SPECIFICATION GENERAL Display Type High intensity reflective numeric and alphanumeric LCD, UV-resistant. Digits Seven 17mm (0.67") and eleven 8mm (0.31"). Various symbols and measuring units. Refresh rate User definable: 8 times/sec - 30 secs. Type ZB Transflective LCD with green LED backlight.
  • Page 43 Page 43 Sensor excitation Type PB / PC / PX 3.2V DC for pulse signals and 1.2V DC for coil pick-up. Note: This is not a real sensor supply. Only suitable for pulse sensors with a very low power consumption like coils (sine wave) and reed-switches. Type PD 1.2 / 3.2 / 8.2 / 12 and 24V DC - max.
  • Page 44 Page 44 Alarm outputs Function two outputs: low and high totalizer alarm. Type OA Active 24V DC transistor output; max. 50mA per output (requires type AA + PD, PF or PM). Type OR Isolated mechanic relay output; max. switch power 230V AC - 0,5A (requires type PF or PM). Type OT Passive transistor output - not isolated.

  • Page 45: Appendix B: Problem Solving

    Page 45 APPENDIX B: PROBLEM SOLVING In this appendix, several problems are included that can occur when the F117-P is going to be installed or while it is in operation. Flowmeter does not generate pulses: Check:  Signal selection SETUP - 71 / 72, ...

  • Page 46: Index Of This Manual

    Page 46 INDEX OF THIS MANUAL Accumulated total low alarm output actual settings low-battery Alarm Low-battery alarm enter set value main-function high alarm value 9, 17 maintenance low alarm value 9, 17 model Alarm output NAMUR-signal Alarm value Operator level Overrun time analog 0-10V output...

  • Page 47: List Of Figures In This Manual

    Page 47 LIST OF FIGURES IN THIS MANUAL Fig. 1: Typical application for the F117-P..................... 5 Fig. 2: Control Panel..........................7 Fig. 3: Example displayed information during programming preset value........... 8 Fig. 4: Display examples of totalizer alarm value’s................9 Fig.
  • Page 48 A - OTHERS A4 pass code 0000 A5 tagnumber 0000000 Fluidwell bv HF117PEN_v0501_04 PO box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives The Netherlands The Netherlands Copyright Fluidwell bv - 2012 - HF110AEN_v0501_03...
