Commend WS 311V CM DA Manual

WS 311V CM DA
Wallmount station for barrier-free building, habitation and living

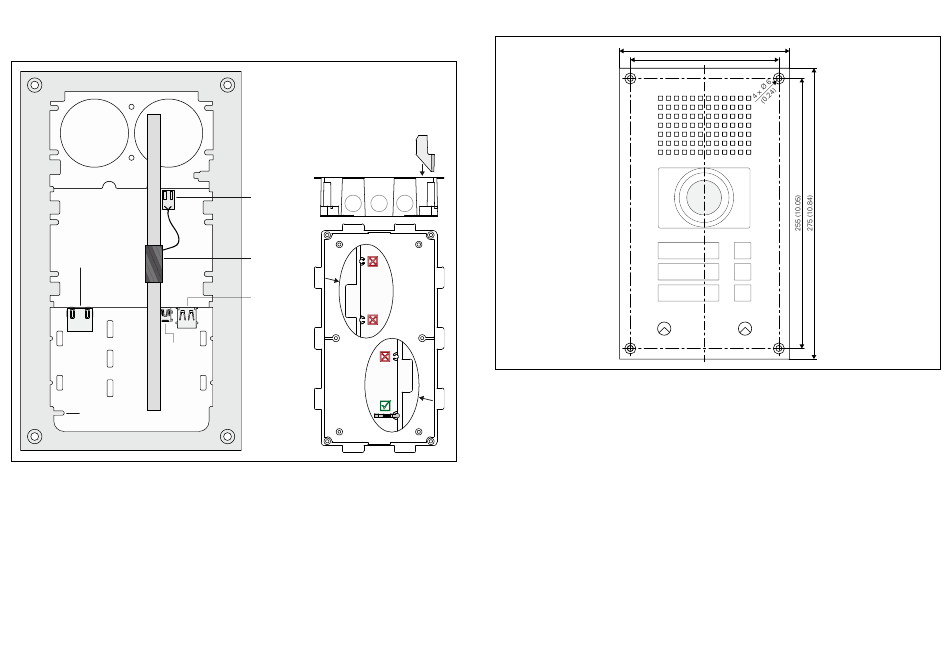

Connection diagram and tamper detection
RJ45 jack
(Ethernet/PoE)
Mini
USB
jack
(Type A)
Slot for tamper
detection
Extent of supply
• SIP station
• Screws for mounting (4 x Torx TR 25 security countersunk screws, M5x10)
• Tamper detection plate
• Claiming code
• Short reference
Access
The device can be accessed through IPv4 (DHCP), IPv6 (link-local) and zeroconf. For information on
accessing the web interface, see the product manual.
Install the tamper detection
plate (for triggering the tamper
detection alarm; in extent of
­ s upply)­into­the­flush­or­surface­
mount box as shown in the
following assembly drawing.
Connection for
induction loop
Induction coil
T
USB jack (Type A),
e.g. for connection
to an EB3E2A-AUD
expansion module
T
T
R
Dimensions
Measuring units in mm (in), not to scale! Front panel thickness: 3 mm (0.12")
160 (6.3)
140 (5.5)
