F100-C-A6-WL

Front panel
The F100-C-A6-WL firewall provides the following ports on the front panel:
•
Eight 10/100/1000BASE-T autosensing Ethernet copper ports.
•
One USB port.
•
One console port.

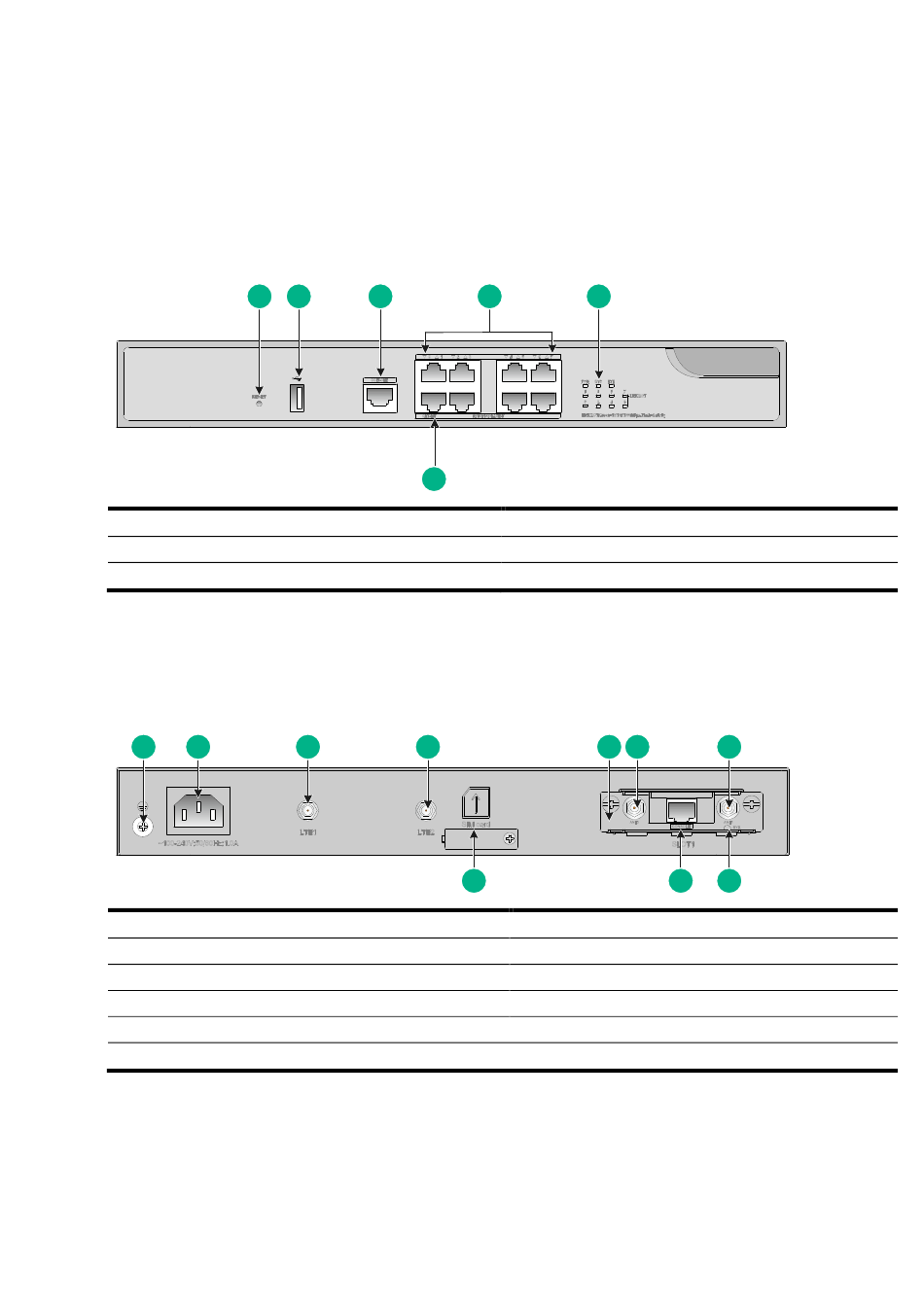

Figure1-18 Front panel
(1) Reset button
(3) Console port
(5) LEDs
Rear panel
The F100-C-A6-WL firewall provides one AC-input power receptacle, two 4G antenna ports, one
SIM card slot, and one WLAN module.
Figure1-19 Rear panel
1 2
(1) Grounding screw
(3) 4G antenna connector 1
(5) WLAN module
(7) Wi-Fi antenna connector 1
(9) WLAN module console port (used by technical support for debugging only)
(10) SIM card slot
1 2 3
3 4
4 5
6
(2) USB port
(4) 10/100/1000BASE-T copper ports
(6) Management Ethernet port GE1/0/0
10
(2) AC-input power receptacle
(4) 4G antenna connector 2
(6) Wi-Fi antenna connector 0
(8) WLAN module status LED
29
5 6 7
9 8
