Appendix A Chassis views and technical
specifications

Chassis views

F100-C-A3-W/F100-C-A5-W

Front panel
The F100-C-A3-W/F100-C-A5-W firewall provides the following ports on the front panel:
•
Eight 10/100/1000BASE-T autosensing Ethernet copper ports.
•
One USB port.
•
One console port.

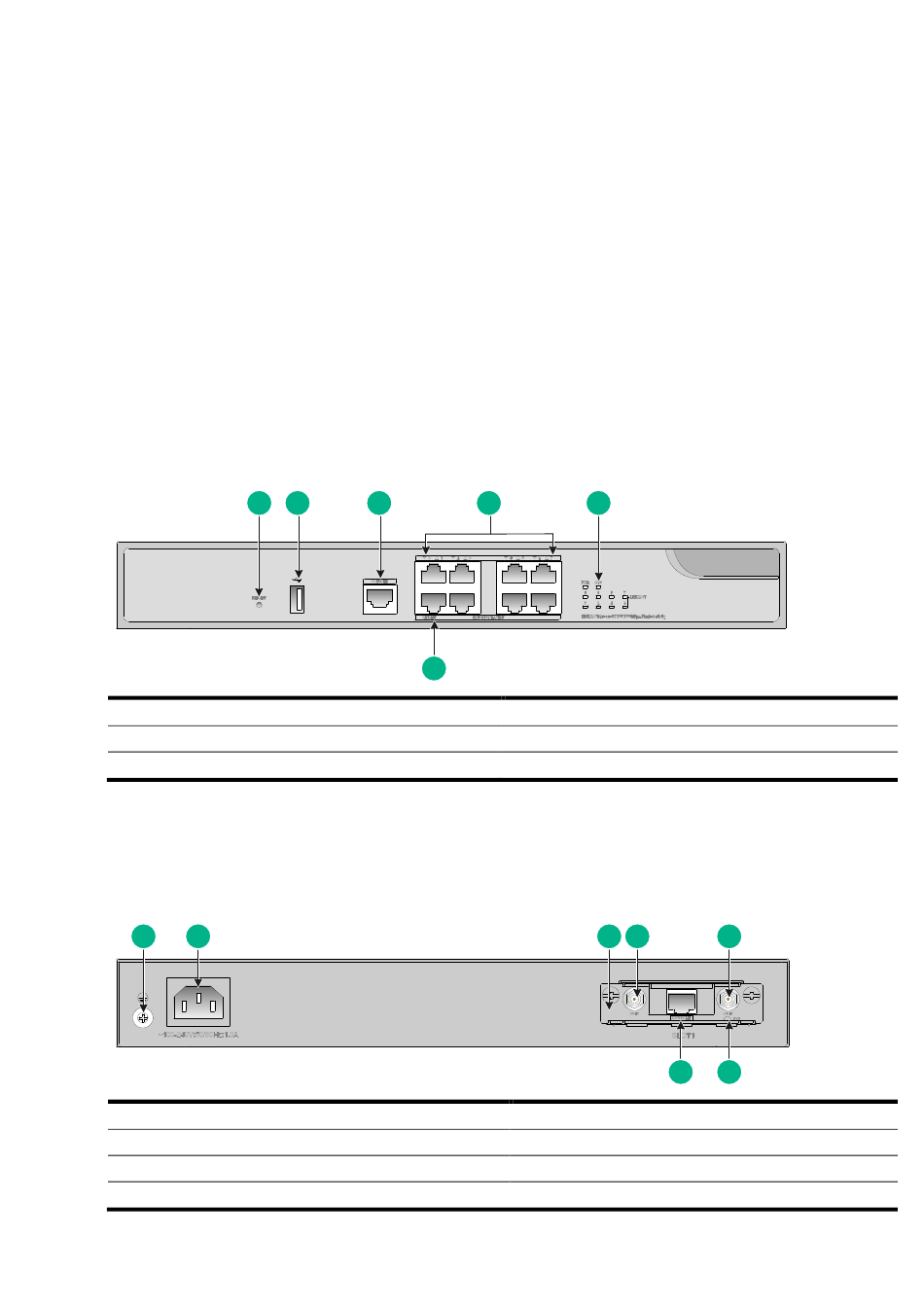

Figure1-16 Front panel
(1) Reset button
(3) Console port
(5) LEDs
Rear panel
The F100-C-A3-W/F100-C-A5-W firewall provides one AC-input power receptacle and one WLAN
module on the rear panel.
Figure1-17 Rear panel
1 2
(1) Grounding screw
(3) WLAN module
(5) Wi-Fi antenna connector 1
(7) WLAN module console port (used by technical support for debugging only)
1 2 3 4 5
6
(2) USB port
(4) 10/100/1000BASE-T copper ports
(6) Management Ethernet port GE1/0/0
(2) AC-input power receptacle
(4) Wi-Fi antenna connector 0
(6) WLAN module status LED
28
3 4 5
7 6
