Simons Voss Technologies SmartRelais 3 Leser Quick Manual page 34

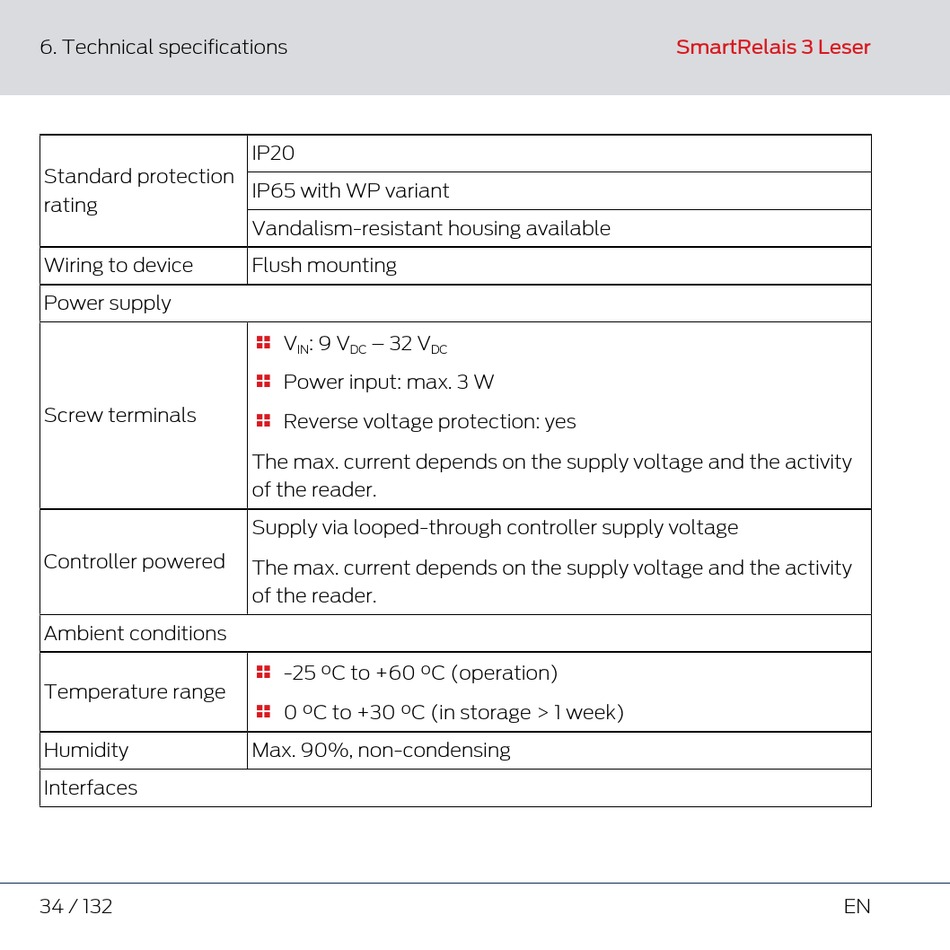

6. Technical specifications
Standard protection
rating
Wiring to device
Power supply
Screw terminals
Controller powered
Ambient conditions
Temperature range
Humidity
Interfaces
34 / 132
IP20
IP65 with WP variant
Vandalism-resistant housing available
Flush mounting
V : 9 V – 32 V

IN DC DC
Power input: max. 3 W

Reverse voltage protection: yes

The max. current depends on the supply voltage and the activity
of the reader.
Supply via looped-through controller supply voltage
The max. current depends on the supply voltage and the activity
of the reader.
-25 °C to +60 °C (operation)

0 °C to +30 °C (in storage > 1 week)

Max. 90%, non-condensing
SmartRelais 3 Leser
EN
