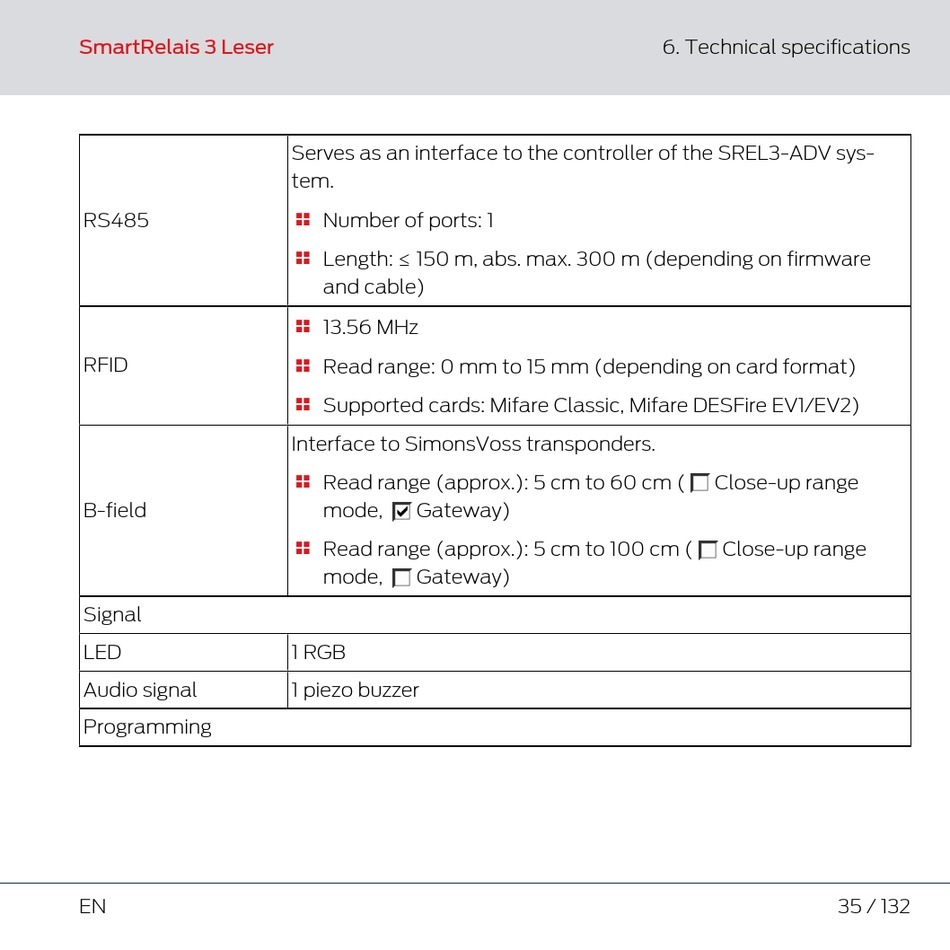

SmartRelais 3 Leser
RS485
RFID
B-field
Signal
LED
Audio signal
Programming
EN
Serves as an interface to the controller of the SREL3-ADV sys-
tem.
Number of ports: 1

Length: ≤ 150 m, abs. max. 300 m (depending on firmware

and cable)
13.56 MHz

Read range: 0 mm to 15 mm (depending on card format)

Supported cards: Mifare Classic, Mifare DESFire EV1/EV2)

Interface to SimonsVoss transponders.
Read range (approx.): 5 cm to 60 cm (

mode, Gateway)
Read range (approx.): 5 cm to 100 cm (

mode, Gateway)
1 RGB
1 piezo buzzer
6. Technical specifications
Close-up range
Close-up range
35 / 132
