3 – H
, T S
ANDLING RANSPORT AND TORAGE
3.1 Packing
Each unit is put on bench and covered with cardboard packaging; the packaging shall remain intact until the moment of
installation. It is allowed to stack up max one similar unit or a smaller one over the ground unit.
Optional or optional sections not mounted for technical reason (for instance, in order to avoid damage of protruding parts)
are supplied in fitted packing fixed externally or internally to the unit.
Recycle and dispose of packing material in conformity with local regulations, be extremely careful not to damage the unit
and the environment.
3.2 Handling
Comply with the current safety regulations concerning the equipment to use when handling the unit or the required ways
of operating. Use single protection devices as goggles, gloves, helmets... when handling the unit to avoid risk of injuries.

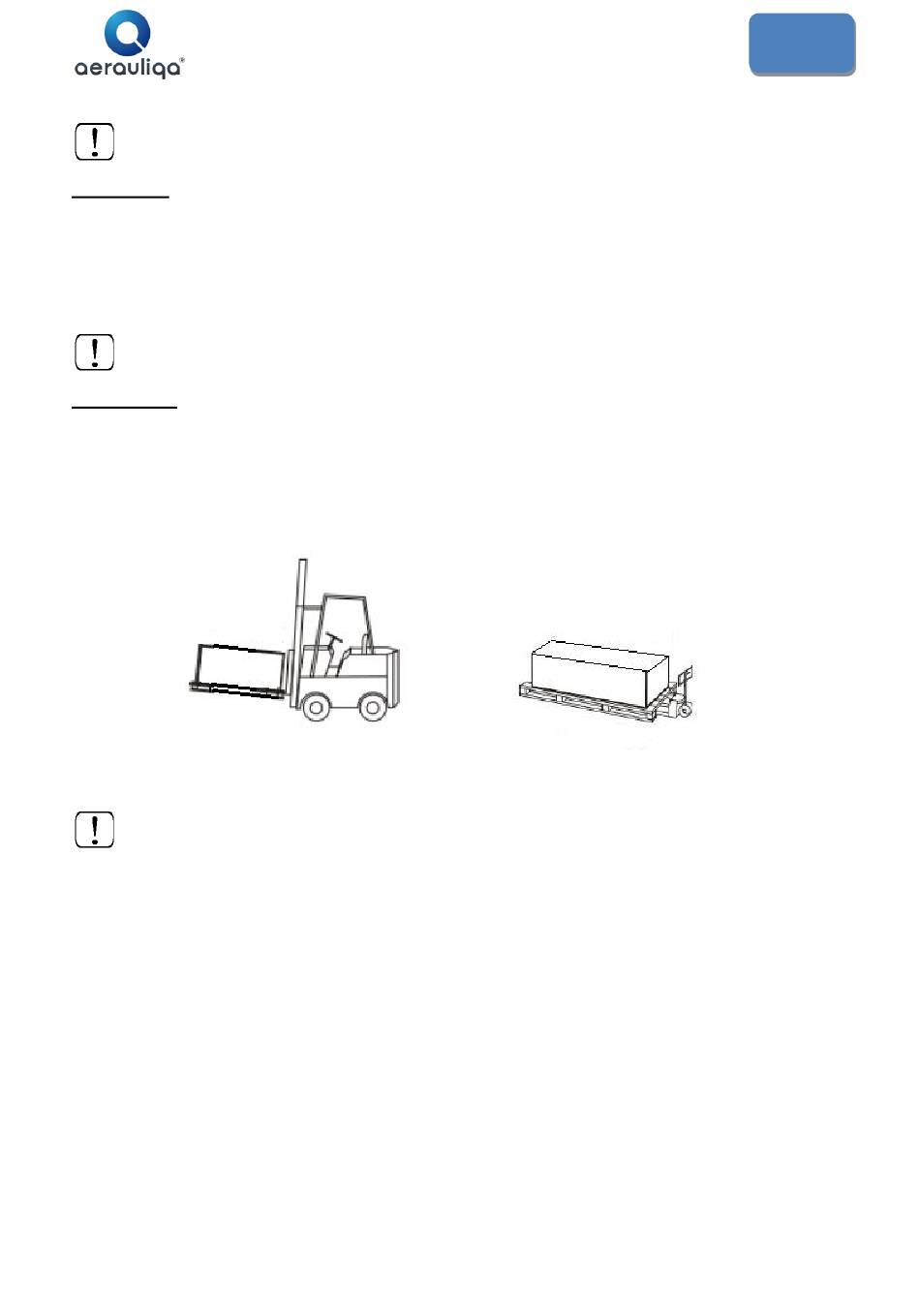

For the lifting, use hand pallet truck or forklift truck, by forking the bench (fig. 2).
Each individual unit weight is shown in this manual (Chap. 2).
While moving, try to avoid rotation without control.
Fig. 2
Check the weight of the unit before moving and handling. Handle the packed unit with care and avoid shocks and jolts;
they may damage functional parts of the unit.
To safeguard persons and property, read the information on the packing that covers the unit before handling.
Also make sure to :
• Handle the unit to the installation place or to the store with the packaging intact
• Do not stack other objects on top of the unit
Before placing the unit, take into account overall dimensions and the technical spaces of the whole air system in order to
make electric, air and water connections easy and accessibility unimpeded.
Neglecting these aspects may decrease performance and operational life of the unit and therefore increase the
operating costs and maintenance.
Unit is designed to be installed INSIDE or OUTSIDE (roof cover needed), fixed to suitable supporting structures.
Before installing the unit be sure that :
• the location is in a safe accessible place
• the framework or the floor or the ceiling is adequate to support the weight of the unit and its possible options (see previous
Chap. 2)
• support points are leveled and aligned
• installation place can't be subject to flooding
• fresh air intake and exhaust air outlet shall be free and not clogged (for instance, by snow, leaves, etc.)
