1 - I
NTRODUCTION
Dear Customer,
this ventilation unit with air-to-air counterflow heat recovery has been designed and developed for civil (not residential) and
commercial applications and allows the room air renewal while minimizing primary energy consumption; therefore, it shall
be used only for this purpose.
The Manufacturer will not respond about any damage due to a different, improper and not right use, or to a use not
described in this manual.
These units are suitable for a working environment free of aggressive, corrosive and/or explosive agents, which
can irreparably damage their components and structures.
Working environment shall be characterized by air temperature not lower than -20°C and not higher than 45°C
and by relative humidity not higher than 95%.
For special or out of range applications first contact Aerauliqa for a feasibility analysis.

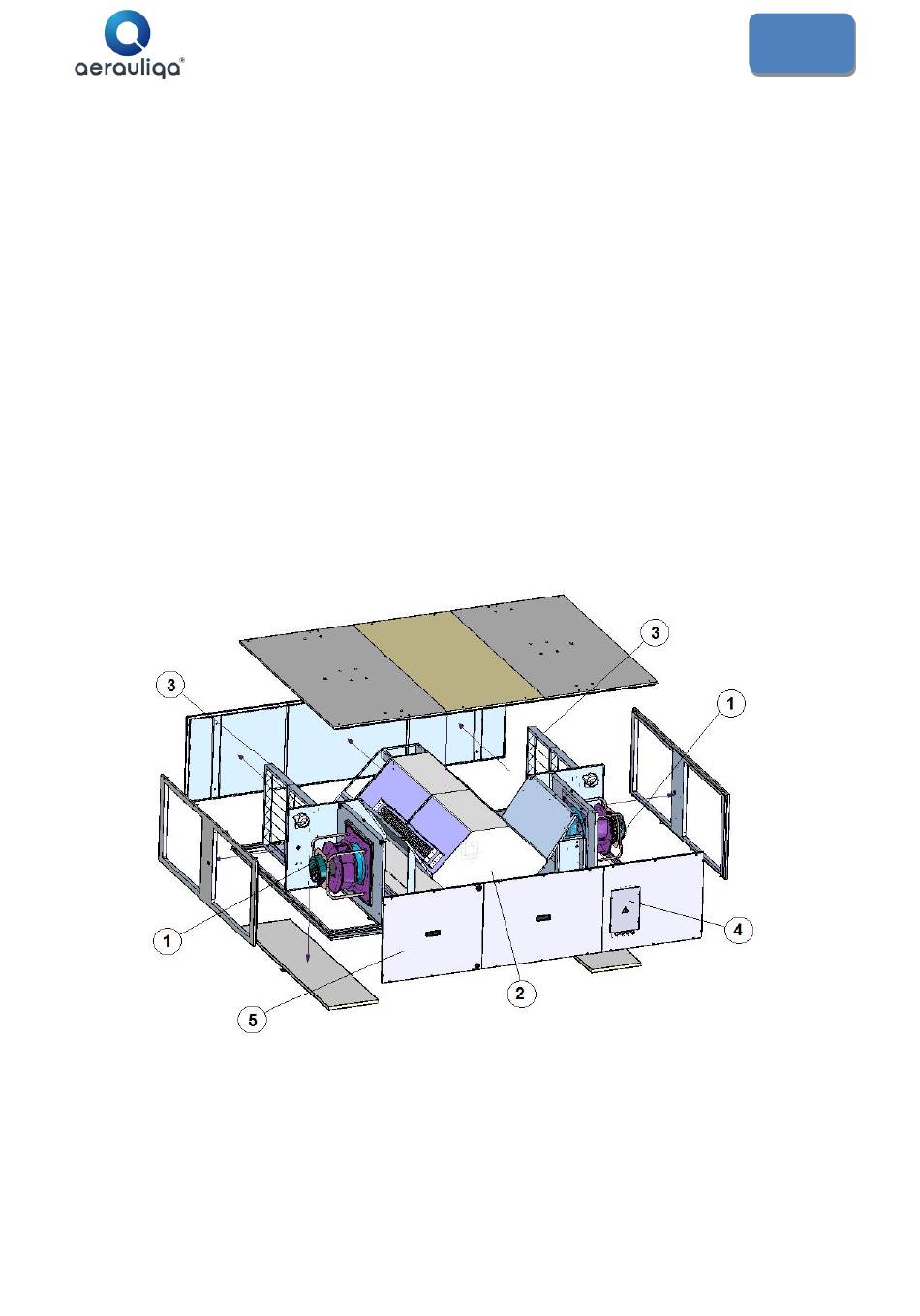

This unit, in its basic configuration, is essentially composed of (fig. 1) :
1 – supply and exhaust EC fan
2 – high efficiency air-to-air heat recovery with built-in motorized by-pass device
3 – air filter close to air inlet (class efficiency : F7 on fresh air, M5 on return air)
4 – built-in electric box complete with controller (and remote user interface)
5 – self-supporting panels
Fig. 1
This unit may be integrated with traditional heating and cooling systems, but it can operate also autonomously if equipped
with the proper accessories.
.
