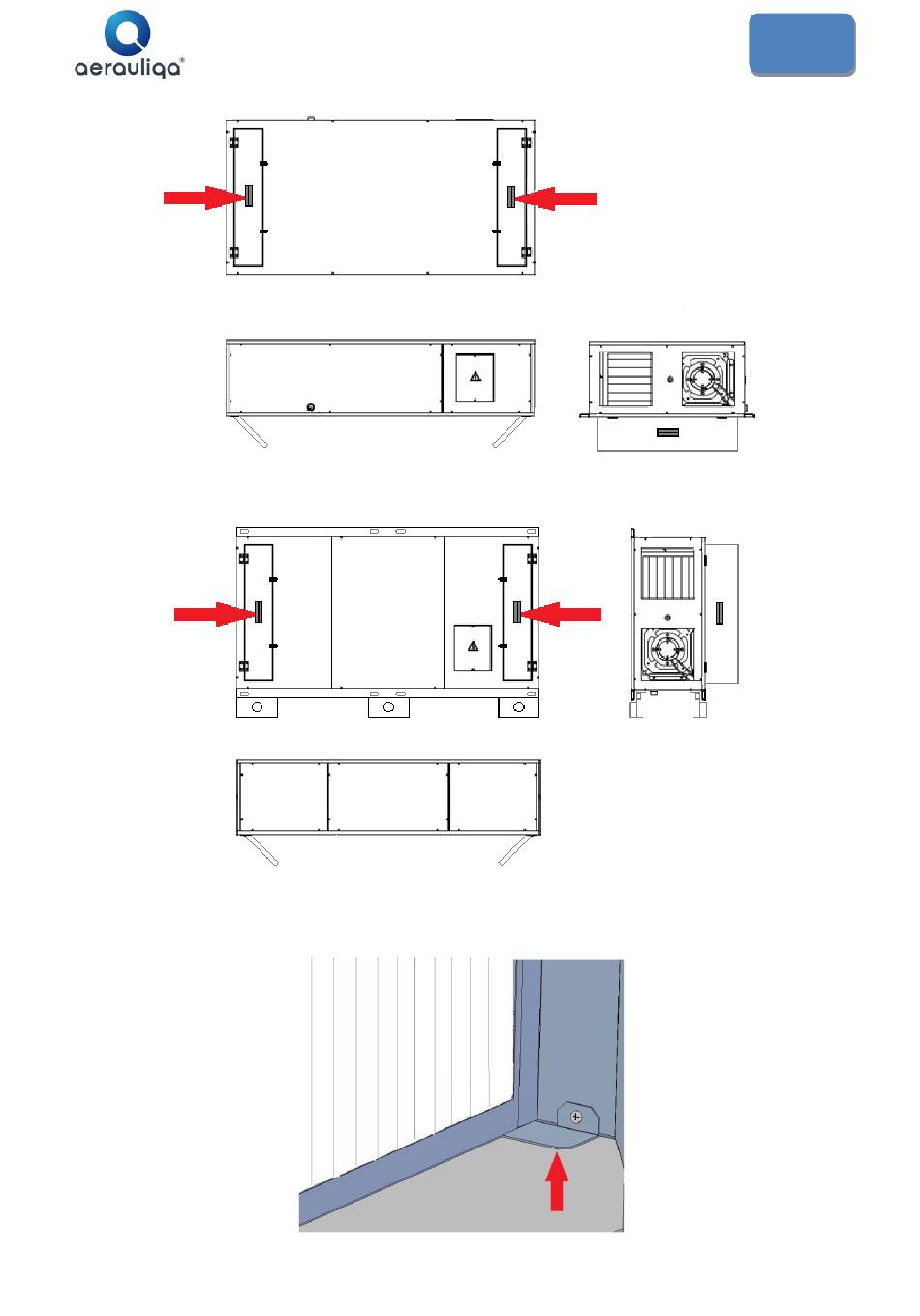

Fig. 12a
Fig. 12b
Once the door is open, the slipping of filter elements is prevented by a filter locking plate to be turned 90°(use a Phillips
head screwdriver); after remounting filter elements, turn the locking plate in the opposite direction to the contact with filter
frame, then block it (fig. 12c) :
Fig. 12c
