aerauliqa QRCE Series Installation, Operation And Maintenance Manual page 13

•

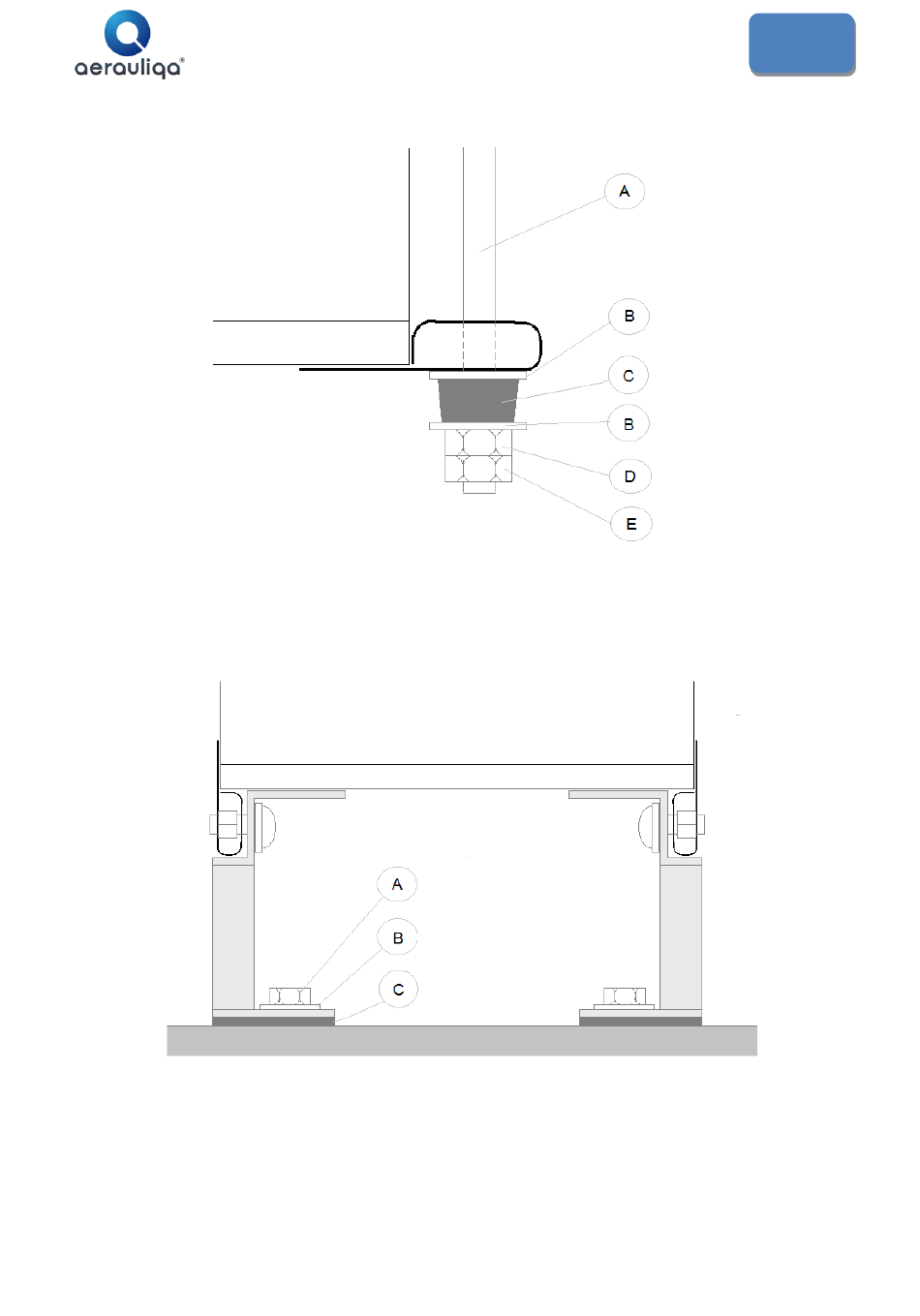

For horizontal version unit, use M8 threaded bars (or similar) crossing each supporting point of the unit bracket;
always interpose vibration dampers between unit bracket and bars (fig. 8).
•
Be sure that unit is leveled both completely closed and with one side filter panel open; each side filter
panel may be removed and remounted easily. If not, adjust opportunely the tightening on the bars.
•
For vertical version unit, fix the supporting feet to the floor (or to the supporting framework), by interposing an
antivibration layer (fig. 9); if adjacent to a vertical wall, it is also suggested to block the upper bracket on it, once
moved on the opposite side to that of access doors (see previous fig. 7).
MIUM0018_REV06_ QRCE_20180312-MIUM-ENG-AQ
Fig. 8
M8 screw
tesControdado
Washer
Antivibration layer
ENG
Threaded bar
filettata
Washer
Vibration damper
damperivibrante
Washer
Nut
Locknut
Fig. 9
AQ_001523_02_0721
13
