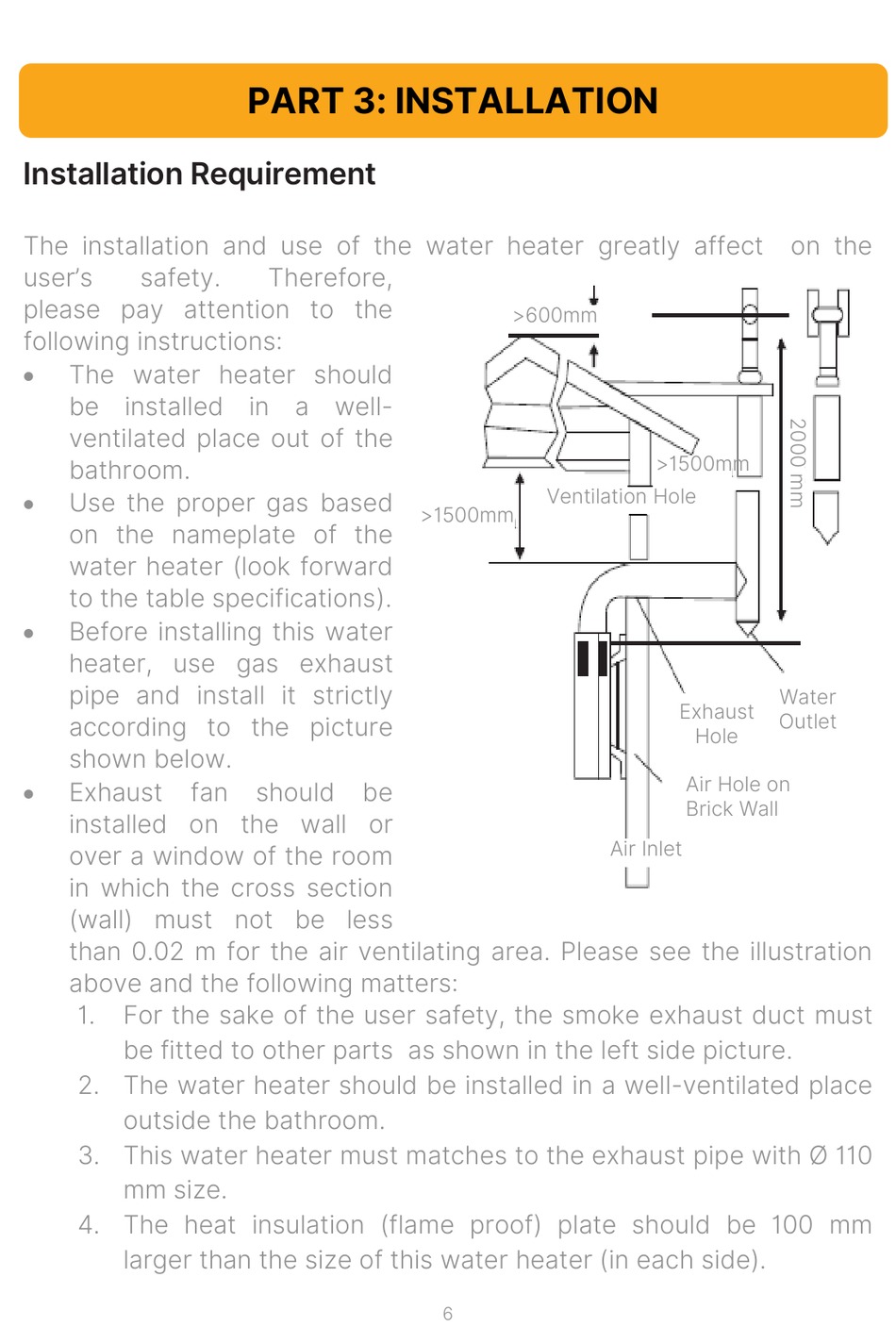

Installation Requirement

The installation and use of the water heater greatly affect
user's safety.
please pay attention to the
following instructions:

The water heater should
be installed in a well-
ventilated place out of the
bathroom.

Use the proper gas based
on the nameplate of the
water heater (look forward
to the table specifications).

Before installing this water
heater, use gas exhaust
pipe and install it strictly
according to the picture
shown below.

Exhaust fan
installed on the wall or
over a window of the room
in which the cross section
(wall) must not be less
than 0.02 m for the air ventilating area. Please see the illustration
above and the following matters:
1. For the sake of the user safety, the smoke exhaust duct must
be fitted to other parts as shown in the left side picture.
2. The water heater should be installed in a well-ventilated place
outside the bathroom.
3. This water heater must matches to the exhaust pipe with Ø 110
mm size.
4. The heat insulation (flame proof) plate should be 100 mm
larger than the size of this water heater (in each side).

PART 3: INSTALLATION

Therefore,
should be
>600mm
Ventilation Hole
>1500mm
m
6
>1500mm
Exhaust
Outlet
Hole
Air Hole on
Brick Wall
Air Inlet
on the
Water
