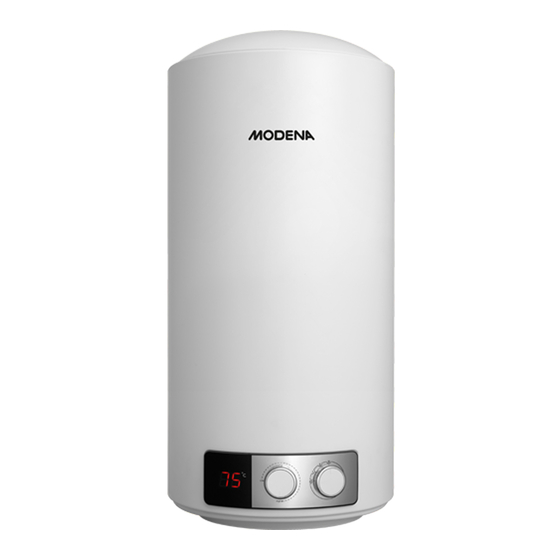

- Page 1 User Manual Book Electric Storage Water Heater Tondo Series ES 30VD, ES 50VD, ES 80VD ES 100VD Disteso Series ES 30HD, ES 50HD, ES 80HD ES 100HD...
-
Page 2: Table Of Contents
Part 6: Troubleshooting Part 7: Disposal of Used Product Part 8: Specification Appendix: Wiring Diagram This manual book explains everything you need to know about your new product. Please contact our Customer Care should you need further assistance through www.modena.com. -
Page 3: Part 1: Important Safety Information
Incorrect installation and use of this water heater may result in serious injuries and loss of property. Special Caution If the supply cord is damaged, it must be replaced by MODENA technicians, MODENA service agent or similarly qualified persons in order to avoid a hazard. ... - Page 4 The pressure relief valve that is attached with the water heater must be installed at the cold water inlet of this appliance (see Picture 1), and make sure it is not exposed in the foggy. The water may be out-flowed from the pressure relief valve, so the outflow pipe must be opened wide towards the air.
- Page 5 If the flexible power supply cord is damaged, the special power cord provided by MODENA must be selected, and replaced by MODENA maintenance personnel (technician). If any parts and components of this electrical storage water heater are damaged please contact MODENA Customer Care for repair.
-
Page 6: Part 2: Product Introduction
Opened Water Drainage Valve Position Fixed Screw Nail Water Outlet Handle for Water Safety Valve Drainage Valve Picture 2 Picture 3 PART 2: PRODUCT INTRODUCTION Nomenclature (The Terms to Classified Product Types and Names) ES XXVD, ES XXHD = the product code of the electric storage water heater; = the capacity of the water heater (L);... -
Page 7: Brief Introduction Of Product Structure
Brief Introduction of Product Structure ES XXHD Machine Body Power Cord Power Controller Knob Temperature Controller Temperature Knob Display Hot Water Outlet Cold Water Inlet ES XXVD Power Cord Machine Body Cold Water Inlet Temperature Controller Knob Temperature Power Display Controller Knob Hot Water Outlet... -
Page 8: Part 3: Installation
1.8 m (see Picture 7). If there is problem on the power cord, the cord should be replaced by MODENA agents or qualified person who is able to do the replacement and repair so as to ensure the safety. -
Page 9: Plumbing Connection
Picture 6 L (Brown) E (Yellow/Green) ≥1.8 m Ground N (Blue) Picture 7 If the size of the bathroom is too small, the water heater can be installed at another place. However, the water heater should be installed closely to the stand-point of hot water use (bathroom) to optimize the heat of the water. - Page 10 Picture 8 Rubber Gasket Rubber Gasket Cold Water Inlet Pipe Hot Water Outlet Pipe Pressure Relief/Safety Valve Nut for Hot Water Outlet Pressure Relief Hole Handle for Copper Nut for Water Inlet Mixing Water Valve Shower If the users want to utilize a multi-way supply system, refer to the method shown in Picture 9 for connection of the plumbing.
-
Page 11: Part 4: How To Use
NOTE Please be sure to use the accessories provided by MODENA to install this electric storage water heater. This electric storage water heater cannot be hung on the bracket until it has been confirmed to be firm and reliable. Otherwise, this water heater may drop off from the wall, resulting to its damage, even serious accidents of injury to the user. -
Page 12: Operating The Water Heater
Indicator Light Power Plug Testing Button Picture 10 Reset Button If the indicator lights turn on, the thermostat will automatically control the temperature. When water temperature inside the heater has reached the set point, water heater will switch off automatically. -
Page 13: Function Introduction
Function Introduction Display function: displays the actual temperature and the temperature setting. Heating function: within 30 C to 75 C to set the heating temperature. Safety function: with anti-dry protection, overheat protection to keep safe when using. Product Features ... - Page 14 Manual Reset Button Picture 12 WARNING! Non-professionals are not allowed to disassemble the thermal switch to do the reset. Please contact professionals of MODENA to maintain this electric storage water heater. Otherwise, MODENA will not take responsibility of any accidents.
-
Page 15: Tank Cleaning
If the water has good enough quality (PAM), magnesium anode should be replaced within 2 (two) years. If the water quality is not good, magnesium anodes should be replaced 1 (one) year. To replace the magnesium anodes, contact MODENA Customer Care. -
Page 16: Heating Element
(slow heat) because it was covered by a crust of lime (mud). Therefore, the heating element must be cleaned of each year. Contact MODENA Customer Care for cleaning. PART 6: TROUBLESHOOTING Check the things below before contacting MODENA Customer Care in the moment of operation disturbance: Problem Possible Cause... -
Page 17: Part 7: Disposal Of Used Product
Problem Possible Cause Recommended Action Water temperature is Failures on the temperature Contact MODENA Customer too high. control system. Care for repair. 1. Seal up the piping 1. Trouble on the seal for connection. each connected pipes. 2. Tighten the connection. -
Page 18: Part 8: Specification
PART 8: SPECIFICATIONS Model ES 100VD ES 80VD ES 50VD ES 30VD Type Tank (Storage) Installation Vertical Heat Source Electricity Heating Tank Stainless Steel Material Heating Tank Coating Titanium Porcelain Enamel Temperature Setting Power Selection Temperature Display Electric Safety (ELCB) Overpressure Safety Thermostat Double... - Page 19 Model ES 100HD ES 80HD ES 50HD ES 30HD Type Tank (Storage) Installation Vertical Heat Source Electricity Heating Tank Stainless Steel Material Heating Tank Titanium Porcelain Enamel Coating Temperature Setting Power Selection Temperature Display Electric Safety (ELCB) Overpressure Safety Thermostat Double Grounding Terminal...
-
Page 20: Appendix: Wiring Diagram
APPENDIX: WIRING DIAGRAM ES XXHD Transformer Display Thermal Cut-out Thermostat Power Input Switch ES XXVD Transformer Display Thermal Thermostat Power Input Switch Cut-out Picture 13... - Page 21 12/20...
