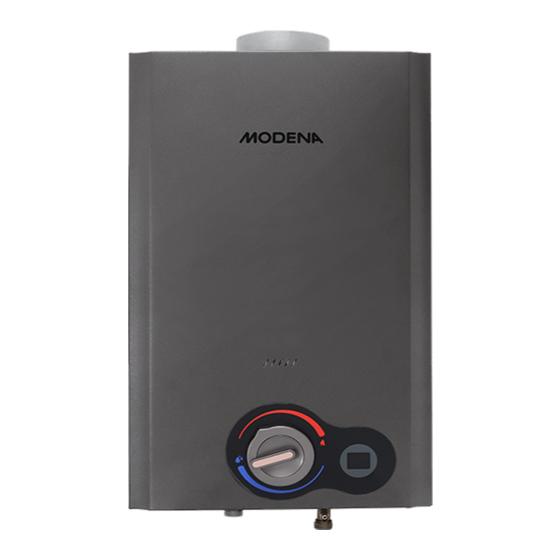

- Page 1 User Manual Book (Gas Instant Water Heater) Rapido Series GI 1020 B, GI 0620 B...
-
Page 2: Introduction
Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product. -
Page 3: Table Of Contents
CONTENTS PAGE. Introduction Part 1 : Name of Parts Part 2 : Important Safety Information Part 3 : Characteristics and Usage Part 4 : Installation Part 5 : How to Use Part 6 : Preventive Action ... -
Page 4: Part 1: Name Of Parts
In the case of a failure and/or malfunction, all repairs or settings must be done with maximum care and attention by qualified technicians. For this reason, we recommend you to contact MODENA Call Center, explaining the trouble in details and mention the name of the model. ... -
Page 5: Part 3: Characteristics And Usage
If there any questions about the operation procedure and the safety instruction, contact MODENA Call Center Part 3: Characteristics and Usage The gas instant water heater can supply the hot water quickly and continuously, so it is suitable to provide hot water for bathing, washing and other cleaning. - Page 6 4. Do not install the water heater in the confined room. Install the water heater in well-ventilated room with a volume more than 7,5 m . There should be an air inlet with a cross section more than 0.06 m connected to the outdoor.
- Page 7 10. For the liquefied petroleum gas (LPG) users, use the qualified gas pressure regulating valves and hoses to ensure the water heater a proper operation and security use. For pipeline gas users, ask the gas company or the relevant management authority to connect the gas pipe. 11.
- Page 8 2. Cautions for the installation of smoke exhaust pipe : a. The water heater must be installed with smoke exhaust pipe during the use. The pipe dimension refers to the „Specification‟ section in this manual book. The pipe should be installed according to the requirements in this manual.
-
Page 9: Part 5: How To Use
d. Install a rubber ring seal between the gas inlet and the hose connector. The rubber hose must be connected to the red line of hose connector and must be fastened with a clamp. e. After finishing the installation, use soapy water to check whether there is gas leak or not. Note: ... - Page 10 Ignition/Operation 1. Ignition. After finishing the preparation, open the hot water outlet valve and the water heater will make “pop” sound, then the hot water will immediately flow out. If the water heater cannot be ignited at once, switch the hot water outlet valve off and restart it after 15 – 20 seconds. 2.
-
Page 11: Part 6: Preventive Action
Turn off the water heater and contact MODENA Call Center or the gas company. 6. It is forbidden to operate the troubled water heater. Contact MODENA Call Center once any... - Page 12 failure occurs. 7. This water heater is only used for hot water supply and shower. Do not use it for any another purposes. Fire Prevention 1. Do not go out or go to bed while the water heater is on. 2.
- Page 13 If the abnormalities are detected such as gas leak, abnormal combustion (tempering, flame lifting, yellow smoke or black smoke emission), peculiar smell and abnormal sound, or other emergency situations, immediately shut the gas valve off and contact MODENA Call Center or the gas provider company to achieve the solution (recommended actions).
- Page 14 Maintenance 1. Frequently check whether the Gas Inlet Pipe (rubber hose) is in good condition and there are no troubles caused by aging and defectiveness. Regularly change the rubber hose and frequently use the soapy water to identify whether there is a gas leak by checking the bubble appearance at the pipeline connectors.
-
Page 15: Part 7: Troubleshooting
Repairing Service 1. The water heater must be regularly checked and cleaned by professional technician. 2. Non-professional technician may not open the front cover of the water heater. Packing List Name and Illustration Quantity Name and Illustration Quantity Water Heater 10L: Plastic Plug Tapping Screw, M6 Instruction Manual Expansion Screw... - Page 16 • Power is not switched on. Switch on the power. cannot be • Gas pressure is improper. Contact MODENA Call Center to turned on. check the pressure regulator valve. • Water supply (inlet) pressure is Fully open the water inlet valve and...
-
Page 17: Part 8: Specification
Part 8: Specification MODEL GI 0620 B GI 1020 B Gas Type Rated Gas Pressure 2800Pa Rated Thermal Load 12kW 20kW Control Mode Outlet Control Exhaust Type Flue Type Water Control Automatic Continuous Pulse Ignition Method Ignition Applicable Water Pressure 0.025~0.8MPa Rated Hot Water Yield Capacity (Temperature... - Page 18 11/20...
