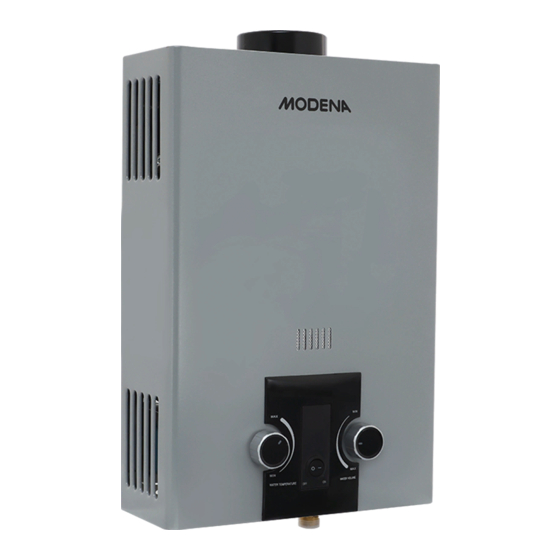

- Page 1 User Manual Book Gas Instant Water Heater Rapido Series GI 6A V, GI 0632 V...
-
Page 2: Table Of Contents
Part 6: Troubleshooting Part 7: Specification Appendix: Wiring Diagram GI 6A V GI 0632 V This manual book explains everything you need to know about your new product. Please contact our Customer Care should you need further assistance through www.modena.com. -
Page 3: Part 1: Important Safety Information
To avoid the great harm for human health or even death caused by excessive carbon monoxide inhalation, MODENA sincerely advise all users to: Read this manual book carefully before installing and operating the water heater for the first time. -
Page 4: Part 2: Name Of Parts
PART 2: NAME OF PARTS Waste Gas Outlet GI 6A V Front Cabinet Rear Cabinet Flame Observation Water Input Window Controller Knob On/Off Switch Temperature Display Air Inlet Gas Input Controller Knob Battery Box Gas Inlet Hot Water Outlet Cold Water Inlet GI 0632 V Waste Gas Outlet Front Cabinet... -
Page 5: Characteristics And Usage
Characteristics and Usage This gas instant water heater can supply hot water quickly and continuously, so it is suitable to provide hot water bathing, washing and other cleaning. This type of water heater includes the following features: a. Simple Operation ... -
Page 6: Part 3: Installation
PART 3: INSTALLATION Installation Requirement The installation and use of the water heater greatly affect on the user’s safety. Therefore, please pay attention to the >600mm following instructions: The water heater should be installed in a well- ventilated place out of the >1500mm bathroom. -
Page 7: Water Heater Body Installation
The water heater must not be installed in a place near the flammable objects. All the required distances for installation are shown below: Flammable Wall Flammable Articles >150 mm >400 mm >400 mm >250 >250 Flame-proof Plate Do not install the water heater near to the exhaust holes of air conditioner. -
Page 8: Cold Water Pipe Connection
Cold Water Pipe Connection G ½threaded pipe should be used. Before installation process, please pay attention to the water pressure. The water pressure will turns on or turns off the gas valve automatically. Make sure minimum of the water pressure is 0.015 MPa. - Page 9 Rigid Pipe Pipe Main Valve of Water Supply (Inlet) If the installation position of the hot water outlet valve is higher than the appliance, the water will not be able to wholly flow out, so another valve should be installed in a lower position than the appliance.
-
Page 10: Gas Pipe Connection
Gas Pipe Connection Water Heater The connection of the gas inlet pipe should use G ½ threaded tube. When liquidated petroleum gas (LPG) is Pipe Joint used, first connected the gas inlet hose Rubber joint (in the accessory package) to the Ring/ Seal gas supply pipe joint of the water heater. -
Page 11: Battery Installation
Battery Installation This water heater uses two batteries with R20S type and D1.5V size. During the installation, open the cover of battery box first; install the batteries according to the positive and negative poles; then, re-cover the box. NOTE Tighten the batteries fast unless they would fall down. -
Page 12: Supplying Hot Water
Supplying Hot Water Turn on the gas switch. 2. Open the valves of both cold and hot water supply lines. The burner ignites at once, and the hot water will flows out. If the pressure of the water supply are too low, then turn the water volume controller knob to high (maximum) position. -
Page 13: Note In Using The Gas Instant Water Heater
When you smell the odor, turn off the gas supply switch at once; open the door and windows to let the gas out. At this time, do not turn on any electric switches or any tools that make any fire or spark. After that, find the problem and contact MODENA Customer Care. - Page 14 If abnormal odor is detected during use, you should immediately stop using it, and contact MODENA Customer Care. The Following Conditions are Normal (not Trouble) Minimum used water pressure : the gas valve of this water heater will be active according to the water pressure.
-
Page 15: Part 5: Maintenance
NOTE If the fire often extinguishes during use, there may be some defects. Please contact MODENA Customer Care. PART 5: MAINTENANCE • This gas instant water heater must be checked by professionals every 6-12 months. -
Page 16: Part 6: Troubleshooting
• Water heater maintenance by the user : Clean off the dirt and dust accumulation on the surface of the water heater with the cloth regularly. Do not use chemical that can change the color of the surface. 2. Clean off the dust and the carbon accumulation inside of the ventilation pipe and the heat exchanger regularly to smooth out the smoke line. -
Page 17: Part 7: Specification
PART 7: SPECIFICATION Model GI 6A V GI 0632 V Type Instant Instant Color Silver Dark Silver Heat Source Exhaust type Flue style Flue style Rated hot water capacity Battery D1.5V 2 pcs 2 pcs Installation Vertical Vertical Thermostat Double Double Suitable water pressure 0.015 MPa-0.8 MPa... -
Page 18: Appendix: Wiring Diagram
APPENDIX: WIRING DIAGRAM GI 6A V Controller Battery Box Ignition Dry-heating Flame Protection Feedback Sensor Sensor Temperature Ground Ignition Thermostat Display Burner Temperature Solenoid Valve Sensor for Water Output On/Off Switch... - Page 19 GI 0632 V Controller Battery Box Ignition Dry-heating Flame Protection Feedback Sensor Sensor Ground Temperature Ignition Thermostat Display Burner Temperature Solenoid Valve Sensor for Water Output...
- Page 20 12/20...
