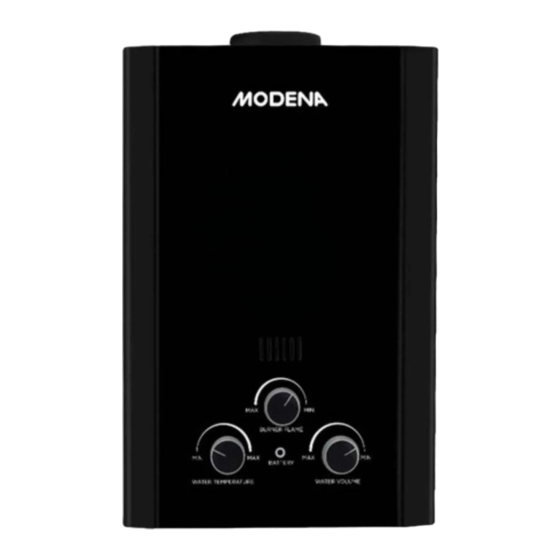

Modena GI 0631 L User Manual Book

Gas instant water heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User
Manual Book
Gas Instant Water Heater
Rapido Series
GI 0631 L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GI 0631 L and is the answer not in the manual?

Questions and answers

Related Manuals for Modena GI 0631 L

Summary of Contents for Modena GI 0631 L

  • Page 1 User Manual Book Gas Instant Water Heater Rapido Series GI 0631 L...

  • Page 2: Table Of Contents

    Temperature Control Turning Off the Water Heater Part 5: Maintenance Part 6: Troubleshooting Part 7: Specification This manual book explains everything you need to know about your new product. Please contact our Customer Care should you need further assistance through www.modena.com.

  • Page 3: Part 1: Important Safety Information

    To avoid the great harm for human health or even death caused by excessive carbon monoxide inhalation, MODENA sincerely advise all users to:  Read this manual book carefully before installing and operating the water heater for the first time.

  • Page 4: Part 2: Name Of Parts

    PART 2: NAME OF PARTS Flame Observation Window Flame Controller Knob Water Temperature Water Volume Controller Knob Controller Knob Battery Indicator *Features depend on the type of product PART 3: INSTALLATION Installation Requirement  Do not install the water heater in a bedroom, basement, bathroom, or any room with poor ventilation.

  • Page 5: Indoor Installation Position

     No cord or electric equipment should be put above the water heater. The water heater should be kept at least 40 cm away from the electronics horizontally. The water heater should be kept away from any flammable substance or liquid. ...

  • Page 6: Hanger Installation

    Hanger Installation Heat- Hanger Resistant Hanger Wall Fishcer (Plastic Anchor Drilled Holes on the Wall Bolt) Screw Fischer Hole Depth > (±3 – 5 mm) Hanger If the wall is not heat-resistant, it is recommended to coat it with a Fishcer heat-resistant board that is 100 Screw...

  • Page 7: Ventilation Pipe Installation

    Ventilation Pipe Installation The water heater must have ventilation pipe. The installation of the ventilation pipe must be in accordance with follow matters:  The height of the ventilation pipe must be in accordance so that it Ventilation Pipe can exhaust the smoke out. ...

  • Page 8: How To Install Ventilation

    How to Install the Ventilation  The air hole must be on the good ventilating position and placed 1/2 under the height of the room.  The pipe hole must be made outside, close from the upper part of the room, and far from the ventilation pipe. Thermal Load (KW) Minimum Area for the Air Hole and Pipe Hole (cm3) <...

  • Page 9: Valve Installation

    Valve Installation Valve must be installed at the gas inlet pipe, water inlet pipe, and water outlet pipe. After the installation, checking must be done to make sure that there is no gas or water leak. Max Max Temperature Volume Water Inlet Valve Drainage Pipe...

  • Page 10: Temperature Control

    Temperature Control Adjust the water and gas controller knobs until the desired hot water temperature is reached. 2. If the water inlet valve is installed, cold water valve may not be rotated excessively, to prevent the reduction of the pressure (as a cause of the pipe and the valve diameters difference) that affects the normal operation of the water heater.

  • Page 11: Turning Off The Water Heater

    Turning Off the Water Heater To turn the water heater off, switch off the hot water outlet valve or the water inlet valve. Then, the flame will automatically extinguish, and the water heater will return to stand-by mode. NOTE The water heater cannot be used continuously for a long time. It will automatically turn off after 20 minutes in continuous operation to prevent the accidental carbon monoxide poisoning due to inadvertent or accidental long period use.

  • Page 12: Part 6: Troubleshooting

     Maintenance of the water heater by user: Clean off the dirt and dust accumulation on the surface of the water heater with the cloth regularly. Do not use chemical that can change the color of the surface. 2. Clean off the dust and the carbon accumulation inside of the ventilation pipe and the heat exchanger regularly to smooth out the smoke line.

  • Page 13: Part 7: Specification

    PART 7: SPECIFICATION Model GI 0631 L Type Gas Instant Water Heater Color Black Installation Vertical Heat Source Water Volume Controller Gas Volume Controller Flame Controller Low Water Pressure Flame Off Safety Automatic Shut-off Overpressure Safety Thermostat Water Flow Rate...
  • Page 14 12/20...
