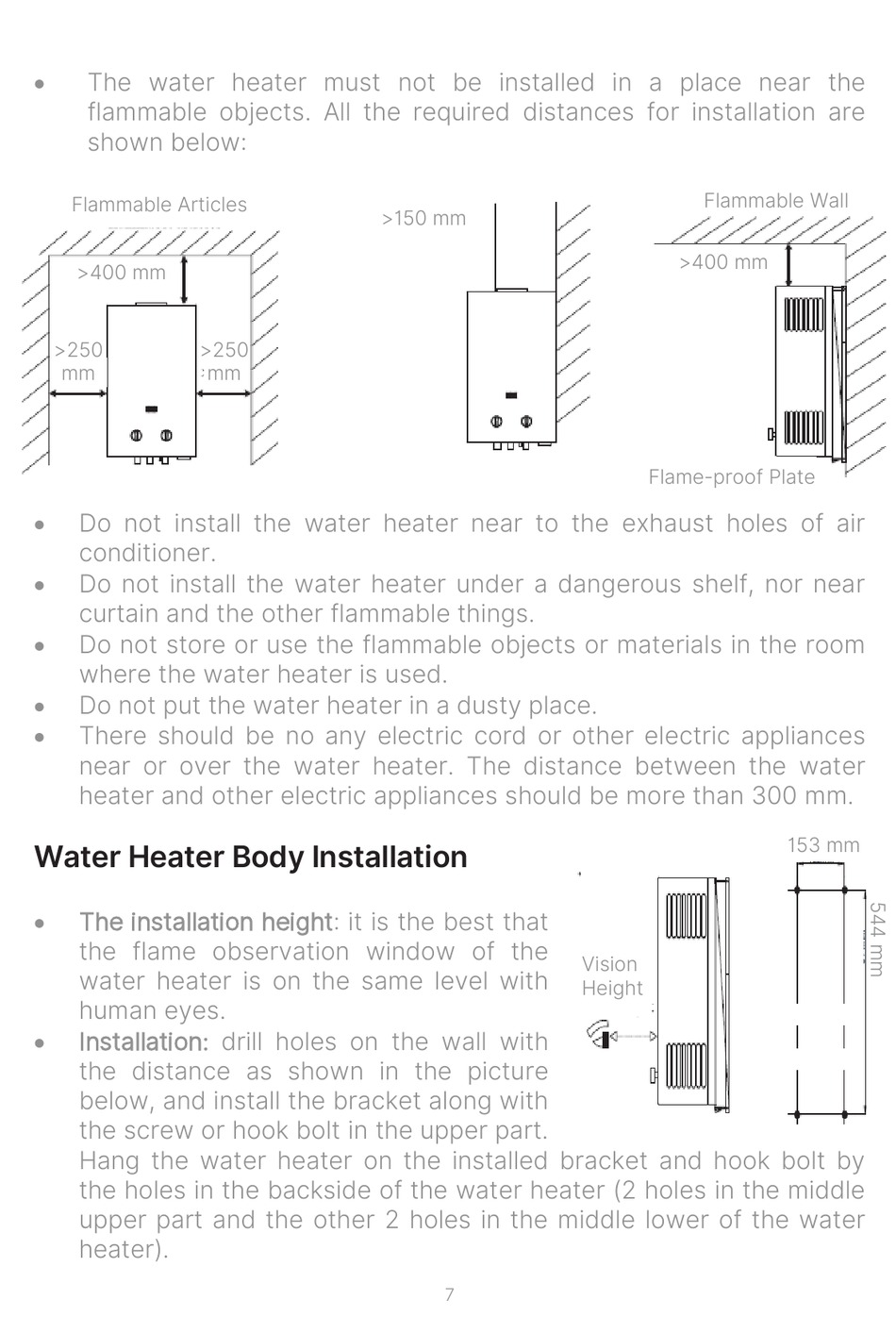

The water heater must not be installed in a place near the
flammable objects. All the required distances for installation are
shown below:
Flammable Articles
>400 mm
>250 >250
mm

Do not install the water heater near to the exhaust holes of air
conditioner.

Do not install the water heater under a dangerous shelf, nor near
curtain and the other flammable things.

Do not store or use the flammable objects or materials in the room
where the water heater is used.

Do not put the water heater in a dusty place.

There should be no any electric cord or other electric appliances
near or over the water heater. The distance between the water
heater and other electric appliances should be more than 300 mm.

Water Heater Body Installation


The installation height: it is the best that
the flame observation window of the
water heater is on the same level with
human eyes.

Installation: drill holes on the wall with
the distance as shown in the picture
below, and install the bracket along with
the screw or hook bolt in the upper part.
Hang the water heater on the installed bracket and hook bolt by
the holes in the backside of the water heater (2 holes in the middle
upper part and the other 2 holes in the middle lower of the water
heater).
mm
>150 mm
7
Flammable Wall
>400 mm
Flame-proof Plate
Vision
Height
153 mm
