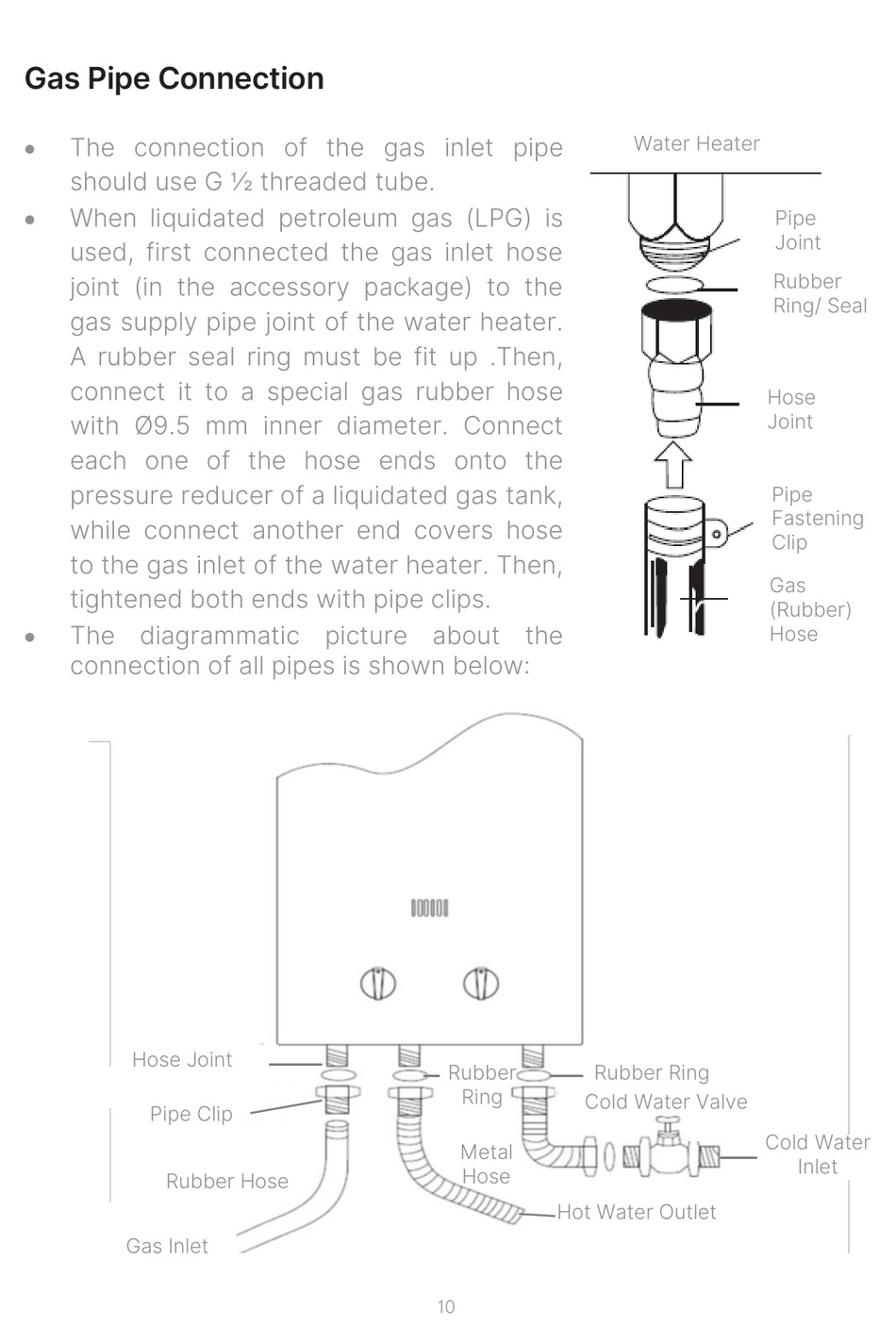

Gas Pipe Connection


The connection of the gas inlet pipe
should use G ½ threaded tube.

When liquidated petroleum gas (LPG) is
used, first connected the gas inlet hose
joint (in the accessory package) to the
gas supply pipe joint of the water heater.
A rubber seal ring must be fit up .Then,
connect it to a special gas rubber hose
with Ø9.5 mm inner diameter. Connect
each one of the hose ends onto the
pressure reducer of a liquidated gas tank,
while connect another end covers hose
to the gas inlet of the water heater. Then,
tightened both ends with pipe clips.

The diagrammatic picture about the
connection of all pipes is shown below:
Hose Joint
Pipe Clip
Rubber Hose
Gas Inlet
Rubber Rubber Ring
Ring
Cold Water Valve
Metal
Hose
Hot Water Outlet
10
Water Heater
Pipe
Joint
Rubber
Ring/ Seal
Hose
Joint
Pipe
Fastening
Clip
Gas
(Rubber)
Hose
Cold Water
Inlet
