Summary of Contents for Modena Tondo Series

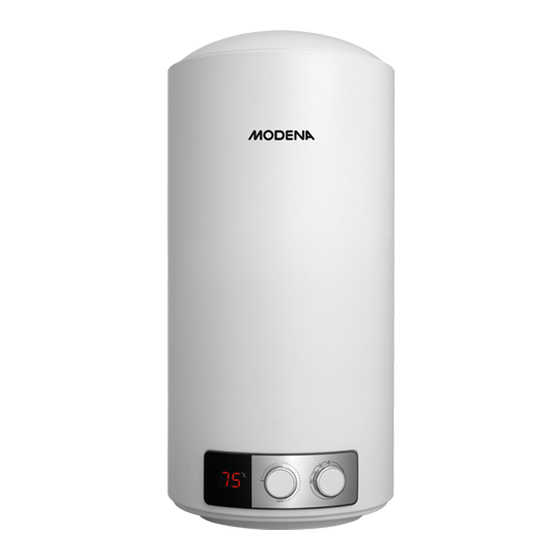

- Page 1 User Manual Book (Electric Storage Water Heater) Tondo Series ES 30VD, ES 50VD, ES 80VD ES 100VD Disteso Series ES 30HD, ES 50HD, ES 80HD ES 100HD...
-
Page 2: Introduction
Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product. -
Page 3: Table Of Contents
CONTENTS PAGE. • Introduction • Part 1 : Important Safety Information • Part 2 : Product Introduction • Part 3 : Installation • Part 4 : How to Use • Part 5 : Maintenance • Part 6 : Troubleshooting • Part 7 : Disposal of Used Product •... -
Page 4: Part 1: Important Safety Information
Special Caution Warning: If the supply cord is damaged. It must be replaced by MODENA technicians, MODENA service agent or similarly qualified persons in order to avoid a hazard. ... -
Page 5: Part 2: Product Introduction
During the heating process, there may be drops of water dripping from the pressure relief hole. This is a normal case. If there is an over-leaking, please contact MODENA customer call center for repair. This pressure relief hole shall, under no circumstances, be blocked; otherwise, the heater may be damaged, even resulting on accidents. - Page 6 ES XXVD, ES XXHD = the product code of the electric storage water heater; = the capacity of the water heater (L); VD, HD = the series of the water heater Technical Performance Parameters Picture 4 Brief Introduction of Product Structure ES XXHD ES XXVD Picture 5...
-
Page 7: Part 3: Installation
Internal Wiring Diagram ES XXHD ES XXVD Picture 6 Part 3: Installation Installation Instruction This electric storage water heater shall be installed on a solid wall. If the strength of the wall cannot bear the load equal to two times of the total weight of the water heater filled fully with water, it is then necessary to install a special support. - Page 8 1.8m (see Picture 8). If there is problem on the power cord, it should be replaced by MODENA, agencies or qualified person who is able to do the replacement and repairment so as to ensure the safety.
- Page 9 Picture 10 Note: Please be sure to use the accessories provided by MODENA to install this electric storage water heater. This electric storage water heater cannot be hung on the bracket until it has been confirmed to be firm and reliable. Otherwise, this water heater may drop off from the wall, resulting to its damage, even serious accidents of injury to the user.
-
Page 10: Part 4: How To Use
Part 4: How to Use Operating Procedure Check all the piping connection to avoid the leakage case before turning on this electric storage water heater. Open one of the outlet valves of the water heater, then, open the inlet valve .to get the water heater filled with water. -
Page 11: Part 5: Maintenance
Picture 13 Warning: Non-professionals are not allowed to disassemble the thermal switch to do the reset. Please contact professionals of MODENA to maintain this electric storage water heater. Otherwise, MODENA will not take responsibility of any accidents. Tank Cleaning... -
Page 12: Part 6: Troubleshooting
If the water contains limestone (Mud), the heating element cannot function properly (slow heat) because it was covered by a crust of limestone (mud). Therefore, heating element must be cleaned off from the sediment each year. To do this cleaning procedure, contact MODENA Call Center. Part 6: Troubleshooting... -
Page 13: Part 7: Disposal Of Used Product
Water leak 2. Leaking from the piping the gasket and Contact connection MODENA Call Center for 3. Leaking at the gasket repairs Part 7: Disposal of Used Product This symbol on the product or in its packaging indicates that this product must not be treated as household waste. - Page 14 Model ES 100HD ES 80HD ES 50HD ES 30HD Type Tank (Storage) Installation Vertical Heat Source Electricity Heating Tank Material Stainless Steel Heating Tank Coating Titanium Porcelain Enamel Temperature Setting Power Selection Temperature Display Electric Safety (ELCB) Overpressure Safety Thermostat Double Grounding Terminal Anti-Rust...
- Page 15 11/20...
