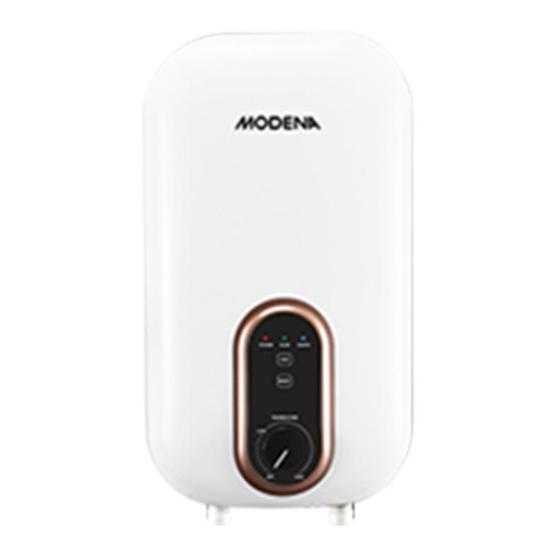

- Page 1 User Manual Book (Electric Instant Water Heater) Veloce Series EL 2D B, EL 2 W...
- Page 2 Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product.
-
Page 3: Table Of Contents
CONTENTS PAGE. Introduction Part 1 : Name of Parts Part 2 : Important Safety Information Part 3 : Installation Part 4 : How to Use Part 5 : Maintenance Part 6 : Troubleshooting ... -
Page 4: Part 1: Name Of Parts
Part 1: Name of Parts EI 2D B El 2 W... - Page 5 Water heater is equipped with adjustable flow capacity safety valve. For safety use, please do not change its location of installation and do not block its water outlet. For any improper installation and incorrect operation of this product, MODENA will not be liable for any responsibility.
-
Page 6: Part 3: Installation
Part 3: Installation 4. Insert the power cord (lines) into the jacket POWER CORD INSTALLATION for installation of the wire pressing plate. 1. Remove the screws at the bottom of the unit. Lift up the main switch knob and the power knob to make it free. - Page 7 THE INSTALLATION OF ELECTRIC INSTANT WATER HEATER 1. Determine the installation position of the unit according to the length of power cord / the position of switch (the distance from the floor to bottom part of the unit should be ≥1.6m). 2.
-
Page 8: Part 4: How To Use
Warning! Metallic / chromed hose and conductive control valve shall not be used. POWER SUPPLY CONNECTION 1. Adjust power selection knob to “OFF”. 2. Choose circuit breaker (such as Miniature Circuit Breaker/MCB) with leakage protection according to power of the water heater. 3. - Page 9 Display icon Function Functional description If the “Safety Sign” is displayed normally, it means the machine is Safety Sign trouble-free. If the “Safety Sign” twinkling flicker, it means the water heater cannot be connected to the Ground firmly. Cold Water If this function icon appears, water heater is not heated.
-
Page 10: Part 5: Maintenance
DECLARATION: This water heater can only be maintained by authorized service technician of MODENA. The incorrect installation and using method may cause serious injury or loss of property. Warning! Do cut off power supply before maintenance, to avoid danger like electric shock. -
Page 11: Part 7: Specification
Safety sign is flickering 1. Ground damage 1. Check the grounding (EI 2D B) 2. PCB error. 2. Contact MODENA Call center for repair “ELCB” indicator light is Electricity leaks Contact MODENA Call center twinkling flicker (EI 2 W) for repair ... -
Page 12: Part 8: Wiring Diagram
Part 8: Wiring Diagram EI 2D B EI 2 W... - Page 13 11/20...
