POWER CORD INSTALLATION

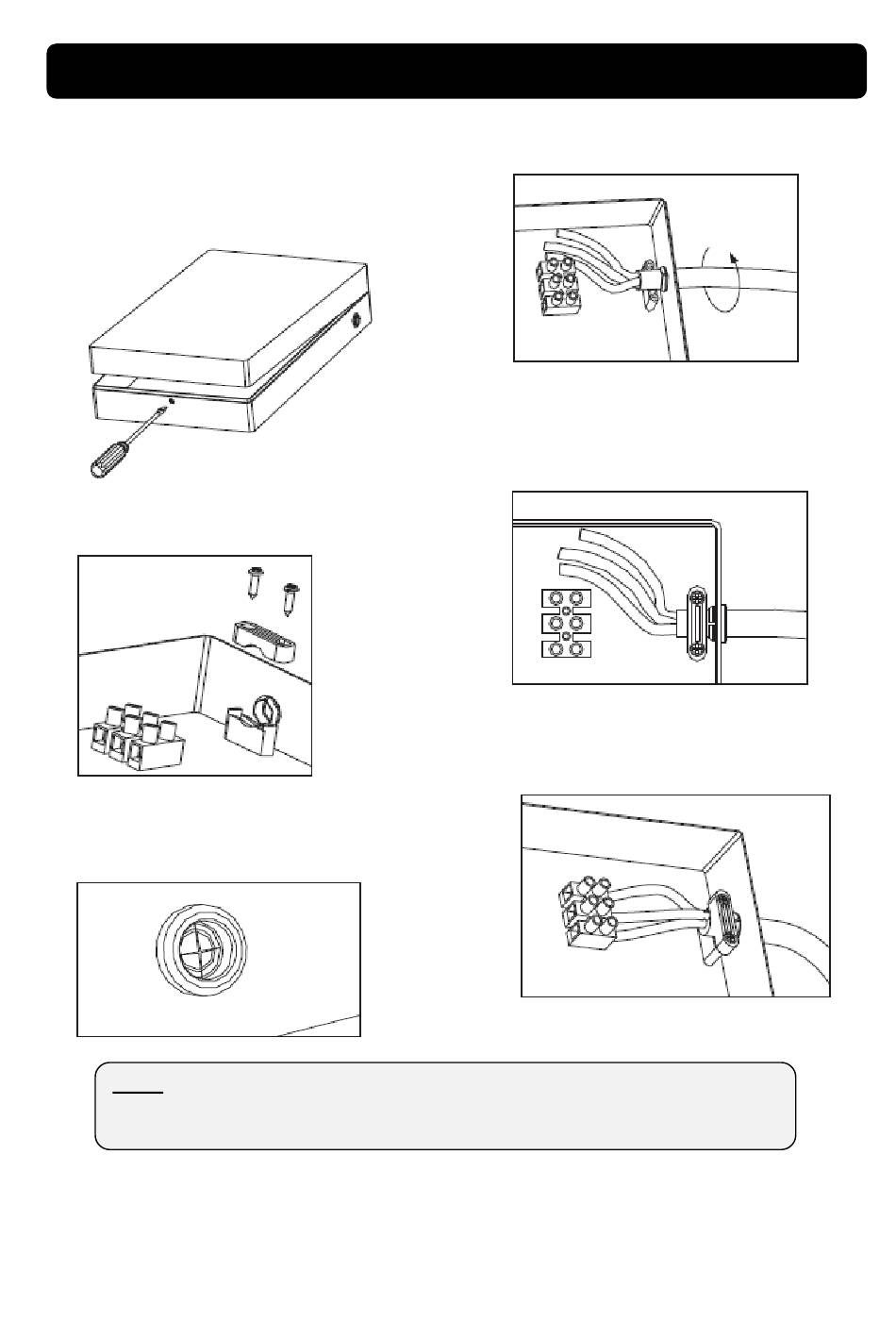

1. Remove the screws at the bottom of the
unit. Lift up the main switch knob and the
power knob to make it free. Remove the
front plate (the cover) gently.
2. Remove the pressing plate of the power
cord and keep the screws.
3. Gash the middle of the power cord jacket
with a sharp knife in order to insert the
power cord (lines).
Note : The installation of every ends of neutral line (blue), live line (brown /red) and
earth line (green/yellow) should be corresponding to the other end on wiring
terminals.

Part 3: Installation

4. Insert the power cord (lines) into the jacket
for installation of the wire pressing plate.
5. Tighten the wire-pressing plate with the
screws to primary position; make sure that
the power cord doesn't come loose when it
is pulled at 60N force.
6. Connect the end of the power cord to wiring
terminals; the method is as shown in the
image.
