For example, aileron, elevator and rudder can be assigned three different Gain
channels, which can then be adjusted individually in a single test-flight.
To assign a channel, use buttons I and II to select the function, then press the SET
button. You now have two options for choosing the channel:
- Use buttons I and II
- Simply move the transmitter stick: the channel is automatically detected. If more
than one channel is assigned to a particular transmitter control (for example, chan-
nels 2 and 6 for aileron control), repeatedly move the stick briefly from centre until
the desired channel is selected.
Press the SET button to confirm your choice.

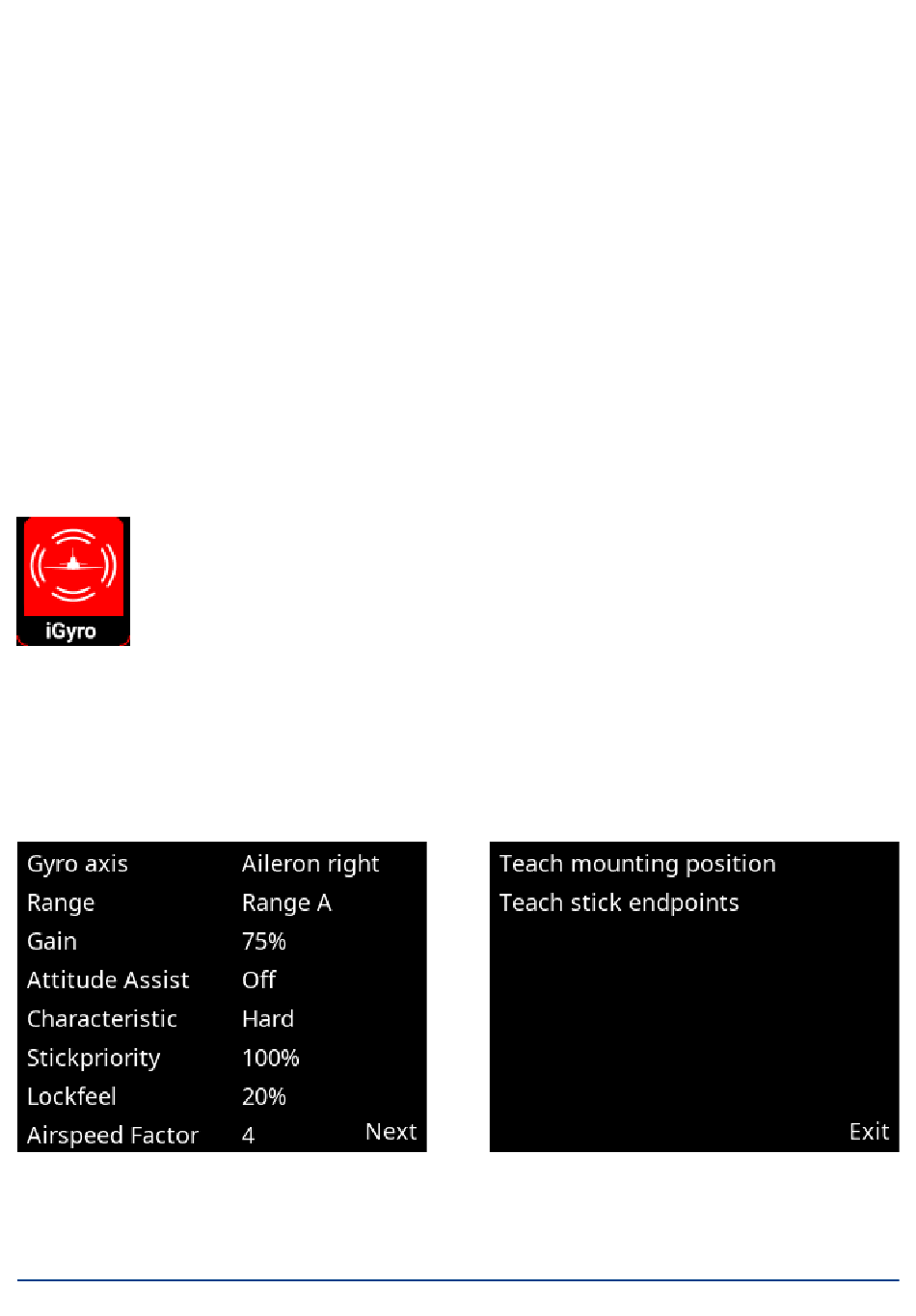

11. IGYRO
The iGyro menu provides access to a whole range of Expert settings
which enable you to fine-tune the iGyro to meet your specific require-
ments.
The iGyro menu requires an iGyroSAT connected to the FastTrack in-
put of the Competition SR2 as sensor unit. An optional GPS III - also
connected to FastTrack - can be used to provide speed compensation for gyro gain.
It is important to carry out the Setup Assistant before you make any changes to the
iGyro settings, as all the channel assignments will then be correct. A single test-
flight with the base values then forms a good starting point for further fine-tuning.
•
Gyro axis
At this point you select the gyro axis which you want to adjust. Four axes are
available for each of aileron / elevator and rudder.
