This is shown in the example above, where the three right-hand points on the upper
line are at the same position. As a basic rule the time can only be entered between
the two points at left and right. If you want to shorten the entire sequence, you must
move all the points.
It is possible to test the sequence without leaving the menu: move the cursor to
TEST at bottom right; this action transfers control to the retract switch on the trans-
mitter. The TEST select point changes to Exit - press the SET button here to leave
the menu completely.

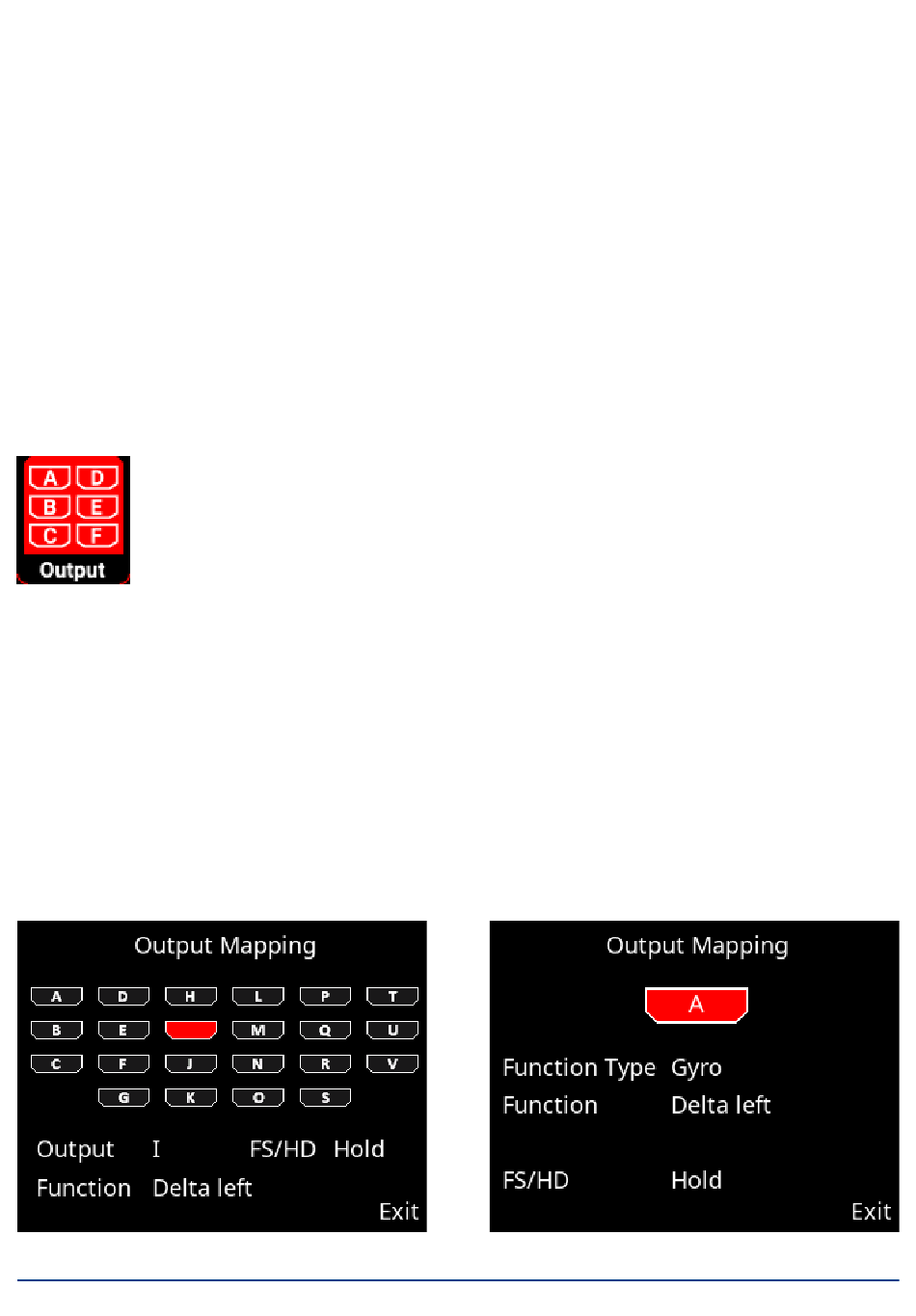

9. OUTPUT MAPPING

Output Mapping enables you to assign servo sockets to the transmitter
channels and the gyro and sequencer functions.
All 22 outputs can be assigned, and there are no restrictions. For ex-
ample, output A can be direct channel 5 from the transmitter, or a door
sequencer function. It is also possible to assign one function to multip-
le outputs. For example, two elevator servos can be controlled from just one trans-
mitter channel. Servo matching can then be used to match the control surfaces
accurately to each other. This facility saves channels at the transmitter, where they
can be in short supply.
Output Mapping is also used to set the Failsafe response of each individual channel.
In the Output Mapping display you use buttons I and II to select the output you wish
to assign:
