In this menu the system learns the aileron, elevator and rudder sticks as you hold
each stick in the direction shown on the screen, and press the SET button.
The Setup Assistant is now finished, but you can still assign additional outputs ma-
nually, carry out the Door Sequencer Assistant, or match multiple servos.
.
Note: In contrast to earlier versions of the PowerBox Assistant, it is now pos-
sible to repeat the Setup Assistant at any time. The system retains previously
entered settings, and only overwrites the entries you have changed.
7.SERVO MATCHING
The Servo Matching function can be used to adjust all 22 outputs in
travel and direction using five points. Its purpose is to match the travels
of multiple servos which are mechanically interconnected, or which
control multiple functions using only a single channel. For example, the
rudder may be coupled to a steerable nosewheel.
The servo matching procedure is divided up over two screen displays: in the first
you set and initialise the channel which is to be adjusted.
•
Initialising

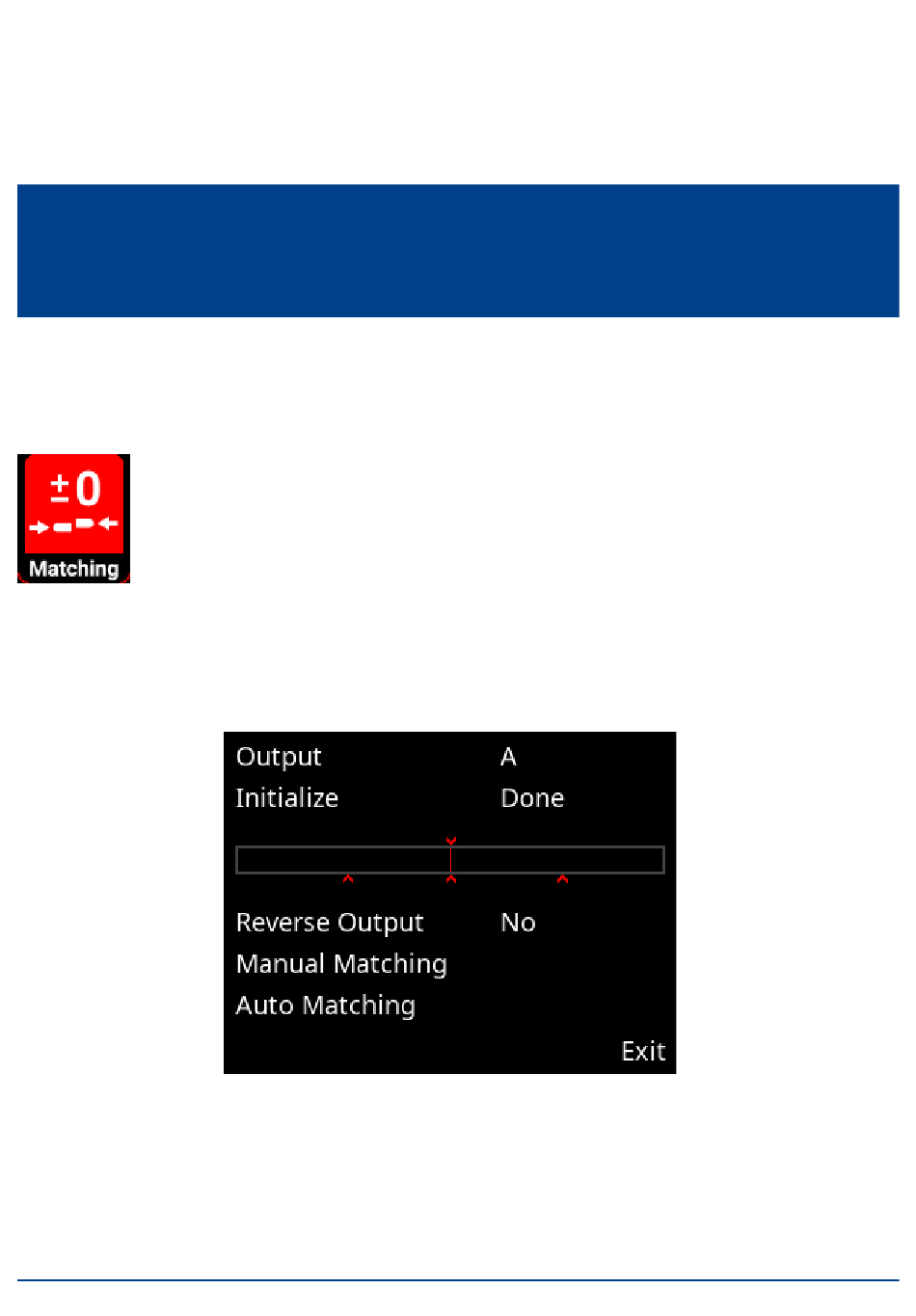

First centre your transmitter stick, then select Initialise: now move the stick to
both end-points. The screen displays the movement as a bar, and when the mo-
vement is complete, the small red markers remain in place at the end-points.
