Reversing the output
If you simply wish to reverse the output without adjusting any individual point, just
use the SET button to select Reverse output.
•
Manual Matching
Select this menu point if you want to adjust the travel of the selected servo ma-

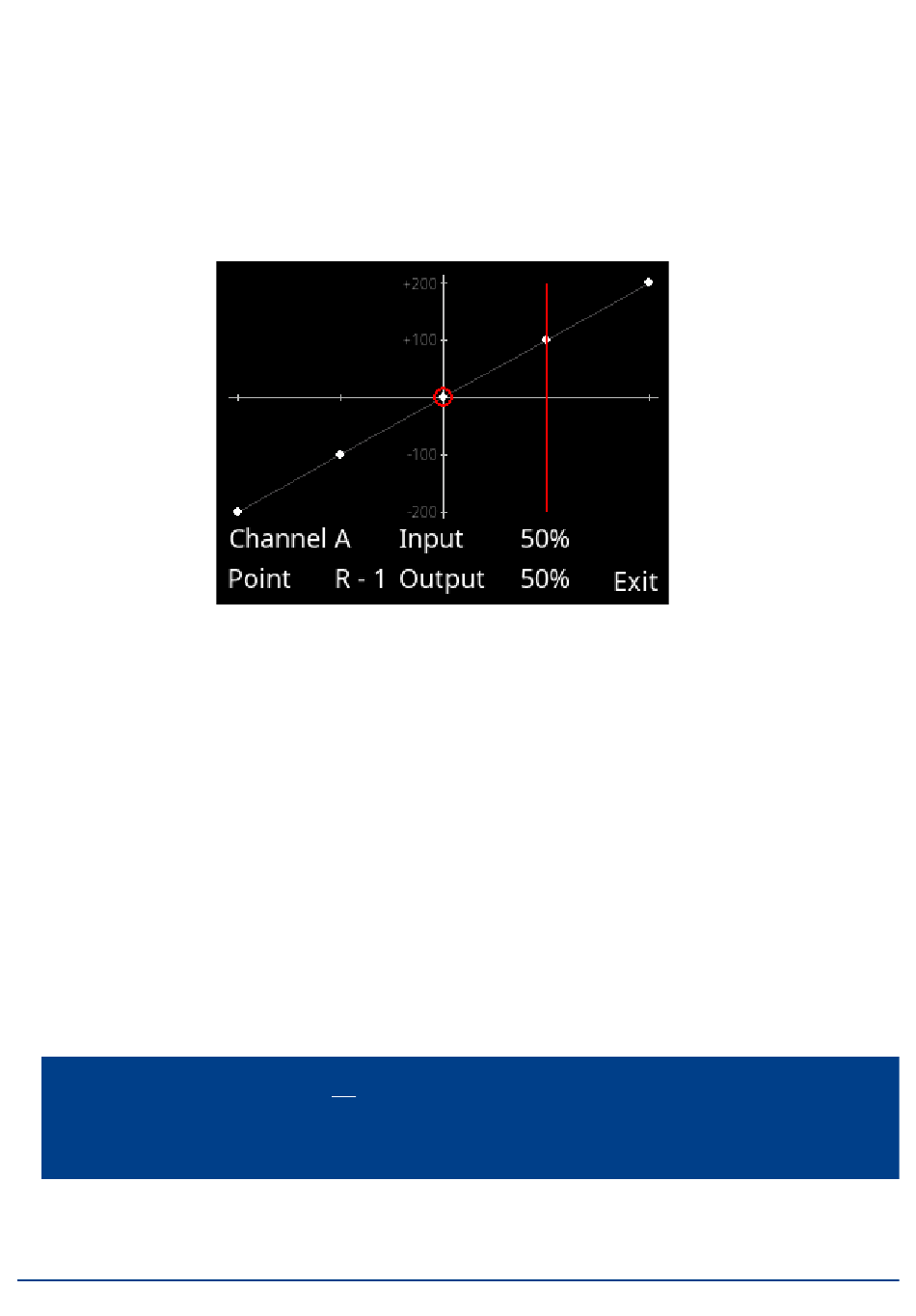

nually using five points. The Competition SR2 switches to this display:
The procedure is very simple: use buttons I and II to select the point on the curve
which you wish to change, then press the SET button. The servo automatically
moves slowly to the corresponding point. Now you can alter the servo curve at
this point using buttons I and II.
You don't need to use the transmitter to maintain the servo position; this makes
accurate settings easier.
Once you have adjusted the curve point to the desired position, press the SET
button again, and the servo slowly travels back to the position corresponding to
the actual stick position.
If you now move the stick, you will see at Input the servo position corresponding
to the transmitter stick position, and at Output the servo position now present at
this servo.
Note: This action causes all the servos which are assigned to this input chan-
nel to move to the selected position. If this were not so, mechanically linked
servos would immediately stall each other!
When you have completed all the adjustments, use button I or II to move to End.
