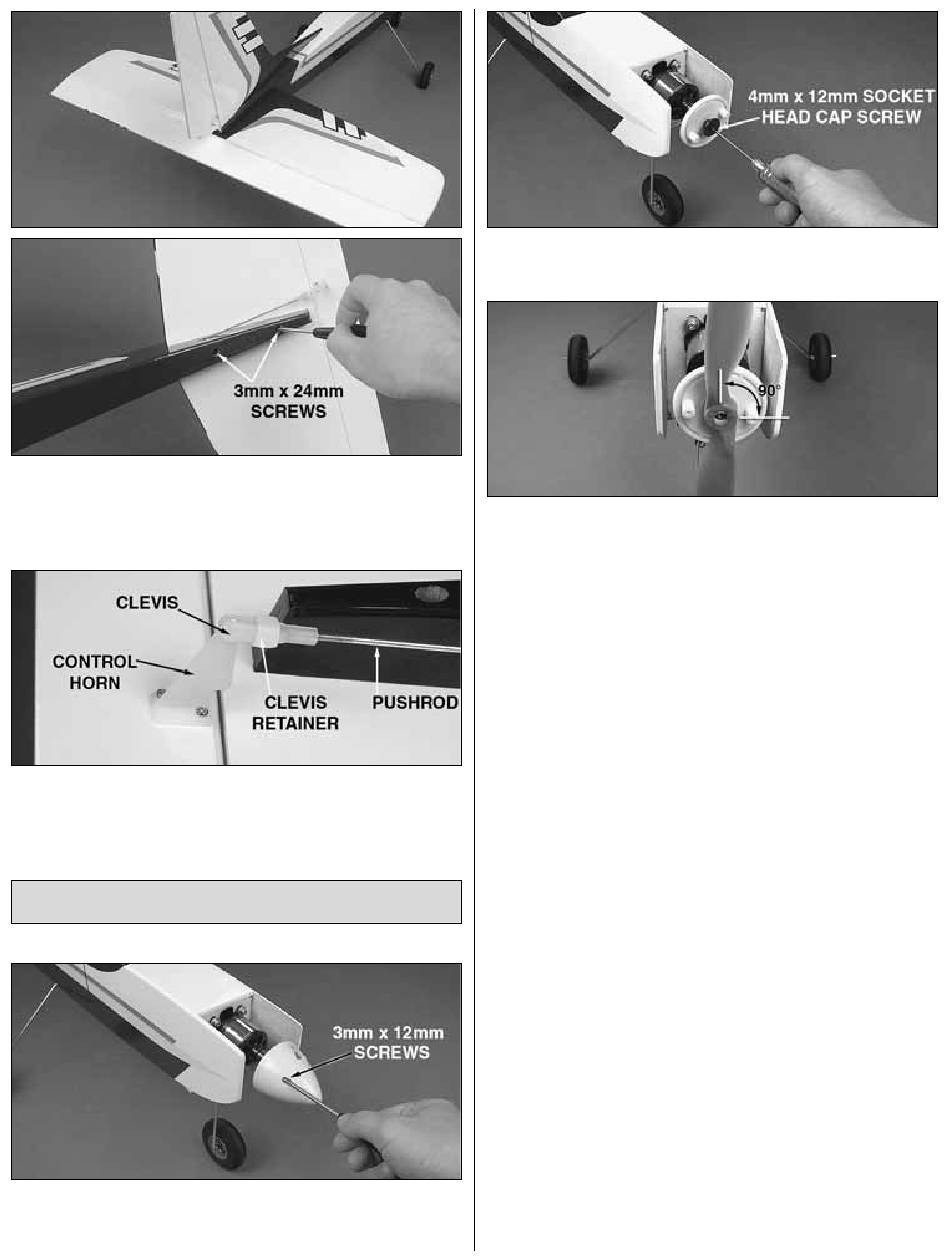

4. Insert the stabilizer and center it in the stabilizer slot as
shown. Use a Phillips screwdriver to install the two
3mm x 24mm screws into the bottom of the fuse as shown
to secure the stabilizer.
❏
5. Connect the elevator pushrod into the fourth hole out
from the base of the control horn as shown. Slide the
silicone clevis retainer in place to help secure the linkage.

Install the Propeller

❏
1. Use a Phillips head screwdriver to remove the two
3mm x 12mm screws from the spinner assembly and gently
remove the spinner cone as shown.
❏
2. Remove the 4mm x 12mm socket head cap screw and
propeller washer from the shaft of the motor.
❏
3. Place the propeller onto the shaft so that the blades are
perpendicular to the spinner screw receptacles on the
backplate as shown.
❏
4. Place the prop washer on the shaft against the
propeller and re-insert the 4mm x 15mm socket head cap
screw. IMPORTANT: Tighten the 4mm x 12mm socket
head cap screw firmly.
❏
5. Place the spinner cone over the prop so that the blades
of the prop fit into the notches of the cone. Replace the two
spinner assembly screws. The cone should sit flush against
the backplate. If you see a gap, check to make sure that the
prop is installed correctly. The spinner cone must not touch
the prop at any place around the notches.
7
