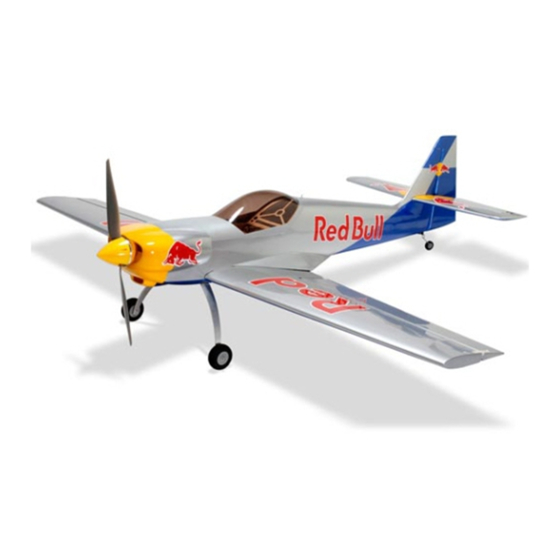

ZLIN 50
Please read the instruction manual carefully and take notice of the safety guidelines.
If the model is given to a third party, always include this instruction manual to the model.
Distributed by
INSTRUCTION MANUAL
FLWA4004 - ZLIN 50 LX ARF
LX
www.hobbico.de
Technical data : Zlin 50 LX
Wingspan
Length
Take off weight
Wing Area
Wing load
Motor set
Fully licensed through the
Red Bull GmbH - Austria
1613 mm
1404 mm
3030 g
46,6 dm²
65 g/dm²
FW 5065
Advertisement
Table of Contents
Related Manuals for Hobbico FLWA4004 - ZLIN 50 LX ARF
Summary of Contents for Hobbico FLWA4004 - ZLIN 50 LX ARF
-
Page 1: Instruction Manual
INSTRUCTION MANUAL FLWA4004 - ZLIN 50 LX ARF ZLIN 50 Fully licensed through the Red Bull GmbH - Austria Technical data : Zlin 50 LX Wingspan 1613 mm Length 1404 mm Take off weight 3030 g Wing Area 46,6 dm²... -
Page 2: Table Of Contents
TABLE OF CONTENTS General informations ............2 10 - Brushless Motor ............9 Environment protection infos ........2 11 - Main wing ................9 Introduction ................2 12 - Cowling and canopy ...........9 Safety precautions ...............3 Get the model ready to fly ..........10 Recommended accessories ..........4 Check the Control Directions ........10 Recommended drive sets ..........4 Balance the Model (C.G.) ..........10... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS 7. If you are not already an experienced R/C pilot, you should fly the model only with the help of a competent, experienced 1. Your Zlin Z-50L should not be considered a toy, but rather R/C pilot. a sophisticated, working model that functions very much like a full-size airplane. -
Page 4: Recommended Accessories
Tel: 01805 110111 (nur für Deutschland) ❍ 3-blade version: Motor set FW5065/380 (Anrufkosten: 14 Cent/Min. a. d. dt. Festnetz; Order No: FLWA8006 Mobilfunk max. 42 Cent/Min.) ❍ 1x FlightPower Lipo-Akku 6s 3800mAh 30C Email: Hobbico-Service@Revell.de (Order No: FPWP3386) Order n° Part name RC EQUIPMENTS FLWA4911 Zlin 50 1600mm cockpit ❍... -
Page 5: Kit Content
Tel: 01805 110111 (nur für Deutschland) (Anrufkosten: 14 Cent/Min. a. d. dt. Festnetz; Mobilfunk max. 42 Cent/Min.) Ensure smooth non-binding movement while Email: Hobbico-Service@Revell.de assembling. Remove covering here. Do not cut wood. Drill holes with the specified diameter (here : 1.5 m m... -
Page 6: Aileron
1 - AILERON Bonding of hinges using white glue is also very successful. 2 - AILERON SERVO Wooden Pushrod Ball-Link Washer Horn Servo linkage 3 - MAIN WING Wing joiner 375x33x6mm... -
Page 7: Stabilizer / Vertical Fin
4 - STABILIZER / VERTICAL FIN Collar 2,1mm Elevator joiner 02,5x20v100 mm Wheel 30 mm 5 - STABILIZER STRUTS Aluminium slice Stabilizer Struts 6 - ELEVATOR PUSHROD Pushrod Ball-link Washer Horn... -
Page 8: Rudder Pullwire
7 - RUDDER PULLWIRE Pullwire Copper Tabe Tie-in Ball-Link Horn Washer 8 - RADIO EQUIPMENT Front Elevator pushrod Elevator Servo Rudder Servo Rudder Pull-pull System Tie-in Rudder Pushwire 9 - LANDING GEAR Self locked nut Collar Steel Axle Wheel... -
Page 9: Brushless Motor
10 - BRUSHLESS MOTOR 11 - MAIN WING 12 - COWLING AND CANOPY Lock PWA2,3x8mm... -
Page 10: Get The Model Ready To Fly
GET THE MODEL READY TO FLY BALANCE THE MODEL (C.G.) CHECK THE CONTROL DIRECTIONS More than any other factor, the C.G. (balance point) can have the greatest eff ect on how a model fl ies and may ❏ 1. Turn on the transmitter and receiver and center the determine whether or not your fi rst fl ight will be successful. -
Page 11: Balance The Model Laterally
Note: Do not rely upon the adhesive on the back of the We recommend these surface throws : lead weight to permanently hold it in place. Over time, the adhesive may softern and cause the weight to fall off. Use Standard ying #2 sheet metal screws, RTV silicone or epoxy to permanently hold the weight in place. -
Page 12: Balance Propellers
BALANCE PROPELLERS ❍ Keep your face and body as well as all spectators away from the plane of rotation of the propeller as you start and run the engine. ❍ Keep these items away from the prop: loose clothing, shirt sleeves, ties, scarfs, long hair or loose objects such as pencils or screwdrivers that may fall out of shirt or jacket pockets into the prop. -
Page 13: Check-List
❍ 15. Place your name, address, AMA number and CHECK-LIST telephone number on or inside your model. During the last few moments of preparation your mind may ❍ 16. If you wish to photograph your model, do so before be elsewhere anticipating the excitement of the first flight. your first flight. - Page 14 PERSONAL NOTES...
- Page 16 Distributed by...
