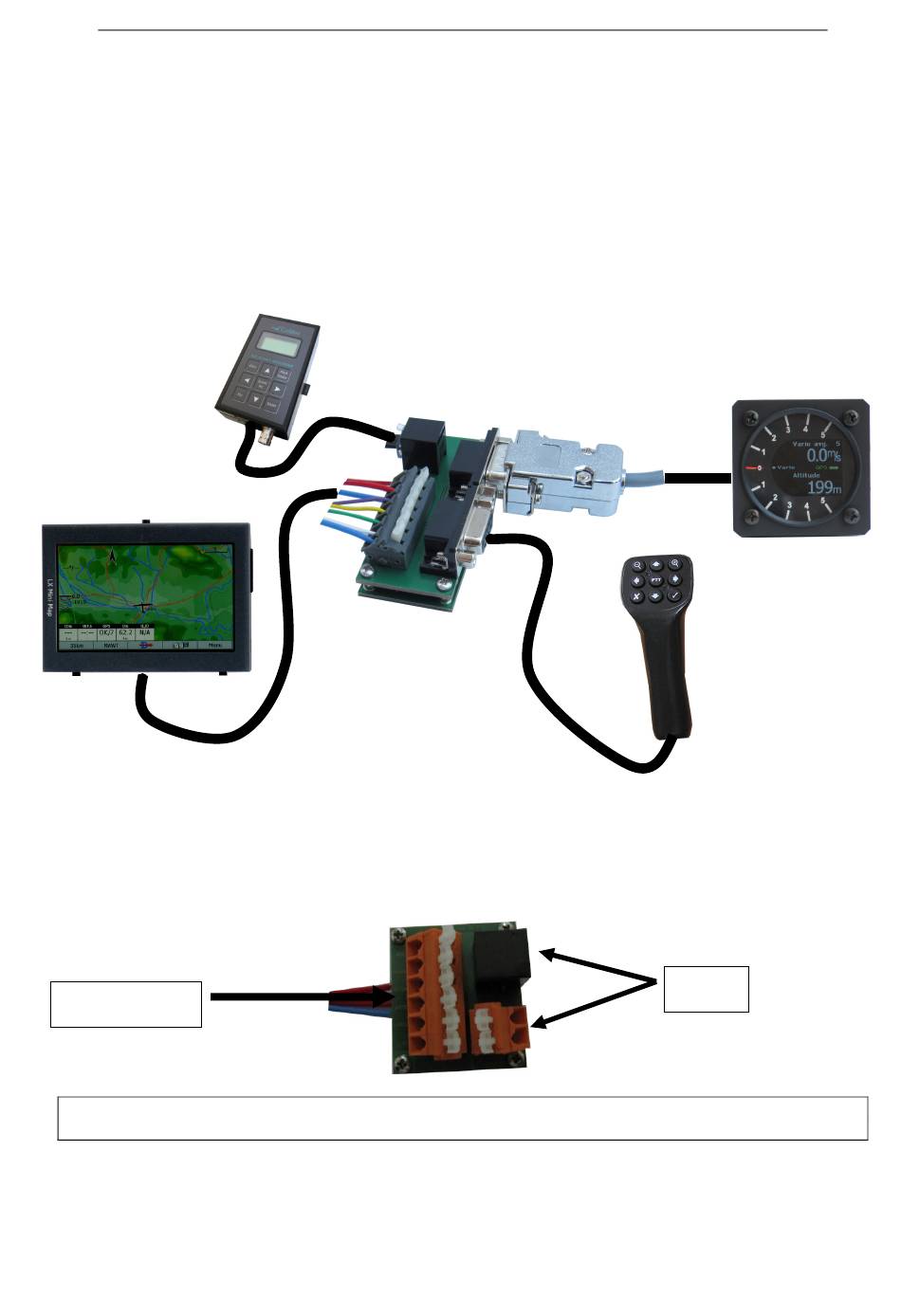

1.3 LX Mini Map Junction Box

1.3.1 Junction box with 484 bus

To make installation and connection of interface units as simple as possible a suitable Junction box is added to any
unit. The box consists of:
-6P telephone type connector which makes possible a direct connection of Colibri, LX 20-2000, VL and Flarm
-6 pole spring terminal blocks, for main power, GPS data and system bus connection of Min Map
-2x SUB D 9p for system bus extension (vario unit and other 485 bus participants)
See also chapter Installation.

1.3.2 Basic Junction box

The unit makes possible to connect GPS source via 6P telephone type connector or after using of two spring
terminals. On another side the unit connects LX Mini Map.
GPS
LX Mini Map
LX Mini Map
Note!
Basic Junction box isn't cable to be used by Mini Map KB/V, or by remote control solution.
