LX Navigation d.o.o
Every junction box is equipped with an on/off switch which applies power to Mini Map and also to all connected
interfaces.
Units connectable plug and play to Junction Box:
LX 20 old version, ask for cable
•
LX 20 2000
•
Colibri, all versions
•
LX 5000, LX 7000, LX 7007, ask for cable
•
LX Flarm Red Box, LX Flarm splitter necessary
•
LX Flarm Mini box
•
Orignal Flarm
•
Volksloger, only versions with telephone type connector
•
All units which have IGC compatible connector should be connected via so called 1:1 6P telephone type cable,

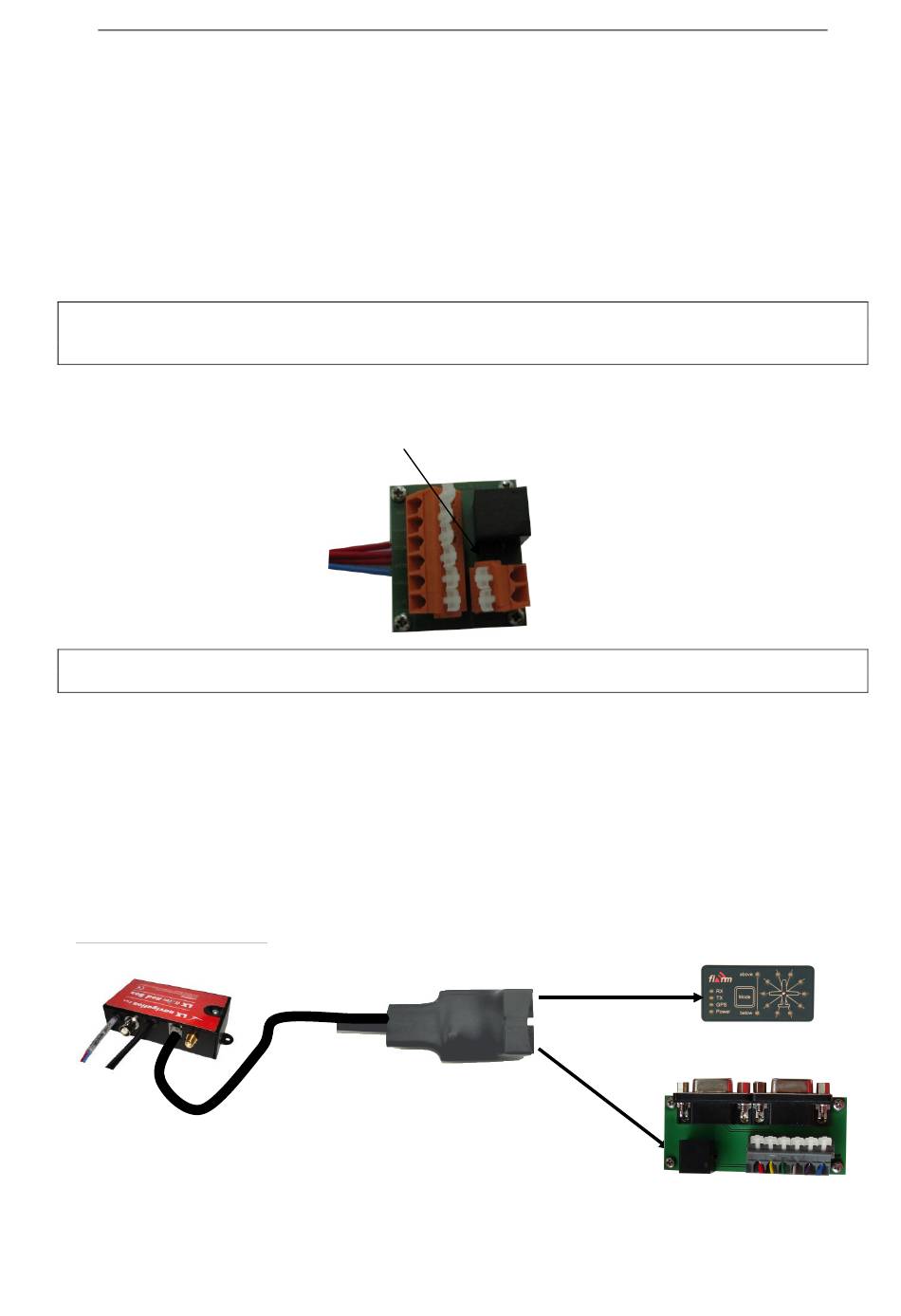

10.2.2 Basic Junction box connection

Basic Junction box doesn't have 9P connectors and makes only possible to connect GPS to the LX Mini Map.
Connection of GPS is also possible via two terminals marked as Data In and Data out, Data In means NMEA input
for LX Mini Map.
Use ground terminal for data ground, if data source and LX Mini map don't use the same GND.

10.3 Connection of Flarm units

Connection of Flarm units is in some cases a little bit specific. In general Flarm units offer an IGC compatible
connector and that means connection to Junction box should be done via 1:1 6P telephone type cable.

10.3.1 LX Mini Map and LX Flarm Red Box

As LX Flarm Red Box have only one data output connector, the connection to Mini Map should be realized after
insertion of LX Flarm spliter.
LX Mini Map V 1.4
Note!
means no twisted wires.
Note!
42
May 29 2011
th
