2.4 Connection of System bus participants

Some other LX Navigation interfaces can be also bus connected.
Version
LX Mini Map
LX Mini Map KB
LX Mini Map KB/V

2.5 LX Mini Map system setup

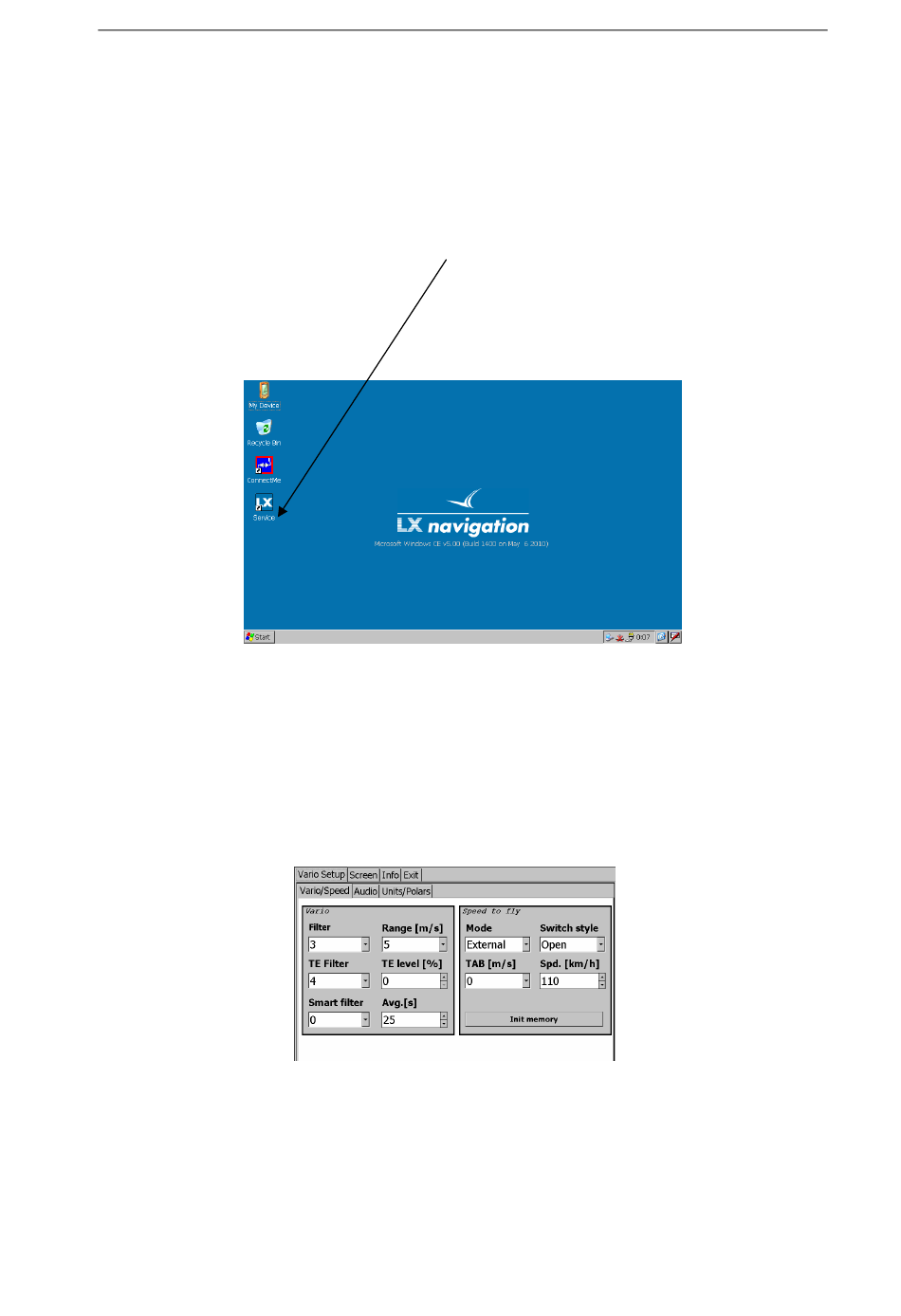

Every unit comes from the factory with preloaded LX Service program which makes possible to define some system
parameters. The access is absolute simple after click on short cut which is available on the desk top of the unit. To
access desk top remove SD card and power on Mini Map, or simple exit from navigation program.

2.5.1 Mini Map Setup

Mentioned setup should be used exclusively after LX Mini Map KB/V version will be operated and following
programs will be in use: LK 8000, Winpilot Strepla. After using of SeeYouMobile all settings could be done in
SeeYouMobile (LX 1600 2 and 2) and this setting doesn't matter at all.
2.5.1.1

Vario/Speed

Filter:
Vario needle dumping
Range: Vario range
TE filter: filter which is active only after using of electronic compensation, after using of TE tube should be set to
0%
TE level: adjustment of electronic TE compensation
The TE compensation can be fine tuned during flight with the following procedure. It is essential that this is only
done in smooth air; it is not possible to tune the TE accurately when it is thermic.
LX Mini Map V 1.4
LX Remote Secondary vario
Y
Y
Y
Second seat unit
N Y
N Y
Y Y
12
May 29 2011
th
