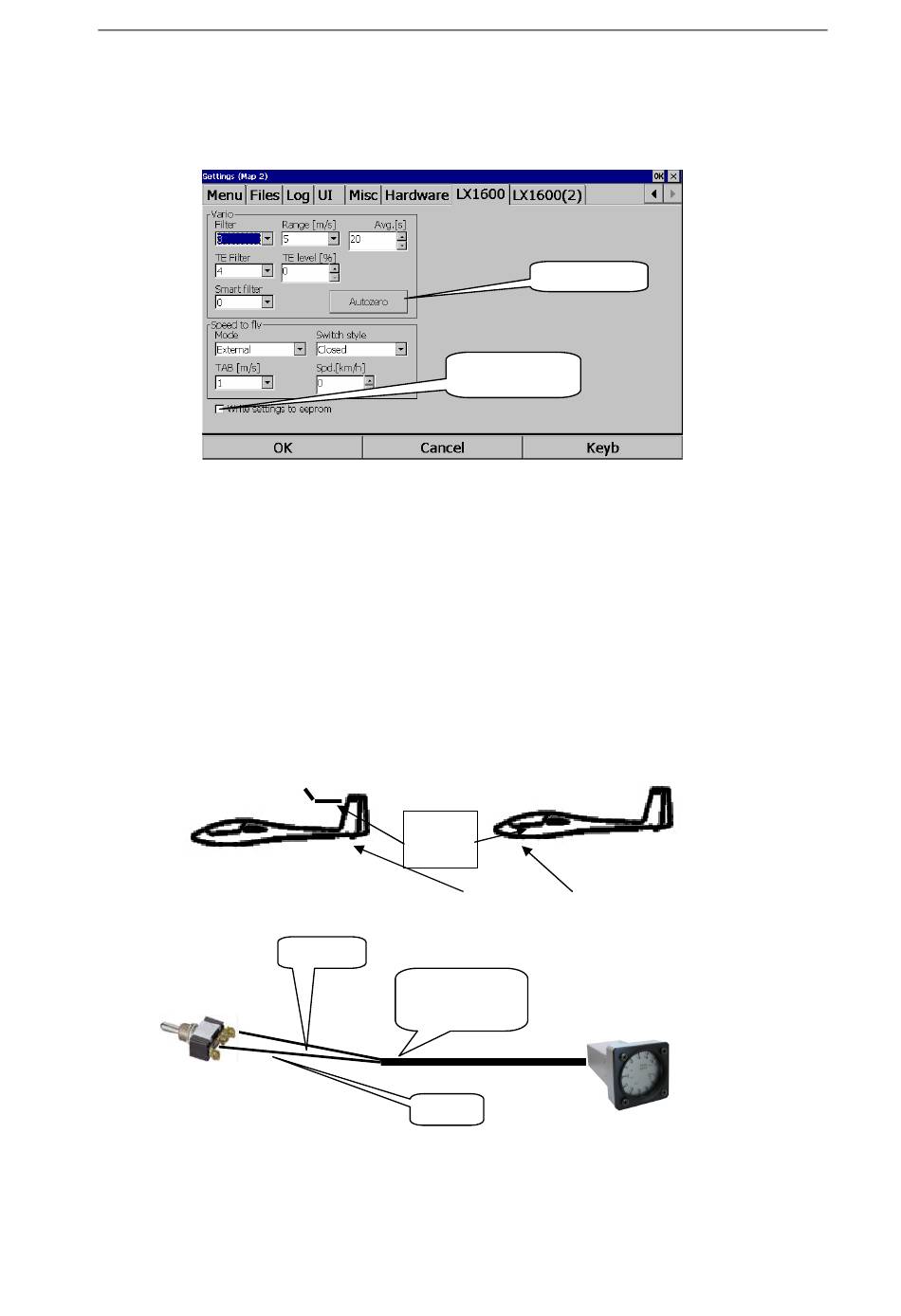

3.2.2 Setting LX 1600 (1)

This is a very important setting which defines global vario operation parameters.
Vario needle filter in steps from 1 to 10.
•
Vario range 2.5, 5 or 10 m/s or adequate in knots.
•
Averager integration time.
•
TE filter, filter of SC indicator in SC mode, no function by TE level 0% setting.
•
TE level 0% means vario compensation via TE probe and, every setting higher than 0%
•
means electrical TE compensation, default setting is 100%. During a test flight in calm atmosphere adjust
the value. In general compensation to low, increase the value and vice versa.
Smart filter is additional filter which could be added after selection of more than 0.
•
Mode defines manner of change over to SC, external means switch connected to SC wire coming out of
•
Vario unit 15 P connector. Taster variant is also possible in that case a change will happen after each press.
Switch style defines open or closed switch status to get SC.
•
TAB, defines death area of audio by SC, around zero.
•
Speed defines change over speed for SC after Auto speed was selected in Mode.
•
Additional explanations:
Connection of TE /Pst inlet by tube and by electronic TE compensation
LX Mini Map V 1.4
TE(Pst)
Wire
SC, marked
cable
Shield
External switch configuration (closed or open active)
