10.2.1.2

Advanced mounting frame

This is an extension of basic version and can be used in cases where the Mini Map won't be installed on the panel
surface. Another back mounted aluminum part is added to the basic version, where a 9P connector and a gooseneck
are mounted. As the unit is snapped in also all electric connection are done automatically. This makes possible to use
LX Mini Map in different gliders.
Landscape and also portrait orientation is possible.
There are two lengths of gooseneck available, 90 and 170 mm.
The holder comes in two parts; the base plate is a part of MM package, the back, gooseneck nut and gaskets are parts
of accessories box.

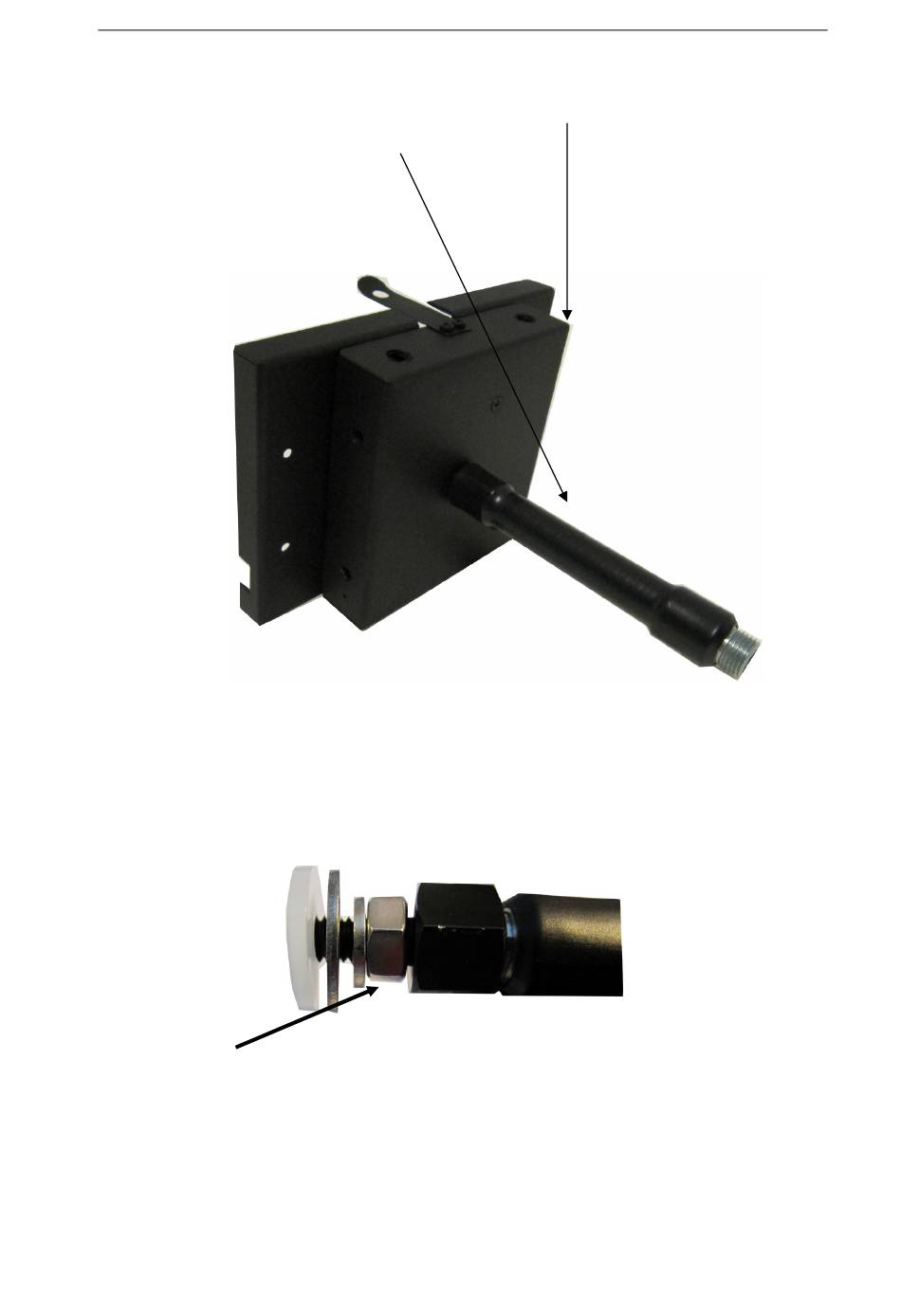

To fix the holder successfully it is necessary to respect succession of the parts, see picture below.
For finally fixation use M6 nut.
